Canterbury Aluminium Removable Bollard

Description

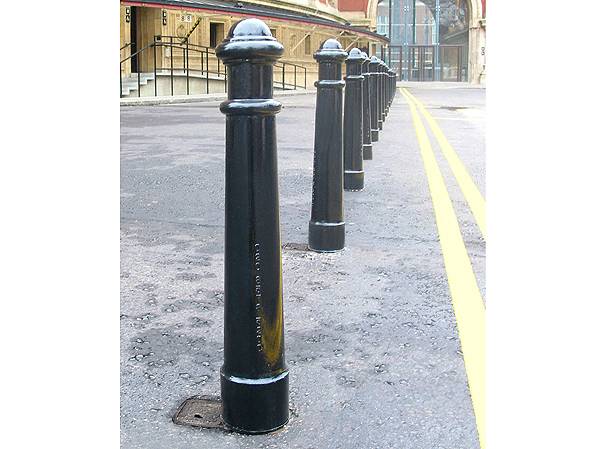

Canterbury dome topped bollards are designed for use in both traditional and contemporary settings. Canterbury aluminium removable bollard can be housed in either a hinged steel socket (to be secured with a padlock) or the F1 socket, which provides a flat, flush finish when not in use.

General information

Specification data - Aluminium alloy bollards

Product Reference

CTB 930 AR

Socket

FI75

Small composite socket for 75 mm diameter bollards.

FI115

Large composite socket for 115 mm diameter.

SOCKSS

Small steel socket for bollards under 170 mm diameter.

SOCKLS

Large steel socket for bollards of at least 170 mm diameter.

Accessories

None

CHNS

Steel spiked chain link, galvanized.

CHNP

Steel plain chain link, galvanized.

EBAB

Steel M10 eye bolt, bright zinc plated.

SLNK

Steel split link, galvanized.

TAPE C

Red/ white chevron reflective tape.

TAPE R

Red reflective tape.

TAPE W

White reflective tape.

TAPE Y

Yellow reflective tape.

Standard product features

Technical characteristics:

  • Above ground: 900 mm.
  • Below ground: 320 mm.
  • Diameter: 120 mm.
  • Weight: 18 kg.
  • Fixing: Removable.

Product Options

Socket:

  • Standard steel socket hinge plate for locking with an FB14 padlock or similar.
  • F1 series sockets can accommodate standard size circular bollards, or the bollards can include a welded on circular spigot for large diameter circular bollards and other shapes, such as square.
