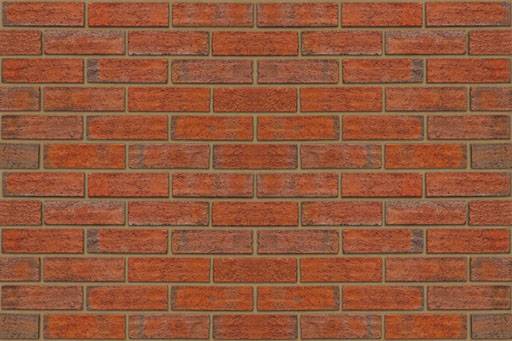

Calderstone Russett - Clay Bricks
Verified by manufacturer 3 months ago
Dragfaced facing brick. Manufactured to BS EN77-1.
Application
Brickwork applications.
Description
Dragfaced facing brick. Manufactured to BS EN77-1.
General information
Color | Red |
Finish | Dragfaced |
Material | Clay |
Shape | Rectangle |
Length | 215 mm |
Width | 102 mm |
Height | 65 mm |
Uniclass | |
CAWS | Q10/130 Clay brick Q10/20 Clay brick F10/110 Clay facing brickwork |
Specification data - Clay bricks
Standard | To BS EN 771-1. |
Brick description | Facing brick. |
Work size (length x width x height) | 215 x 102 x 65 mm. |
Tolerances | |
Mean value | T2. |
Range | R1. |
Compressive strength | |
Mean compressive strength (minimum) | 60 N/mm². |
Category | I. |
Durability designation | F2 S2. |
Density | |
Gross dry | 1440 kg/m³. |
Water absorption | 5%. |
Configuration | Vertically perforated. |
Thermal conductivity | 1.16 W/mK. |
Water vapour permeability | 50/100 µ. |
Bond strength | 0.15 N/mm². |
Reaction to fire | Class A1. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Clay |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
