BX316 – 4 Channel 16 Sensor Gas Detection Controller

BX316 – 4 Channel 16 Sensor Gas Detection Controller

Duomo (UK) Ltd

The Duomo BX316-XP is a gas detector controller for up to 16 separate toxic or explosive gas sensors.

Jump to:
+44 (0)1905 797989 www.duomo.co.uk

Application

Suitable for underground car parks, industrial applications and civil use to detect the presence of toxic and explosive gases.

Description

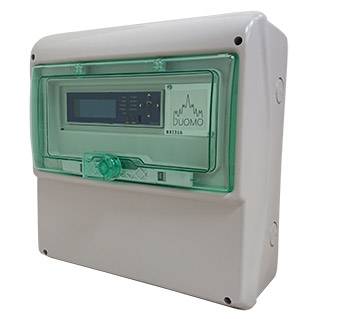

The Duomo BX316-XP is a gas detector controller for up to 16 separate toxic or explosive gas sensors. This gas detector is available as an enclosed item IP65 or as a DIN rail mounted module.

General information

Material

ABS plastic

Polycarbonate

Glass

Copper

Steel

Shape

Rectangular

Size

330.5 x 145 x 330 mm

WarrantyDescription

3 years

Uniclass 2015

Pr_75_50_18_33 Gas detection control panelsPrimary

Specification data - Gas detection control panels Enhanced data

Standards

-

General requirements

EN 61010-1, EN 50270, EN 50271, EN 45544-3, EN 60079-29-1, EN 50104

Performance requirements

Equipment for the detection and measurement of oxygen concentration in gas mixtures to BS EN 50104.

Apparatus used for general gas detection to BS EN 45544-3.

Detectors for flammable gasses to BS EN 60079-29-1.

Ingress protection (minimum)

To BS EN 60529, IP65.

Nominal voltage

230 V a.c.

Nominal frequency

50 Hz.

Controls

-

Display type

Integral backlit alphanumeric LCD display indicating all functions and status in text.

Display the following information

In normal operating condition the LCD display also shows the brand and the serial number, date and time, and warm up on display appears the “count-down” time.

Concentration units % LEL.

Concentration units ppm.

The probe being monitored.

Chart of the amount of gas detected.

Event log

Recording of 50 events including alarm, fault or user change to system. Each event to be dated and timed.

Battery backup capacity

2.2 Ah.

Outputs

Digital SPDT

Digital SPST

Mounting method

Suitable for wall.

Digital objects

Platform Compatible Version Certified to
IFC
-

1

2.1
Revit
-

1

2.1
Download now from NBS National BIM Library

Literature

BX316 Datasheet

BX316 Datasheet
