Burntwood Canopy

Verified by manufacturer 3 months ago

BXMW/BURNT

Broxap Ltd

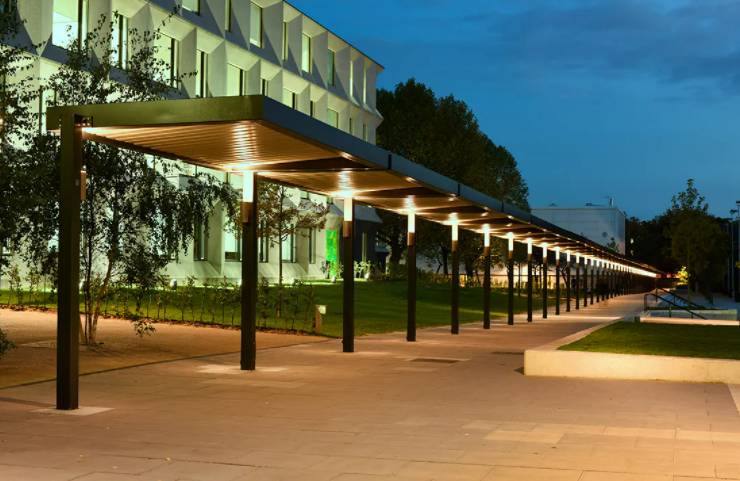

A canopy of cantilever design for multiple uses.

Jump to:
+44 (0)1782 571700 www.broxap.com

Application

Cycle shelter

Description

A Contemporary modular Cycle Shelter, the Burntwood offers a stylish alternative to the PETg and Polycarbonate shelters.


Integral guttering offers built in rainwater management. While roof cladding constructed of pre-finished steel offers a robust design which also offers vandal resistant properties, while maintaining an appealing, eye catching finish.


Features and benefits:

  • Powder coating to a wide range of colours
  • LED or Solar Lighting
  • Full Installation Service
  • Varied range of Cycle Racks
  • Varied range of Cycle Stands
  • Robust modular construction
  • Welded end frames and pulin section made from heavy-duty box section assembled with anti-tamper high strength bolts
  • Anti-climb end frames
  • Submerged baseplates
  • Hot Dipped Galvanized to BS EN ISO 1461:2009
  • Trapezoidal Roof Cladding
  • BREEAM Compliant Configurations
  • Capacity: 4100 mm - ten cycles.

General information

Color

Black

Blue

Green

Grey

Red

Show more

Finish

Galvanized

Primed

Powder-coated

Material

Steel

Polycarbonate

Length

4100 mm

5000 mm

Width

2200 mm

Height

2200 mm

Uniclass

Pr_20_65_78_58 Open sided sheltersPrimary

CAWS

B91/330 Canopy

B91/385 Shelter

Specification data - Open-sided shelters

Shelter description

Burntwood Canopy

Dimensions

-

Plan size

4100 x 2200 mm

5000 x 2200 mm

Height

2200 mm.

Frame

-

Finish

Galvanized

Polyester Powder Coated

Zinc Rich Primer

Colour

Cobalt Blue RAL 5013

Goose Grey BS 4800 00-A-05

Holly Green BS 4800 14-C-39

Jet Black RAL 9005

Nimbus Grey BS 4800 10 A 07

Sky Blue RAL 5015

Traffic Red RAL 3020

Traffic White RAL 9016

Traffic Yellow RAL 1023

Anthracite Grey RAL 7016

Roof covering

16 mm Multiwall Clear.

16 mm Multiwall Opal.

16 mm Multiwall Amber.

Trapezoidal profile 1000/32.

Rainwater drainage

Channel Guttering.

Accessories

Surface baseplates.

Submerged Baseplates.

Digital objects

Platform Compatible Version Certified to
Revit
-

1

2.1
IFC
-

1

2.1
Download now from NBS National BIM Library

Literature

Burntwood Canopy Specification Sheet

Burntwood Canopy Specification Sheet

Case studies

Green Ridge Primary Academy, Aylesbury

Green Ridge Primary Academy, Aylesbury
