Built-in Washer-Dryer
Verified by manufacturer 5 months ago
Built-in washer dryer with waterPerfect load detection for water-saving laundry care.
Application
For domestic applications.
Description

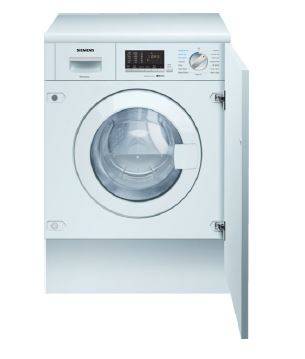

Built-in washing machine, 7/4 kg capacity.
Features and benefits:
- autoDry: gentle, precise drying that saves energy.
- speedPack M: speed up programmes, or wash in just 15 minutes.
- Outdoor – gentle cleaning for water-repellent fabrics, seams and membranes.
- High load capacity for wash loads up to 7 kg and dry loads up to 4 kg.
- aquaStop®: Siemens home appliances’ warranty in case of water damage – throughout the lifetime of the appliance.
Model:
- WK14D543GB: 7 kg/4 kg, 1400 rpm, time delay/time remaining, sensor drying, large display, white door.
General information
Color | White |
Material | Metal |
Shape | Rectangle |
Length | 584 mm |
Width | 595 mm |
Height | 820 mm |
Warranty description | Two year Guidance for specification option: Siemens home appliances’ warranty in case of water damage – throughout the lifetime of the appliance. |
Uniclass | |
CAWS | N11/360 Appliances N11/40 Appliances |
Specification data - Laundry washer-dryers
Washing capacity | 7 kg. |
Drying capacity | 4 kg. |
Arrangement | Integrated. |
Material and finish | White-coated steel. |
Dimensions | |
Width (maximum) | 595 mm. |
Depth (maximum) | 584 mm. |
Height (maximum) | 820 mm. |
Programmes | Special programmes: easy-care, night wash, mixed fabrics, sportswear, rapid 15 minute quick wash, rinse/spin, fluff clean, drain / spin, hygiene, wool/handwash, delicates/silk. |
Spin speed (maximum) | 1400 rpm. |
Water supply | Cold fill. |
EU energy label rating (minimum) | E/E. |
Sound level (maximum) | 72 dB(A) re 1 pW. |
Features | Digital display. |
Electrical supply | 220–240 V. |
Frequency | 50 Hz. |
Fuse rating | 10 A. |
Rating | 2.3 kW. |
Accessories | Not required. WZ10130: Extension for cold water inlet /Aquastop. WX975600: Floor securing component. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
iQ500, Washer dryer, 7/4 kg WK14D543GB
