BSEN Class 3 Slim Screw down Steel Encapsulated Panel

Application

Access floor panel, designed to be overlaid with finishes such as loose-laid carpet tile.

Description

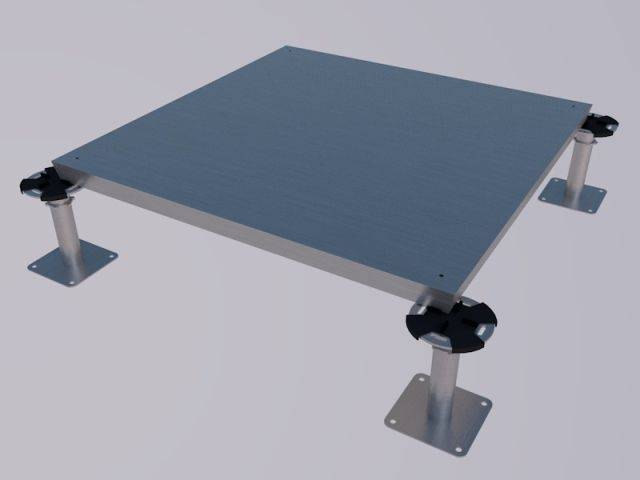

Screw-down slim panel, consisting of a high-grade, FSC®-certified, 26 mm-thick, high-density particle board core with a steel top lid and bottom tray, all pressed together to make a fully steel encapsulated 600 mm² panel. The panel has been tested to the BS EN 12825:2001 3/A/3/2 specification and is fully compliant.

Features and benefits:

  • FSC®-certified.
  • Includes pre-drilled holes for screw-fixing with complete electrical continuity.
  • Provides added stability and security as the void is inaccessible without specialist tools.
  • Dimensionally accurate.
  • High resistance to damage.
  • Manufactured in the UK.

Application:

Access floor panel, designed to be overlaid with finishes such as loose-laid carpet tile.

General information

Finish

Galvanized

Material

Casing: steel top lid and bottom tray

Core: high-density particle board

Shape

Square

Size

600 x 600 x 26 mm (w x l x h)

WarrantyDescription

25 years

Uniclass 2015

Pr_25_71_42_70 Raised access floor panelsPrimary

CAWS

K41/315 Floor panels

Specification data - Raised access floor panels

Product Reference

BG3SL

Standard product features

Colour:

Natural.

Finish:

Galvanized.

Material:

  • Casing: steel top lid and bottom tray.
  • Core: high-density particle board.

Shape:

Square.

Size:

600 x 600 x 26 mm (w x l x h).

Warranty description:

25 years.

Weight (maximum):

32 kg/m².

Panel fixing:

Screw-fixed.

Classification (to BS EN 12825:2001):

3/A/3/2.

Panel grade:

Class 3.

Working load safety factor:

3 x.

Uniform distributed load:

>8 kN/m².

Surface spread of flame:

Class 0.
