BSEN Class 1 Bare Wood Panel - Raised Access Floor Panel

Verified by manufacturer 6 months ago

Bathgate Flooring Ltd Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Raised Access Flooring. Gravity-laid bare panel.

Jump to:
BIM object icon
+44 (0) 1432 347700 Website

Application

Internal, Commercial, Office.

Suitable for:

  • Light-traffic areas where access to the underfloor void is required but costs are prohibitive.
  • To be overlaid with finishes such as loose-laid carpet tile.

Description

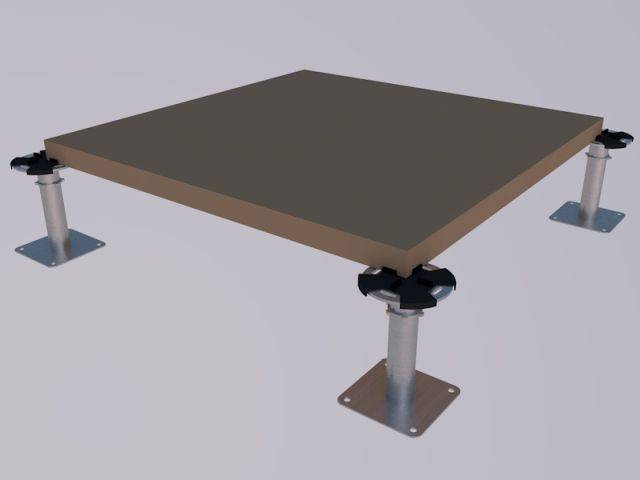

Gravity-laid panel, consisting of a high-grade, FSC® certified, 30 mm thick, high-density particle board core with a square edge profile. 598 mm² panel, producing a fully accessible system at an economic cost.

The panel has been fully tested to the BS EN 12825:2001 1/A/3/2 specification and is fully compliant.


Features and benefits:

  • FSC® certified.
  • Manufactured in the UK.

General information

Color

Other

Finish

Natural

Material

Particleboard

Guidance for specification option:

High-density particle board.

Shape

Square

Length

598 mm

Width

598 mm

Height

30 mm

Warranty description

Five year

Uniclass

Pr_25_71_42_70 Raised access floor panelsPrimary

CAWS

K41/130 Raised access floor

K41/130 Raised access floor

K41/315 Floor panels

K41/315 Floor panels

Specification data - Raised access floor panels

Core

HD particleboard.

Edging

Square edge.

Panel size

598 x 598 x 30 mm.

Manufacturer guidance

Width x length x height.

Dimensional deviations

To BS EN 12825 Class 1.

Guidance for specification option:

1/A/3/2.

Weight (maximum)

22 kg/m².

Panel fixing

Gravity laid.

Colour

Natural.

Loading

Working load safety factor: 3x; Uniform distributed load: >4 kN/m².

SurfaceSpreadOfFlame

Class 0.

Sustainability data

Country of product manufacture

United Kingdom

Recyclability

100

BIM objects

BIM object icon

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit
-

1

Third party certifications

QA Certificate

QA Certificate

FSC®: Certified
