BSEN 12825:2001 - Screwdown Steel Encapsulated Panel

BSEN 12825:2001 - Screwdown Steel Encapsulated Panel

Bathgate Flooring Ltd

BG systems feature screwdown flooring panels that are fully tested to the requirements of the European Standard for raised access floors BS EN 12825.

Jump to:
+44 (0) 1432 347700 www.bathgateflooring.co.uk

Application

Suitable:

  • For all types of general commercial office applications.
  • To be overlaid with finishes such as loose laid carpet tile.

Description

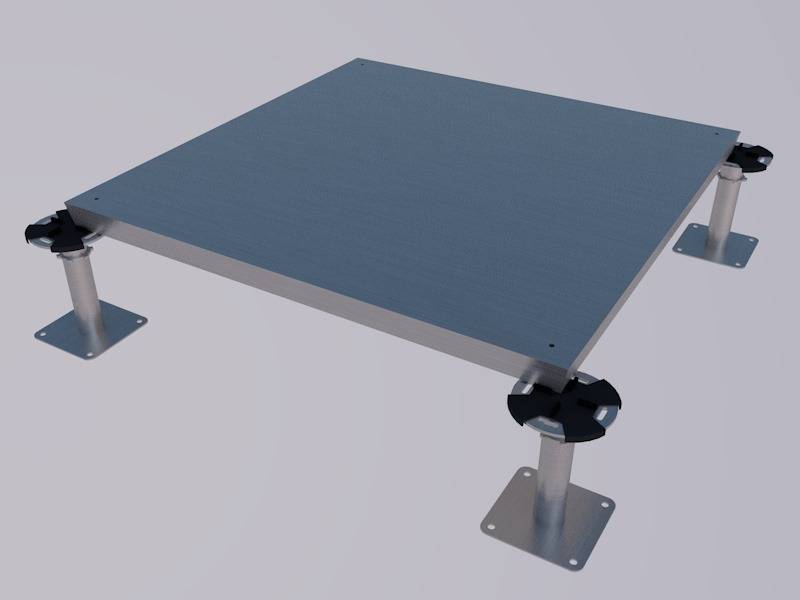

BG systems feature screwdown flooring panels that are fully tested to the requirements of the European Standard for raised access floors BS EN 12825. Precision engineered steel-encapsulated panels with a high-performance particle board core.


The core is wrapped and laminated with a galvanised steel top lid and bottom tray sheet all pressed together to make a fully steel encapsulated panel for greater strength.

The BG Screwdown panel allows for extra structural stability whilst still allowing easy panel removal and replacement.

The system provides full electrical continuity and static dispersion where required and also offers a reduced slim 26 mm panel. (BG3LS)


Features and benefits:

  • FSC® certified.
  • Predrilled holes to be screw fixed with complete electrical continuity.
  • Provides added stability and security as the void is inaccessible without specialist tools.
  • Dimensionally accurate.
  • High resistance to damage.


More products in collection:

  • BG3 & BG3LS (8 kN ultimate loading) is ideal for general office use without heavy equipment.
  • BG5S (10 kN ultimate loading) and BG6S (12 kN ultimate loading) are both ideal for general office use.
  • BSEN 12825:2001 - Screwdown Steel Encapsulated Panel.
  • BSEN BG3S Screwdown Steel Encapsulated Panel.
  • BSEN BG3LS Screwdown Steel Encapsulated Panel.
  • BSEN BG5S Screwdown Steel Encapsulated Panel.
  • BSEN BG6S Screwdown Steel Encapsulated Panel.

General information

Shape

Square

Finish

Galvanized

Material

Steel

Top lid and bottom tray.

HDP

High-density particle board - Core.

Size

Width x length x height.

600 x 600 x 31 mm

600 x 600 x 32 mm

Uniclass

Pr_25_71_42_70 Raised access floor panelsPrimary

CAWS

K41/130 Raised access floor

K41/130 Raised access floor

K41/315 Floor panels

K41/315 Floor panels

Specification data - Raised access floor panels Enhanced data

Casing

-

Material

Steel.

Factory finishes

Galvanized.

Core

HD particleboard.

Panel size

Width x length x height.

600 x 600 x 31 mm.

600 x 600 x 32 mm.

Dimensional deviations

To BS EN 12825.

Panel fixing

Screw fixed.

Colour

Natural.

Accessories

Not required.

Slim 26 mm panel - BG3LS.

Digital objects

Platform Compatible Version Certified to
Revit
-

2

2.1
IFC
-

2

2.1
Download now from NBS National BIM Library
