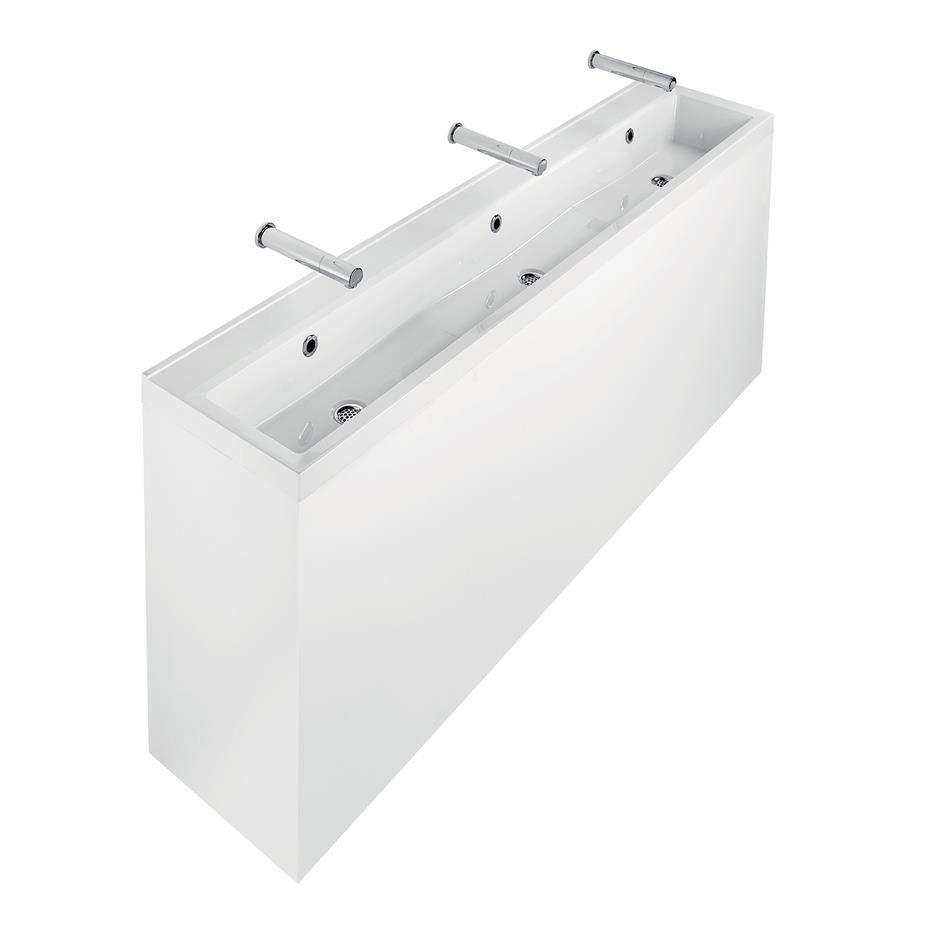

Broadway Washing Trough

Broadway Washing Trough

Armitage Shanks

Broadway Washing Troughs suitable for commercial use in service stations, offices and education or wherever multiple washing facilities are required.

Jump to:
+44 (0)870 122 8822 www.idealspec.co.uk

Description

Broadway washing trough 180cm long, undrilled for panel mounted taps or may be drilled at the pre-marked drilling points, complete with Chromium plated wastes

  • Commercial use
  • 3 or 2 position troughs
  • Vanity unit mounting

General information

Finish

Chrome - (AA)

Neutral / No Finish - (67)

Ultra Steel - (GN)

White - (01)

Color

White

Features

3 person trough

4 person trough

Material

Vitreous china

Shape

Rectangular

Size

1800 x 400 x 155 mm

2400 x 400 x 155 mm

1200 x 400 x 155 mm

WarrantyDescription

Manufacturers warranty

Uniclass 2015

Pr_40_20_96_99 Wash troughsPrimary

Product range

Wash Troughs / Solid Surface

Specification data - Wash troughs

Product Reference

S2099 - Broadway 120/180/240cm Washing Trough

Broadway Washing Trough, 180cm

S2098 - Broadway 120/180/240cm Washing Trough

Broadway Washing Trough, 120cm Undrilled

S2105 - Broadway 120/180/240cm Washing Trough

Broadway Washing Trough, 240cm

Finish

Chrome - (AA)

Neutral / No Finish - (67)

Ultra Steel - (GN)

White - (01)

Standard product features

Trough Sink:

  • Weight: 40.00 kg

Brassware:

  • Material: Chrome Plated Brass
  • Weight: 2.30 kg
  • Flowrate: 3.70 lpm @ 3bar

Trap:

  • Material: Plastic
  • Weight: 0.33 kg

Product Options

Washing trough fits to framing or cabinet using M6 screws (not supplied)

Digital objects

Platform Compatible Version Certified to
Revit

Revit 2013

1

1.2
Download now from NBS National BIM Library
