Brighton Double Two Tier Bike Shelter

Brighton Double Two Tier Bike Shelter

Cyclepods Ltd

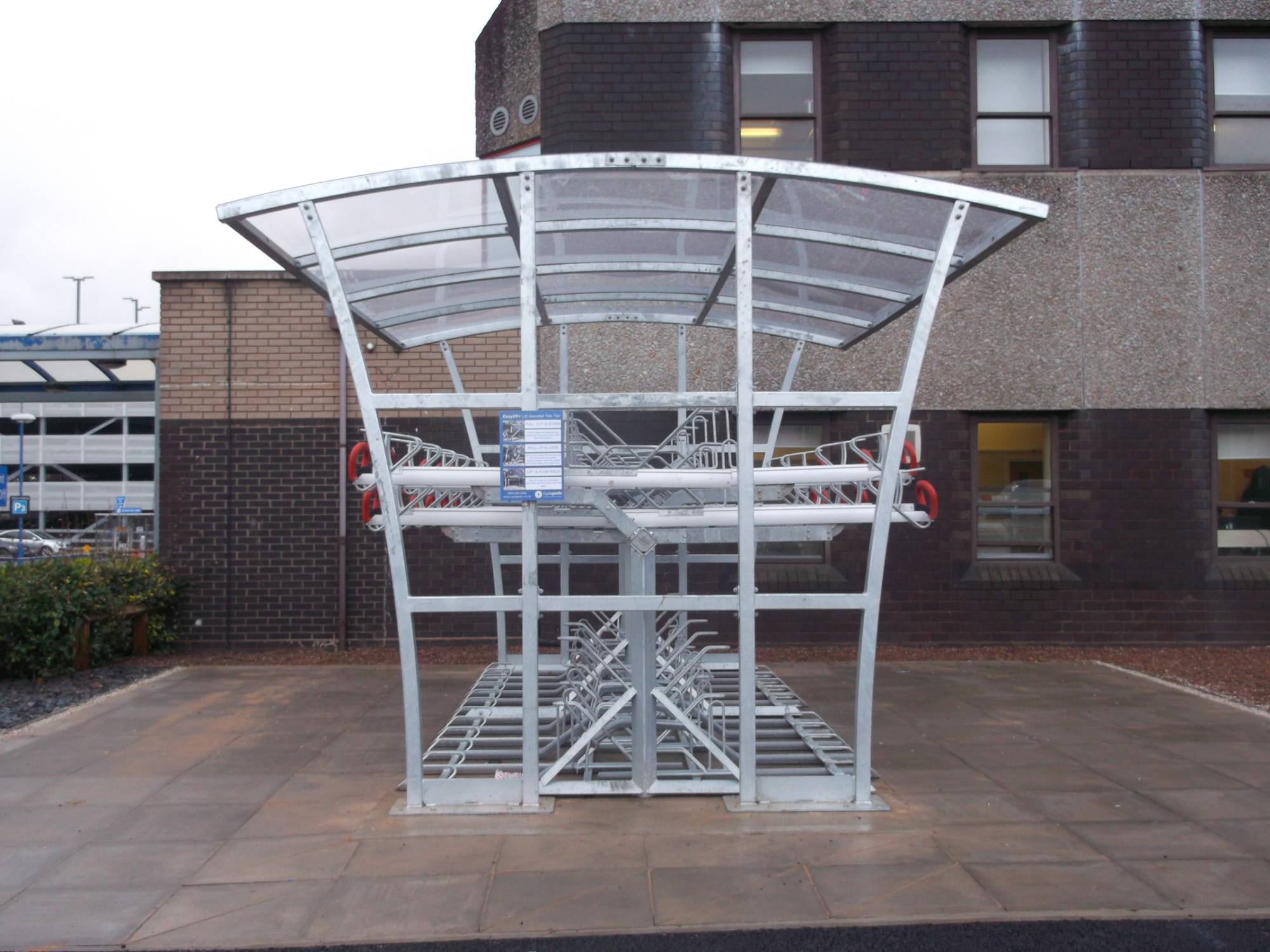

The Brighton two tier cycle shelter is a stylish and versatile two tier shelter; units can be added to form a larger shelter.

Jump to:
+44 (0)1959 546046 www.cyclepods.co.uk
Application

For shelter, suitable for use in various public locations and open spaces.

Description

Two tier, double-sided shelter with curved roof, designed for use in conjunction with cycle stands.

Features and benefits:

  • Large enough to store up to 48 bikes using two tier cycle racks.
  • Modular design, which can be extended as required to suit project requirements.
  • Constructed with box section steel.
  • Structurally engineered to ensure safe loadings.
  • The hollow construction allows lighting and CCTV cables to run within the shelter legs to the underside of the roof.
  • A single-sided variant is available, consult manufacturer for details.
  • BREEAM and Code for Sustainable Homes compliant. Can help contribute towards gaining ENE8 Cycle Storage Credits when used in the appropriate situation, under the Code for Sustainable Homes.
  • Integrated roof option.
  • Curved roof.
  • Extensions available at any length.

Application:

For shelter, suitable for use in various public locations and open spaces.

General information
Finish

Galvanized

Standard.

Galvanized and polyester powder-coated

Insert requirements.

Features

Integrated roof option, curved roof, extensions available at any length

Material

Aluminium, plastic, steel

Size

3924 x 2770 x 3063 mm

3924 x 3670 x 3063 mm

3924 x5000 x 3063 mm

3924 x 2020 x 3063 mm

3924 x4270 x 3063 mm

Uniclass 2015
Pr_20_65_78_58 Open sided sheltersPrimary
CAWS

B91/340 Cycle shelter

Specification data - Open sided shelters
Product Reference

Brighton Two Tier Shelter Double Sided

Shelter description

Double sided two tier bike shelter

Plan size

5230 x 3925 mm

Height

3081 mm

Frame -
FrameMaterial

Aluminium

Colour

Galvanized steel

Roof covering

Alupanel, 4 mm

White to the underside to help reflect light.

Openings -
Doors

Open sided shelter

Windows

Open sided shelter

Rainwater drainage

Not required

Integrated gutter option available

Accessories

Not required

Aluminium fixing straps

Solar panels

LED lighting

CCTV

Configuration

Insert requirements.

Finish

Galvanized

Standard.

Galvanized and polyester powder-coated

Insert requirements.

Fixing -
Fixing type

Aluminium

Galvanized steel

Fixing method

Root fixed

Surface fixed

Standard product features

Colour:

Galvanized as standard, powder coating available.

Features:

Large enough to store up to 48 bikes using two tier cycle racks, modular design constructed with box section steel, structurally engineered and the hollow construction allows lighting and CCTV cables to run within the shelter legs to the underside of the roof. BREEAM and Code for Sustainable Homes compliant and can help contribute towards gaining ENE8 Cycle Storage Credits when used in the appropriate situation, under the Code for Sustainable Homes. Has an integrated roof option, curved roof and extensions available at any length.

Finish:

Galvanized as standard, powder coating available.

Material:

Box section is made of galvanized steel, finished to BS EN ISO 1461. Fixing straps are aluminium, end caps are plastic nuts are nyloc and fixings are bright zinc plated (BZP). The roof is a powder coated aluminium composite panel.

Shape:

Curved roof shelter.

Size:

5230 x 3081 x 3925 mm.

Warranty description:

5 year warranty.

Recyclability:

Frame and components made from widely recyclable materials.

Country of origin:

United Kingdom.

Environmental information
Recyclability

Frame and components made from widely recyclable materials
