Brick cavity wall with wood frame, particleboard, insulation and plasterboard lining on metal furrings

Verified by manufacturer 3 months ago

NBS

Brick cavity wall with wood frame, particleboard, insulation and plasterboard lining on metal furrings.

Jump to:
+44 (0)345 4569594 Website

Description

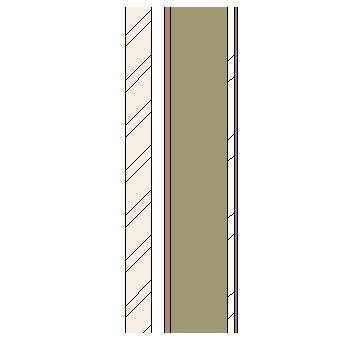

Framed wall system comprising: 102.5 mm clay brick, 50 mm cavity, 22 mm cement bonded particleboard, 225 mm insulated wood frame, 25 mm metal furrings and 12.5 mm gypsum plasterboard lining.

BIM objects

Platform Compatible Version
Revit

Revit 2013

2

IFC

IFC2X3

1
