Verified by manufacturer 3 months ago
BRE1212 - Straight
EPD
Certificate type
ISO 14001 Environmental Management Systems
Certificate type
ISO 45001 Health and Safety Management
Certificate type
ISO 9001 Quality Management
Certificate type
Made in Britain
Certificate type
Acoustic ceiling baffles.
Suitable for all commercial interiors including offices and co-working spaces.

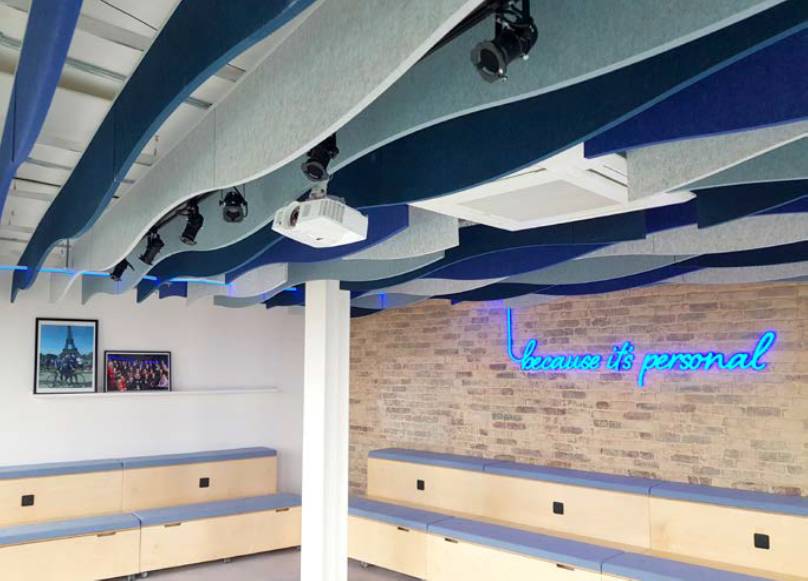

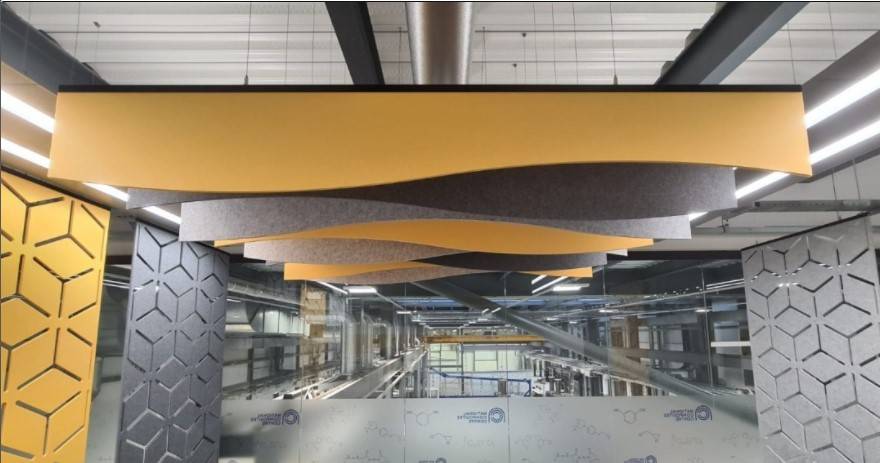

Ceiling baffles are a particularly suitable solution to manage reverberation across large open-plan spaces, creating a more comfortable acoustic environment. The acoustic ceiling baffles are designed to be suspended vertically and come in a range of shapes, sizes and colours to suit any design and complement client branding.
Installation options
Features and benefits:
Color | Beige Black Blue Brown Green |
Material | Polyester fibre (PET) |
Shape | Rectangle |
Length | 1200 mm 1600 mm 2000 mm 2400 mm |
Height | 100 mm 200 mm 300 mm 350 mm |
Warranty description | Five year |
Uniclass | |
CAWS | K45/160 Board-suspended ceiling system alterations K45/120 Existing suspended ceiling system K45/12 Existing suspended ceiling system K40/265 Infill units K40/115 Unit/ modular suspended ceiling system K40/105 Suspended ceiling system K40/10 Unit/ modular suspended ceilings |
System performance | Reaction to fire: To EN 13501-1:2007+a1:2009, B-s1, d0. To ASTM E84 -16, Class A |
Ceiling support | SUSKIT Suspension kits.2000 mm wire. SUSCC Ceiling grid clip.To fit 25 mm ceiling grid. |
Ceiling units | Suspended ceiling baffles, straight, with powder coated aluminium channel. |
System accessories | None.CHANP-24-Aluminium channel, primary/connection.CHANAC-Aluminium connector.CHANSP-Spanner for tightening connector.CHANC-Channel connector (end to end). |
Channel colour | Black. White. |
Colour(Baffle colour) | Rosella red. Rosella red fleck. Oriole orange. Oriole orange fleck. Flamingo pink. |
Dimensions | 1200 x 300 x 12 mm. |
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 0.45 kg CO₂ eq/kg |
RecyclabilityRecyclable at end of life. | PET is 100% recycleable at end of life |
Recycled content | 60 % Made from 60% recycled PET. |
NBS BIM object standard
This BIM object has been authored to meet the requirements of the NBS BIM object standard.
Find out more about the NBS BIM object standard.
