Brass Floor Cover Plates

Verified by manufacturer 5 months ago

BC38 SF

CAT (Carpet Accessory Trims) Limited Variant:
Third party certifications:
  • Made in Britain

    Made in Britain

    Certificate type

Cover plate for floor junctions.

Jump to:
+44 (0)1582 561500 Website

Application

Medium to heavy contract situations such as for use in hotels, pubs, cafes, clubs, commercial offices, shops, schools and public building, as well as for quality domestic installations.

Description

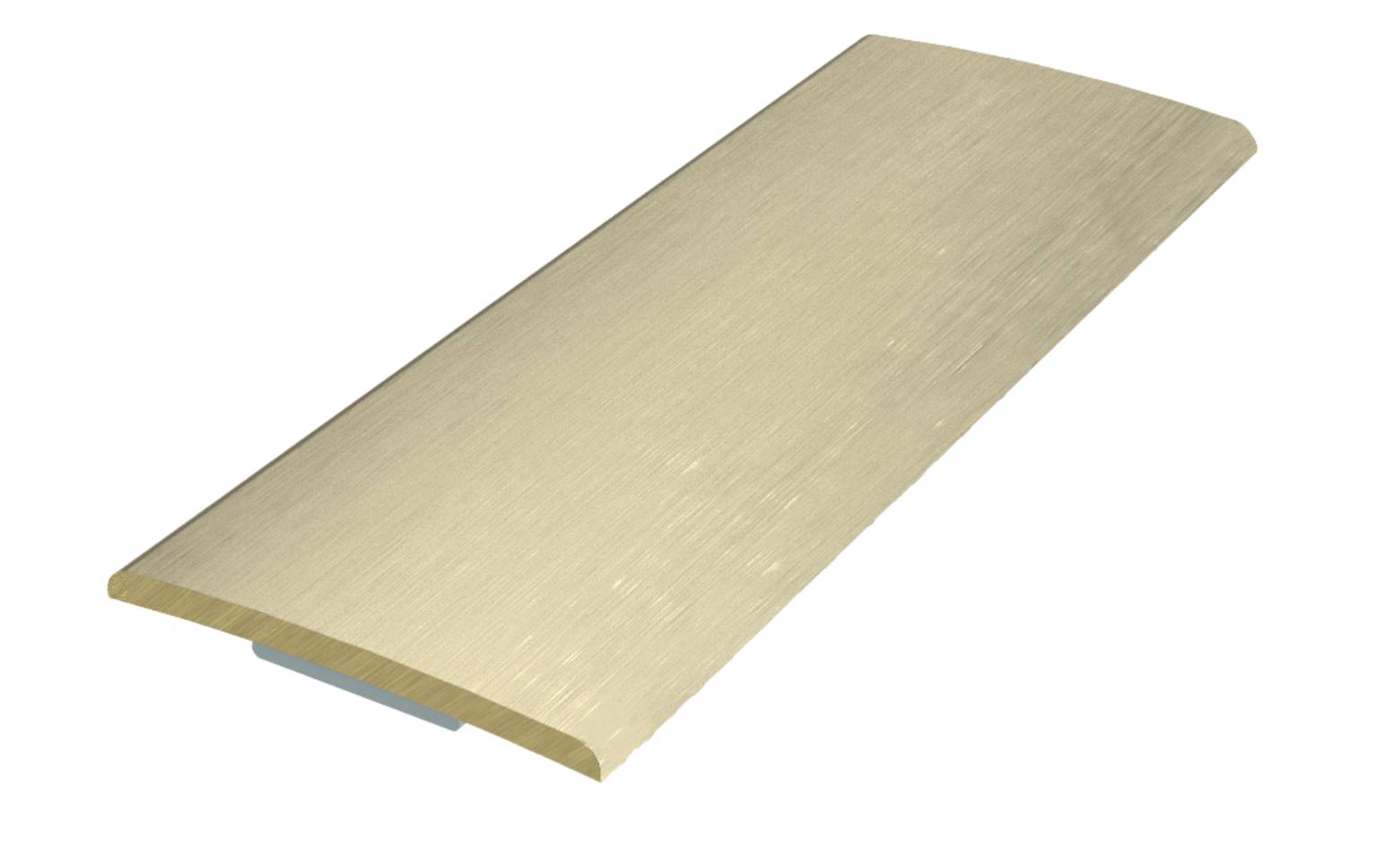

Brass Cover Plate for floor junctions at the same level to protect the edges of the flooring materials.


Features and benefits:

  • Joins two level floors with no mechanical fixings.
  • Designed for the highest quality installations.
  • Manufactured from solid brass.
  • Available in CAT's six signature finishes including Antique Bronze and Satin Chrome.

General information

Color

Bronze

Gold

Finish

Polished

Satin

Antiqued

Chrome

Material

Brass

Shape

Rectangle

Length

900 mm

1800 mm

2715 mm

1000 mm

Width

38 mm

55 mm

Height

2.5 mm

3.5 mm

Manufacturer guidance

External height.

Material

Brass

Uniclass

Pr_35_90_31_29 Floor cover stripsPrimary

CAWS

M51/510 Edgings and cover strips

M51/510 Edgings and cover strips

M50/70 Edgings and cover strips

M50/740 Edgings and cover strips

Specification data - Floor cover strips

Configuration

One part.

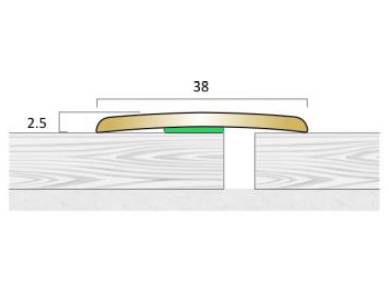

Dimensions

38 x 2.5 mm.

Manufacturer guidance

Visible surface when installed x external height.

Profile

Hard floor to hard floor.

Material

Brass.

Guidance for specification option:

Solid Brass, H/H CZ108 to BS EN 12164:2016.

Finish

Polished brass.

Satin brass.

Antique brass.

Guidance for specification option:

  • Hand finished with a variance from batch to batch.
  • Not foot-traffic resistant.
  • Designed to create an aged, unpolished effect.

Antique bronze.

Guidance for specification option:

  • Hand finished with a variance from batch to batch.
  • Not foot-traffic resistant.
  • Designed to create an aged, unpolished effect.

Chrome.

Satin chrome.

Colour

As Finish.

Length

900 mm.

1800 mm.

2715 mm.

Guidance for specification option:

Unavailable with Chrome and Satin Chrome finishes.

Pre-drilled holes

Undrilled with Stick Fix.

Guidance for specification option:

Standard supply.

Stick Fix double sided adhesive tape pre-applied to the underside.

Centre-drilled.

Guidance for specification option:

Optional on request.

Off-cantered drilled.

Guidance for specification option:

Optional on request.

Sustainability data

Country of material origin

Europe

Country of product manufacture

United Kingdom

Material

Brass

Recyclability

100% recyclable at suitable disposal centres

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Third party certifications

Made in Britain

Made in Britain

Made in Britain

Literature

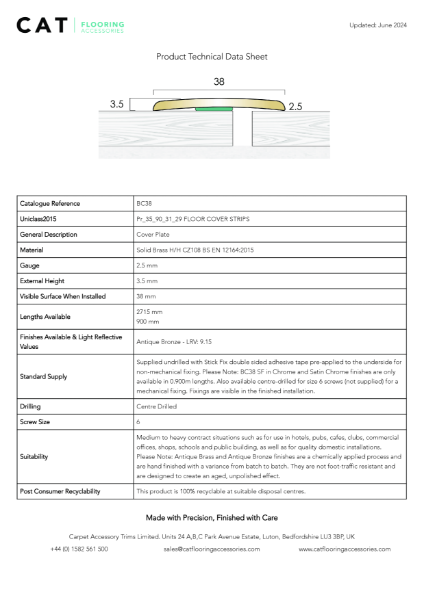

BC38 ANTIQUE BRASS TDS

BC38 ANTIQUE BRASS TDS

BC38 ANTIQUE BRONZE TDS

BC38 ANTIQUE BRONZE TDS

BC38 CHROME TDS

BC38 CHROME TDS

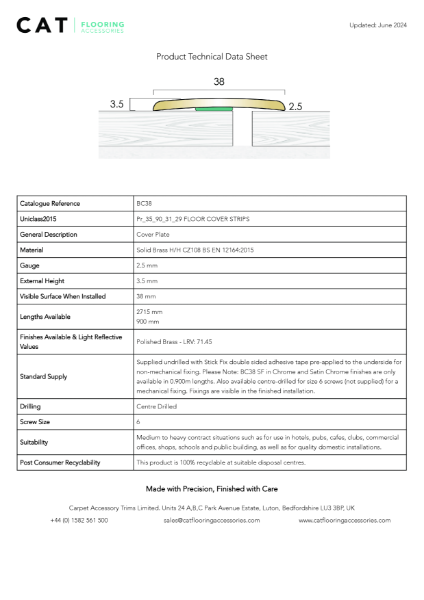

BC38 POLISHED BRASS TDS

BC38 POLISHED BRASS TDS

BC38 SATIN BRASS TDS

BC38 SATIN BRASS TDS

BC38 SATIN CHROME TDS

BC38 SATIN CHROME TDS

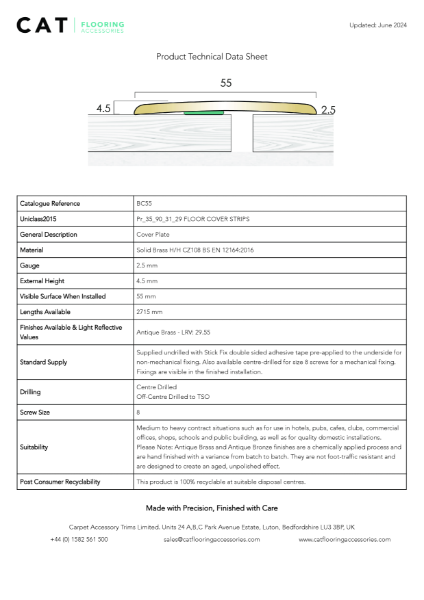

BC55 ANTIQUE BRASS TDS

BC55 ANTIQUE BRASS TDS

BC55 ANTIQUE BRONZE TDS

BC55 ANTIQUE BRONZE TDS

BC55 POLISHED BRASS TDS

BC55 POLISHED BRASS TDS

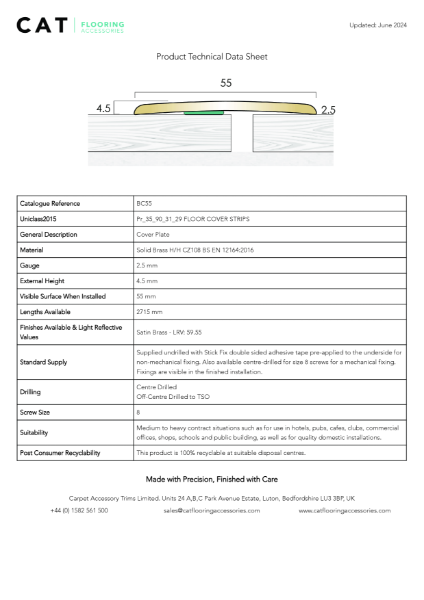

BC55 SATIN BRASS TDS
