Gripple Ltd

Electrical and mechanical services brackets.

Jump to:
+44 (0)114 275 2255 www.gripple.com
Description

Electrical and mechanical services brackets.

Low Profile Bracket (Bearer):

Low profile brackets used as a shallow bearer for the suspension of electrical and mechanical services. Can be bolted directly to soffit or wall with less than 15 mm depth for minimum service protrusion. Integrates with QT Universal Clamps or QT Compact Clamps featuring quarter turn fixing. Compatible with UniGrip, Y-Fit and Trapeze Plus Fire Rated Hangers. Available in sizes ranging from 250–1550 mm.

Low Profile Bracket (Header Rail):

Low profile brackets used as a header rail for the suspension of electrical and mechanical services. Can be bolted directly to soffit or wall with less than 15 mm depth for minimum service protrusion. Integrates with QT Universal Clamps or QT Compact Clamps featuring quarter turn fixing. Available in sizes ranging from 250–1550 mm.

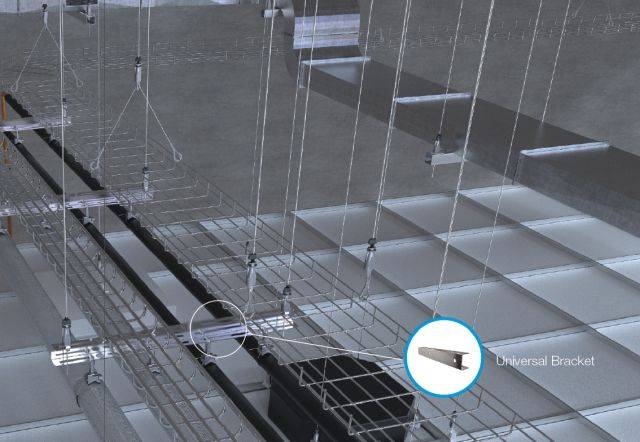

Universal Bracket:

Universal brackets designed for quick and easy support of electrical containment, pipework and other mechanical services. Can be bolted directly to soffit or wall, or suspended from the soffit using a Gripple Hanger, e.g. UniGrip QT. Integrates with QT Universal Clamp, QT Compact - Clamp, Universal Clamp, UniGrip, Y-Fit and Trapeze Plus Fire Rated Hangers. Available in sizes ranging from 240–1540 mm. Suitable for multi-service installs, e.g. electrical containment or duct work on the top side and pipework on the bottom side.

Features and benefits:

  • Pre-cut lengths eliminate the need for cutting channel on-site, allowing more productive use of labour.
  • Improved health and safety as no tools or ‘hot works’ permit required for installation.
  • 150 kg load rating.

General information
Material

Carbon steel to BS EN 10346, DX51D

Uniclass 2015
Channel supports (Pr_80_77_27_15)Primary
Specification data - Channel supports
Product Reference

Low Profile Bracket (Bearer)

15 mm height.

Low Profile Bracket (Header Rail)

15 mm height.

Universal Bracket

43 mm height.

Type

Insert requirement, many options available, consult manufacturer's literature for information.

Standard product features

Material:

Carbon steel to BS EN 10346, DX51D.

Maximum single point load:

75 kg.

Maximum uniform load:

150 kg.

Third party certifications
  • Fire tested to F120 (to BS 476-20/ DIN 4102-2)
  • Lloyds: Certified
  • Tested (Universal Bracket)
  • Apave: Tested (Universal Bracket)
