BPH100G and M Bathroom Panel Heaters
Verified by manufacturer 10 months ago

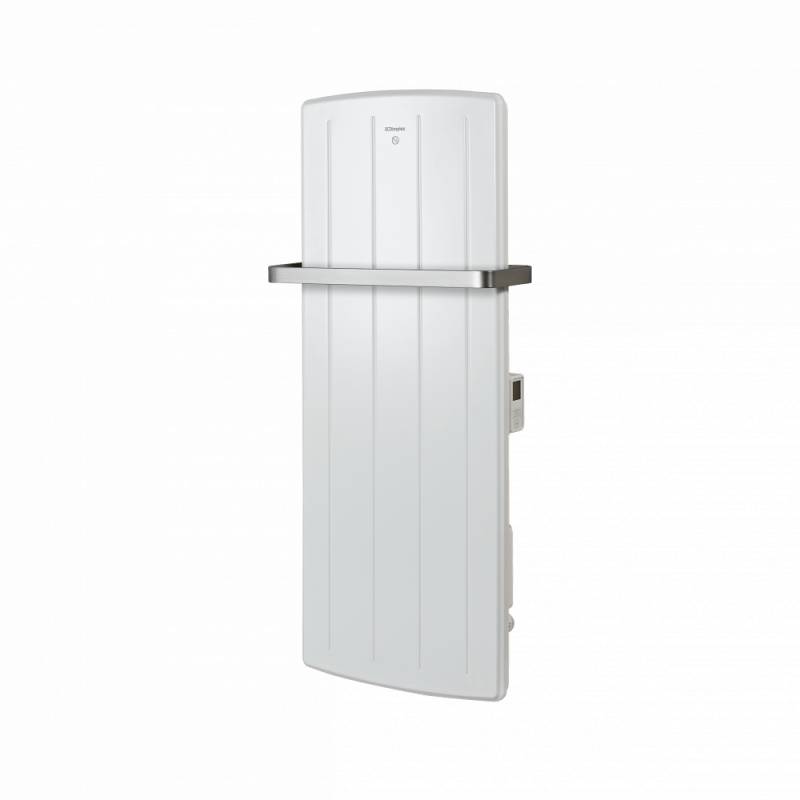

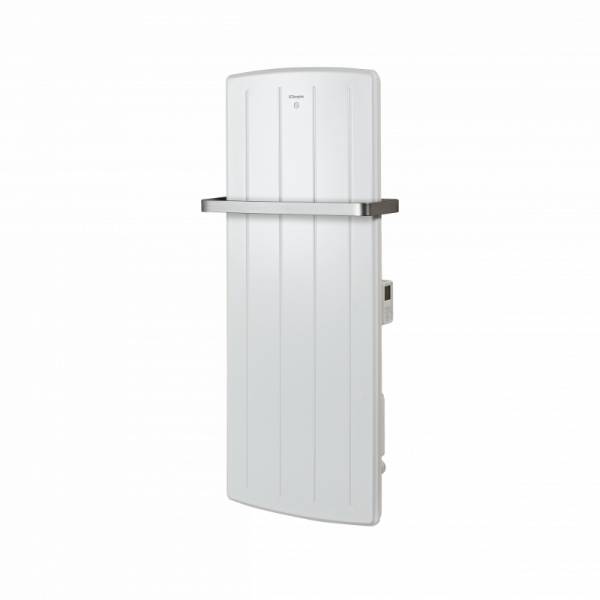

BPH100M - Metal front panel
BPH100M - Metal front panel
A bathroom heater with rails for drying and airing towels.
Application
Suitable for domestic applications.
Description
A bathroom heater which provides high-comfort convected heat and towel warming radiant heat with the added convenience of rails for drying and airing towels
Features and benefits:
- 3 in 1 design for space heating with towel drying and airing facilities.

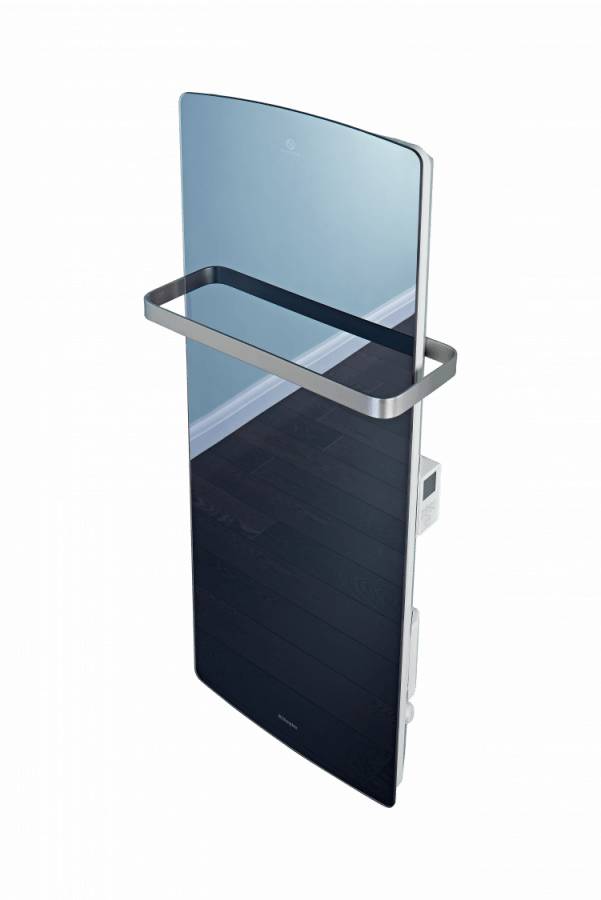

- Available with a modern metal facia or tinted mirror effect with de-misting capability.
- Customisable heating with four time and temperature settings per day.
- Adaptive start pre-heating and open window detection auto-shutdown.
- Slimline design that covers traditional panel heater fixing marks.
- Smartphone app controllable via the Dimplex Control system.
General information
Color | White |
Finish | Powder-coated Mirrored |
Material | Steel |
Shape | Rectangle |
Width | 418 mm 430 mm |
Height | 1073 mm 1100 mm |
Warranty description | Two year |
Uniclass | |
CAWS | V90/590 Equipment V90/590 Equipment T90/470 Towel warmer radiators |
Specification data - Electric heated towel rails
Third party certification | UKCA, CE and BEAB. |
Power rating | 1000 W. |
Ingress protection (minimum) | To BS EN 60529, IP25. |
Controls | Digitally controlled, electronic thermostat.Guidance for specification option: Accurate to (±0.2°C). Setpoint range (7-30°C). Timer modes: 7 Day Programmable User Timer, Out All Day, Home All Day. Continuous heat modes: Eco, Manual, Frost Protect. |
Finish | Polyester powder-coated steel, Traffic White (RAL 9016). |
Accessories | None.Dimplex Hub and Radio Frequency Module (RFM).Guidance for specification option: Required for this product to connect to the Dimplex Control system and be controlled via the Dimplex Control smartphone app. |
Heating element | Extuded aluminum plate element. Guidance for specification option: Operated via an advanced controller equipped with seasonal adjustment to prevent room temperature overshoot. |
Safety features | Thermal cutout (auto reset type) and overheat detection. |
Battery back-up | CR2032 Lithium manganese dioxide 3V coin cell battery. Guidance for specification option: To backup real time clock. Battery life >5 years. |
Supply | 1.3 m fitted, 3 core for fused spur installation, 1/N/PE-230–240V, 50 Hz Class I, with earth wire. |
Width | 430 mm. |
Sustainability data
Country of product manufacture | United Kingdom |
Literature
BPH Series B Spec Sheet
