BoxRail Aluminium Decking Support System - Decking Support System

Name: BoxRail Aluminium Decking Support System - Decking Support System
Brand: MyDek Ltd
SKU: hopNqS3URtpuKBy9uy2b5J

Verified by manufacturer 1 month ago

Box Rail BR32 & Support Foot SF04

MyDek Ltd

A height adjustable, non-combustible, aluminium support system for MyDek decking.

Jump to:

BOS

+44 3300 94 94 11 Website

Application

For use on balconies, walkways, roof terraces, podium decks, decking areas in commercial, hospitality, public realm and residential applications.

Description

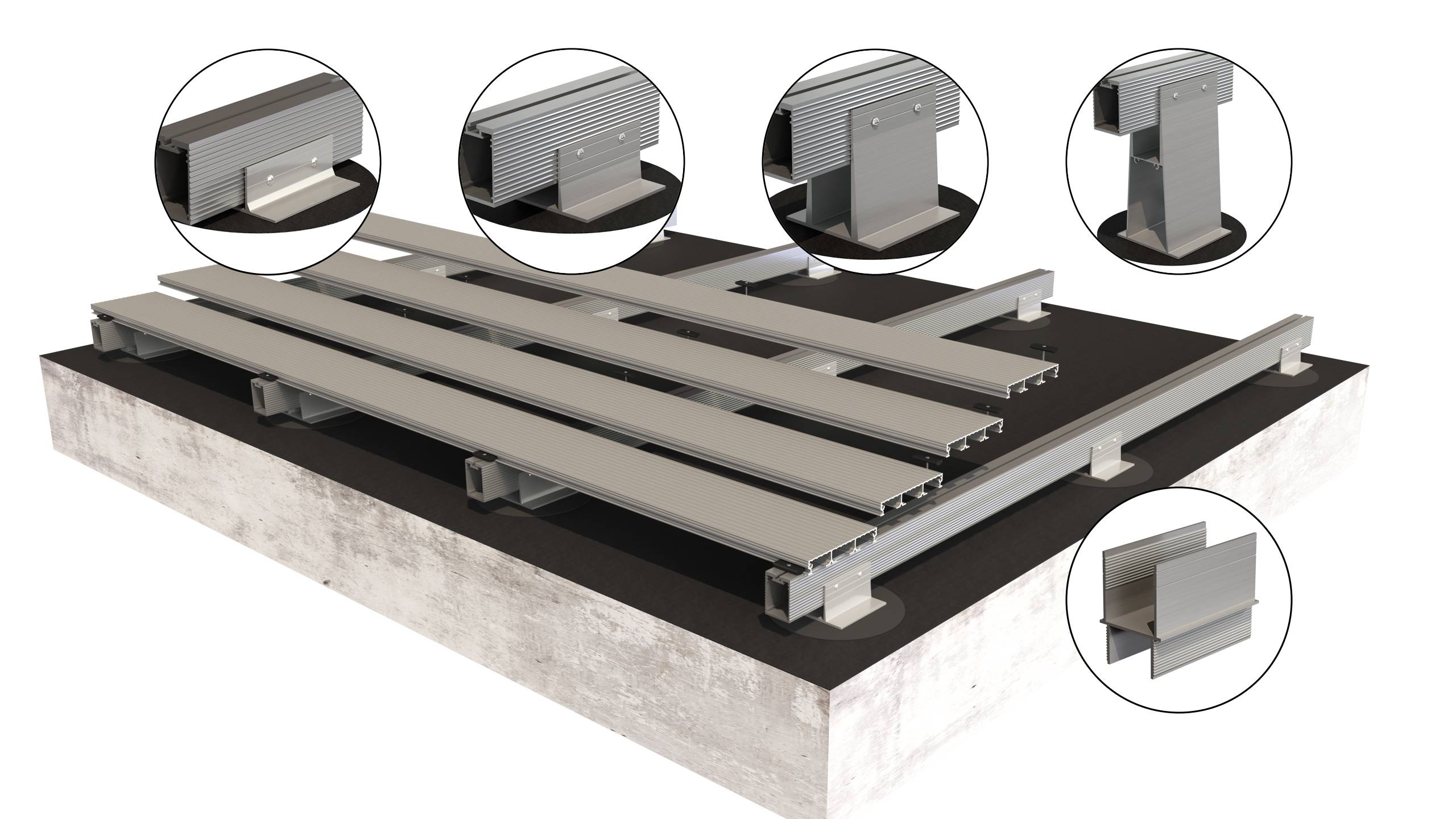

An A1 fire rated, non-combustible, aluminium support frame system designed for supporting MyDek decking on balconies and terraces. Compatible with all decking systems from MyDek for fast and accurate installation.

By using different combinations of support cleats and BoxRails, a wide range of construction heights can be achieved. The joists can also be adjusted within the cleats to suit gradients as well as height.

Features and benefits:

Fully certified.
Non-combustible.
Lightweight.
60-year design life.

General information

Color	Silver
Finish	Mill
Material	Aluminium
Warranty description	30 year

Uniclass	Pr_20_85_47_22 Decking and paving pedestalsPrimary
CAWS	K46/320 Pedestals K41/320 Pedestals Q25/480 Support pedestals Q55/395 Support pedestals Q37/460 Support pedestals

Specification data - Decking and paving pedestals

Grade	6063-T6.
Material	Aluminium grade 6063-T6.
Adjustment	35—53 mm. Guidance for specification option: SF04. Manufacturer guidance Construction heights include the height of the BoxRail and exclude the height of the deck board. The three different joist sizes can be combined with any of the three different support cleat sizes to achieve a range of different construction depths.
Accessories	None. J-Clip - Paving tile restraint system. Guidance for specification option: Enables the restraint of porcelain tiles against wind uplift. Allows MyDek decking boards and porcelain tiles to be utilised on the same support framework. Overall size: 75 x 15 x 18.5 mm (L x W x H). Joint space width: 3 mm

Expansion capacity	1 mm per linear metre.
Coefficient of thermal expansion	0.024 mm/m/°C.
FireRating	To EN 13501–1, A2-s1,d0.
Installation	Clipped onto support cleats and fixed using supplied self-drilling screws. Guidance for specification option: Rail clips to adjustable pedestal. Rubber protection mats should be inserted to protect waterproofing membranes if necessary.
Support	SF04.
Decking	Luxura Deck 150 - Aged Oak, Textured Woodgrain. Guidance for specification option: Board size: 2440 x 144 x 25 mm. Luxura Deck 150 - Hickory, Textured Woodgrain. Guidance for specification option: Board size: 2440 x 144 x 25 mm. Luxura Deck 200 – Hickory, Brushed Grain. Guidance for specification option: Board size: 2440 x 200 x 25 mm. Luxura Deck 200 – Aged Oak, Brushed Grain. Guidance for specification option: Board size: 2440 x 200 x 25 mm. Luxura Pave 600 – Aged Oak, Brushed Grain. Guidance for specification option: Size: 594 x 594 x 25 mm. Luxura Pave 1200 – Aged Oak, Brushed Grain. Guidance for specification option: Size: 1194 x 294 mm. Show more

Sustainability data

Contains Red List materials	No
Material	Aluminium
Recyclability	100%
Recycled content As defined in clause 7.8 of BS EN ISO 14021	80 % Guidance for specification option: Up to
