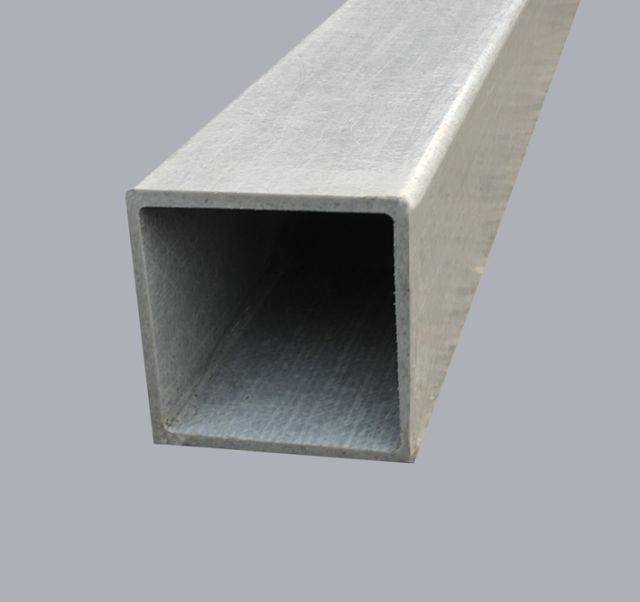

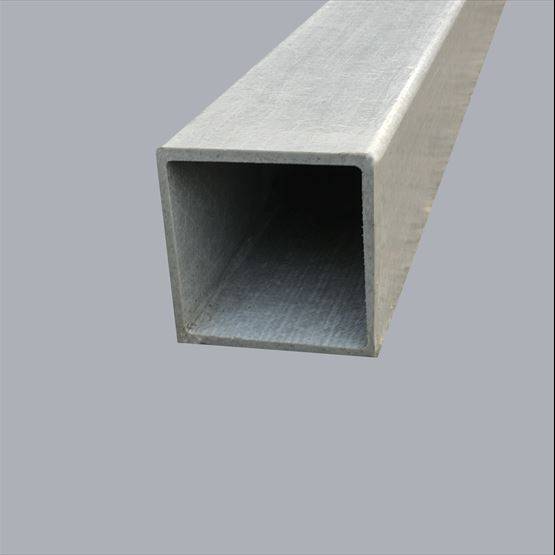

Box Section Profile
Application

  • Aerospace/ military areas.
  • Building/ construction areas.
  • Chemical processing plants.
  • Electrical areas.
  • Food processing.
  • Infrastructure.
  • Mining industry.
  • Oil and gas industry.
  • Automotive industry.
  • Cellular communications.
  • Cooling towers.
  • EMI/ RFI testing areas.
  • Hotels/motels.
  • Marine.
  • Offshore oil.
  • Petrochemical.

Description

Structural pultruded fibreglass box section profile available in multiple sizes and compliant with BS EN 13706 E23/E17 standards.

Features and benefits:

  • High strength.
  • Lightweight.
  • Corrosion resistant.
  • Dimensional stability.
  • Non-conductive and spark resistant.
  • Electro-magnetic transparency.
  • Low temperature capabilities.
  • Aesthetically pleasing.

Applications:

  • Aerospace/ military areas.
  • Building/ construction areas.
  • Chemical processing plants.
  • Electrical areas.
  • Food processing.
  • Infrastructure.
  • Mining industry.
  • Oil and gas industry.
  • Automotive industry.
  • Cellular communications.
  • Cooling towers.
  • EMI/ RFI testing areas.
  • Hotels/motels.
  • Marine.
  • Offshore oil.
  • Petrochemical.

General information

Color

Grey

Features

High strength, corrosion resistant, lightweight, rust and rot proof, non conductive

Material

Fibreglass

Shape

Square

Size

25 x 25 x 6000 mm

Uniclass 2015

Pr_20_76_63_85 Structural plastics sectionsPrimary

CAWS

L30/45 Ramps/ Walkways

L30/460 Walkways

Q10/312 Footway gratings

Specification data - Structural plastics sections

Product Reference

GRP Pultruded Profiles: Box Section

Size (h x w x thickness)

25 x 25 x 3 mm

3.3 kg.

38 x 38 x 3.2 mm

3.66 kg.

38 x 38 x 5 mm

7.44 kg.

44 x 44 x 6.9 mm

84 kg.

51 x 51 x 3.2 mm

6.6 kg.

51 x 51 x 6.35 mm

12.72 kg.

60 x 60 x 4.5 mm

11.1 kg.

76 x 76.6 x 35 mm

20.88 kg.

101.6 x 101.6 x 6.35 mm

27.6 kg.

102 x 51 x 6.35 mm

Colour

Grey

Special order

Insert BS or RAL colour requirement.

Standard product features

Length:

6000 mm.

Material:

Pultruded glass reinforced plastic (GRP).

Technical characteristics:

  • Chemical resistance: Constructed from Iso resin as standard. Different chemical resistance available.
  • Tolerance (including cut): ±3–4 mm.
  • Service temperature: -20 to +80°C.
  • Design life: Greater than 20 years.
  • Consult manufacturer's literature for test results.

Digital objects
PlatformCompatibleVersionCertified to
IFC
- 1 2.1
Revit
- 1 2.1
Download now from NBS National BIM Library
