Bow Top Panel - Hoop top metal railings

Name: Bow Top Panel - Hoop top metal railings
Brand: Jacksons Fencing
SKU: dvajfisyzZdMSwiKSmXdNs

Verified by manufacturer 6 months ago

Jacksons Fencing

Third party certifications:

ISO 9001 Quality Management
Certificate type

Tubular bow top railings.

Jump to:

0800 408 4757 Website

Application

Residential; light commercial; parks; schools.

Description

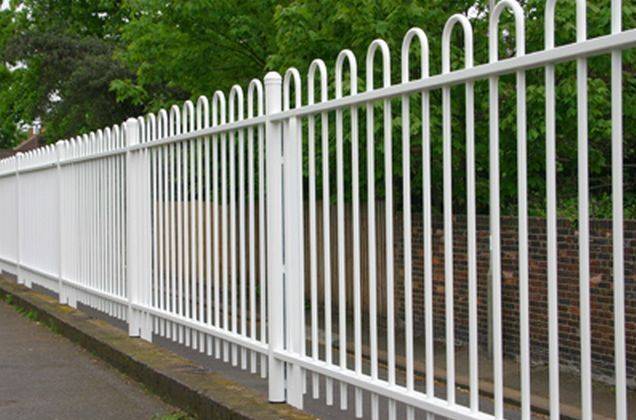

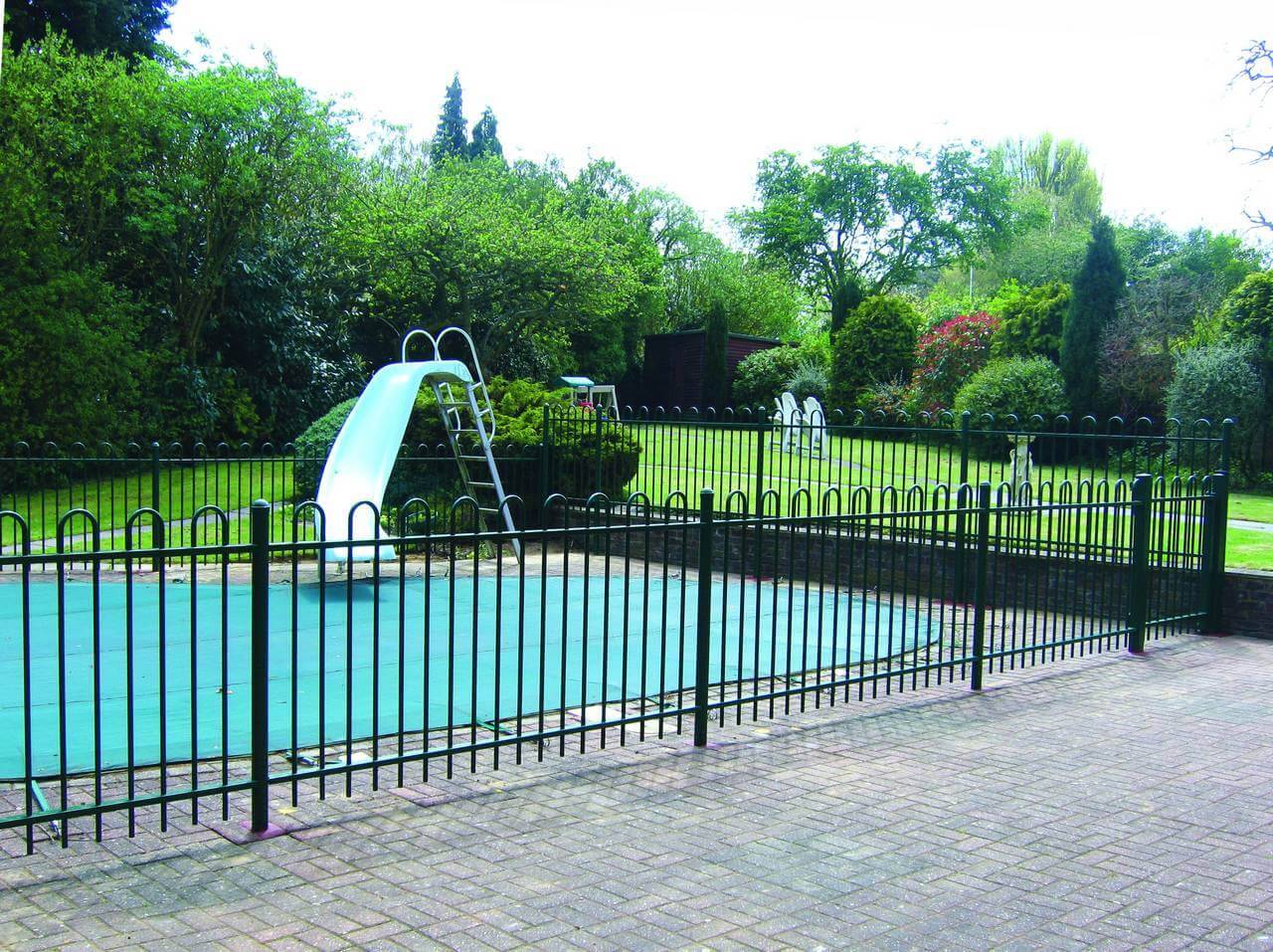

Tubular bow top railings with a decorative hoop topping for a smart, elegant appearance.

Features and benefits:

Tubular construction for extra strength.
Vandal-proof connections.
Welded pale-through-rail tubular construction.
Traditional round top railing design suitable for front gardens, schools and light commercial properties.
Galvanized finish as standard to BS EN 1461 for a longer life.
Colour coating available; consult manufacturer for details.
Available in heights 1 m to 2 m.
25-year service life guarantee.
Panels can be manufactured to accommodate sloping ground.

General information

Color	Black Guidance for specification option: Powder-coated, RAL 9005. Green Guidance for specification option: Powder-coated, RAL 6005. Other Guidance for specification option: Powder-coated.
Finish	Powder-coated Guidance for specification option: To BS EN 13438. Galvanized
Material	Steel
Shape	Rectangle
Length	Bespoke Guidance for specification option: 3014 mm post centres.
Width	3014 mm
Height	1000 mm 1200 mm 1500 mm 1800 mm 2000 mm
Warranty description	25 year Guidance for specification option: Service life guarantee.

Uniclass	Ss_25_14_61_86 Steel vertical bar fencing systemsPrimary
CAWS	Q40/30 Proprietary fencing Q40/340 Steel vertical bar fencing Q40/430 Proprietary fencing

Product range	Metal Railings

Specification data - Steel vertical bar fencing systems

System performance	- Manufacturer guidance Insert requirements.
Posts	60.3 mm-diameter CHS steel, standard. 60.3 mm-diameter CHS steel, cranked. Guidance for specification option: To accommodate sloping ground. Manufacturer guidance Circular hollow section. Centres of 3014 mm. With anti-tamper fixings with internal connector and no visible bolts. Colour/finish specified separately below. See panel height guidance for overall post length.
Post foundations	Set in concrete, flat. Guidance for specification option: Standard. Base-plated, flat. Guidance for specification option: To bolt down onto concrete. Set in concrete, sloped. Base-plated, sloped.
Rails	Two horizontal, rectangular, hollow section (RHS) steel rails. Guidance for specification option: 50 x 25 mm.
Panels	1000 mm high. Guidance for specification option: Overall post length: 1500 mm. 1200 mm high. Guidance for specification option: Overall post length: 1800 mm. 1500 mm high. Guidance for specification option: Overall post length: 2100 mm. 1800 mm high. Guidance for specification option: Overall post length: 2500 mm. 2000 mm high. Guidance for specification option: Overall post length: 2800 mm. Manufacturer guidance Bow top (150 mm above top rail). Bottom rail to bottom of pales: 100 mm (60 mm clear of ground). Welded pale-through-rail tubular construction; pales spaced at 119 mm centres (100 mm spacing). Vandal-proof connectors. Colour/finish specified separately below.
System accessories	None. Finials. Guidance for specification option: Consult manufacturer for options and insert requirements. Matching gates. Guidance for specification option: To be specified separately. Single and double leaf options available.

Colour/ Finish	Galvanized. Guidance for specification option: Standard; hot-dip galvanized to BS EN 1461. Galvanized and powder-coated, black RAL 9005. Guidance for specification option: To BS EN 13438. Galvanized and powder-coated, green RAL 6005. Guidance for specification option: To BS EN 13438. Galvanized and powder-coated, other. Guidance for specification option: To BS EN 13438. Special order, insert requirements (BS or RAL).
