Bottle Filler / Drinking Fountain Bi-Level Combination Unit - Elkay LZSTL8WSS2K

Third party certifications:
  • QA Certificate

    Certificate type

MIW Water Cooler Experts

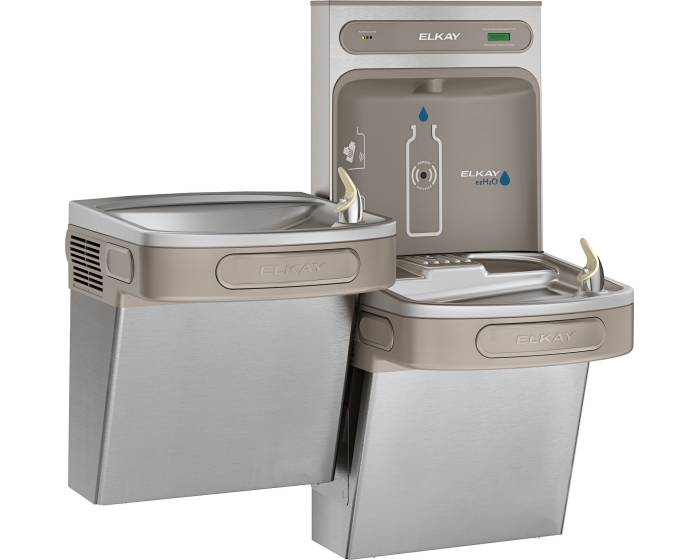

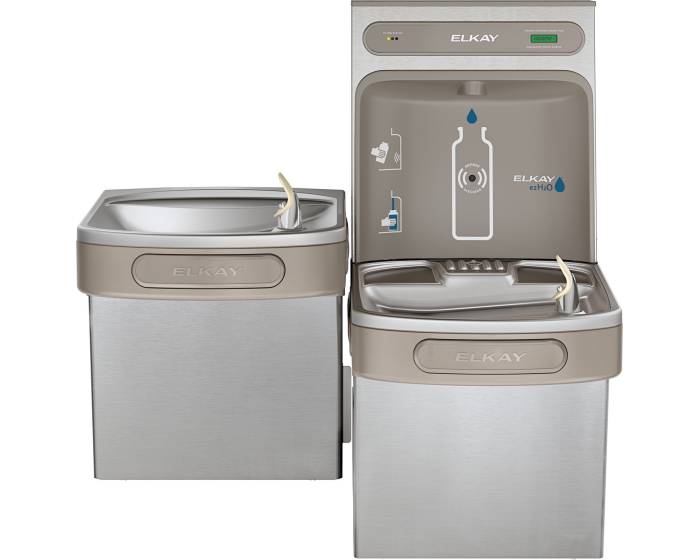

Wall mounted combination bottle filler and bi-level water cooler.

Jump to:
+44 (0)1207 572 000 www.miw.co.uk

Suitable for any busy location, including schools and hospitals to hospitality and retail sites.


Wall mounted combination bottle filler and bi-level water cooler. Filtered and refrigerated.

Designed to incorporate twin bi-level drinking fountains, stationed respectively at the suitable heights for standing and seated users. The Americans with Disabilities Act (ADA) approved unit is accessible and easy to use. Working alongside the twin bubblers, an Elkay EZH2O® bottle filler is also in operation.

It is a high capacity unit capable of processing 1.1 gallons of freshly filtered water per minute. Its inbuilt filter is certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odour reduction, guaranteeing the best quality water available. The filter only needs to be changed every 3000 gallons.

The unit includes a visual filter monitor with LED filter status indicator for when filter change is necessary. The sensor-activated bottle filler makes for a more hygienic interface with less chance of contamination. The rapid refill rate combined with the laminar flow provides a clean fill with minimal splash, without keeping users waiting. The drinking fountains are finished with Flexi-Guard bubblers, providing a flexible antimicrobial mouth guard to protect against injury as well as microorganisms.

Silver ion antimicrobial protection is embedded into all key plastic components of the unit to inhibit the growth of mould and mildew, improving the long-term appearance and usability of the unit while reducing daily maintenance routines. A real drain system eliminates the problem of standing water and the attendant odours and bacterial risks it brings. It includes an integral Green Ticker, which tracks the amount of water dispensed and informs users of the number of 20 oz. plastic water bottles saved from waste by the unit.

Features and benefits:

  • Visual Filter Monitor: LED Filter Status Indicator for when filter change is necessary.
  • Green Ticker: Informs user of number of 20 oz. plastic water bottles saved from waste.
  • Laminar flow provides clean fill with minimal splash.
  • Silver ion antimicrobial protection on key plastic components to inhibit the growth of mould and mildew.
  • Real drain system eliminates standing water.
  • WRAS and BREEAM approved, and Greenspec® listed.
  • Manufacturer provides a five-year limited warranty on any refrigeration systems; one-year warranty on electrical components and water system.


Suitable for any busy location, including schools and hospitals to hospitality and retail sites.

General information

Stainless steel

Uniclass 2015
Pr_40_70_15_96 Water coolersPrimary
Specification data - Water coolers
Product Reference


Waste options

10 L waste container

McAlpine 32 mm drain

Waste water pump




WaterSentry® Plus replacement filter (bottle fillers).


WaterSentry® filter mounting cover (stainless steel).


Elkay cane apron.


In wall carrier (bi-level).

Standard product features

Size (h x w x d):

933 x 483 x 992 mm.


50 kg.


Stainless steel.


Wall mounted. Wall security brackets included.

Water temperature:



42 L/hour.

Cooling system:

Advanced pressure cooler.


Flexi-Guard® Safety bubbler. Incorporates an infused, antimicrobial, pliable polyester elastomer to prevent accidental mouth injuries. Flexes on impact.


Electronic bottle filler sensor with electronic front and side bubbler push bar.

Rated power input:

370 W.

Nominal voltage:

230 V (50 Hz).

Third party certifications
  • WRAS: Certificate: 1707086 - Approved
  • GreenSpec: Listed
  • BREEAM: Approved
  • UL: Certificate: 399 - Approved
  • WQA: Certificate: NSF/ANSI 42, 53, 61, 372 - Approved
