Application

For vehicle access control.

Description

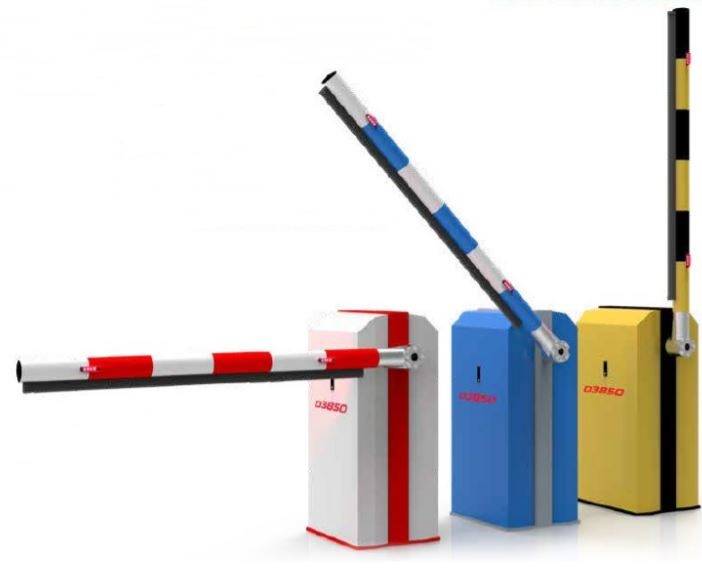

Heavy-duty, automatic rising arm barrier.

Features and benefits:

  • Motor-driven barrier.
  • LED backlit logo lighting available.
  • Skirts available.
  • Removable clamshell covers.

Application:

For vehicle access control.

General information
Color

Red, white, back and yellow as standard although other colours may be specified

Features

Motor driven barrier, LED backlit logo lighting, removable clamshell covers

Finish

Polyester powder coated in red and white as standard

Material

Stainless steel

Size

520 x 1230 x 770 mm

Uniclass 2015
Rising arm vehicular barriers (Pr_30_59_59_72)Primary
Specification data - Rising arm vehicular barriers
Product Reference

BoomPro Ultra

Method of operation

Electronically raised and lowered

Span

Insert requirement, available up to 9 m with a plain boom, 8 m with a bottom skirt and 6.55 m with a hi-bar upper and lower skirt.

Posts

One

Arms – type

100 mm diameter

Arms – material

Vinyl-wrapped aluminium

Finish as delivered – applied finish

Powder coated

Finish as delivered – colour

Black and yellow

Red and white

Special order

Insert RAL colour requirements.

Operating time

4–9 seconds (adjustable)

Drive

Inverter-driven, three-phase motor and wormed gearbox

Cycles

100% continuous duty rating

Accessories

None

Hi-bar upper and lower skirt

LED backlit logo lighting

LED boom lights

Lower skirt

Signage

Standard product features

Size:

520 x 1230 x 770 mm.

Power supply:

230 V AC, 50 Hz, 5 A.
