Boom Type Gate
Verified by manufacturer 3 months ago
CHAS
Certificate type
ISO 9001 Quality Management
Certificate type
PEFC
Certificate type
Manual swing timber boom gate for attractive access control
Application
Easy control of access. Suitable for use in a range of parking areas.
Description

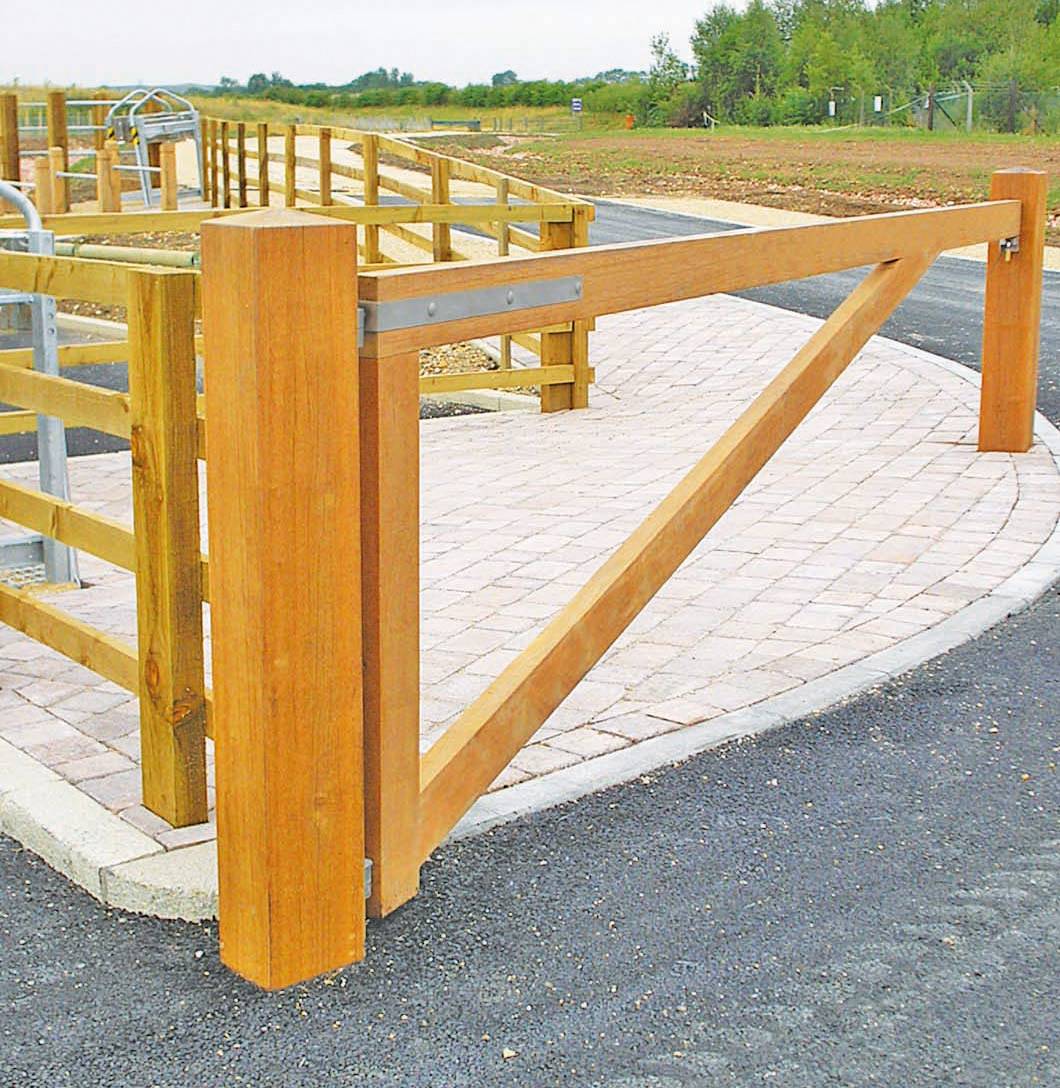

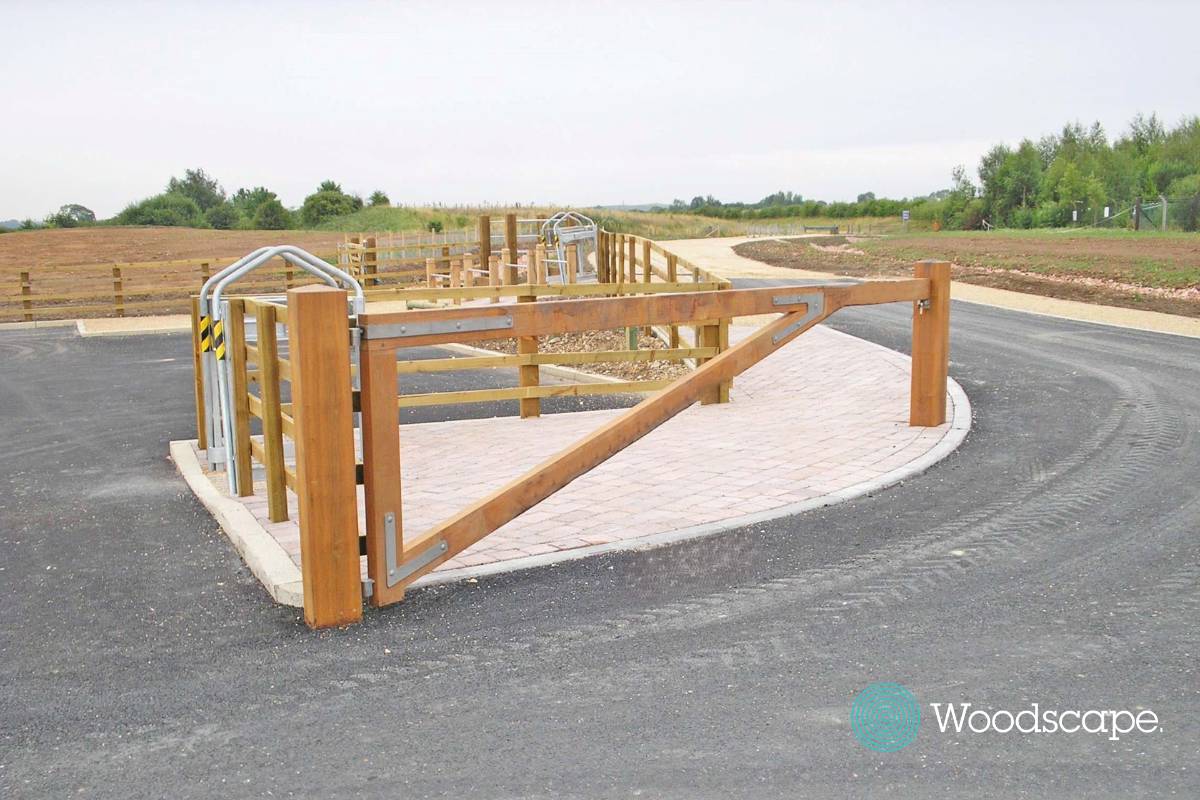

The Boom Type Gate blocks vehicular access through a controlled point and typically has a 65 mm thick boom, three SSP200 posts, two stainless steel gudgeons and two stainless steel keeps.
Features and benefits:
- Available in nine standard size options, however custom sizes are available upon request.
- Manufactured in-house, so can be customised to meet design requirements.
- No routine treatment and maintenance required.
- Available in FSC Certified timber.
General information
Color | Other Guidance for specification option: Natural. |
Finish | Natural |
Material | Wood Timber Stainless steel |
Shape | Other |
Length | 2000 mm 2500 mm 3000 mm 3500 mm 4000 mm Manufacturer guidanceBoom length. |
Width | 65 mm Bespoke |
Height | 850 mm Bespoke 1100 mm 1340 mm |
Warranty description | Other Manufacturer guidanceSee https://woodscape.co.uk/warranty/ for details. |
Uniclass | |
CAWS | Q50/20 Gate Q41/190 Vehicle access point barriers |
Specification data - Horizontal swing vehicular barriers
Method of operation | Manual. |
Dimensions | |
Height | 1100 mm.1340 mm.Custom.Guidance for specification option: Custom height available on request; consult manufacturer and insert requirement. |
Span | 2000 mm.2500 mm.3000 mm.3500 mm.4000 mm.4500 mm.5000 mm.5500 mm.6000 mm.Custom.Guidance for specification option: Custom span available on request; consult manufacturer and insert requirements. |
Posts | FSC® Certified Naturally Very Durable Hardwood posts.Manufacturer guidanceMaterial |
Swing arm | |
Type | Rectangular timber section. |
Finish as delivered | |
Colour | Natural hardwood. |
Accessories | Two stainless steel gudgeons and two stainless steel keeps. |
Posts | 190 x 190 x 1650 mm. Guidance for specification option: Suitable for boom spans 2000–3500 mm. 190 x 190 x 2000 mm. Guidance for specification option: Suitable for boom spans 4000–6000 mm. Manufacturer guidancePost dimensions (length x width x height). Three posts in total. Posts built-in bellow ground. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Manufacturer guidanceDepends on timber species used. Consult manufacturer for more details. |
Country of product manufacture | United Kingdom |
Material | Wood Timber Stainless steel |
Manufacturing plant location | |
Recyclability | Timber is recyclable |
Expected Life | Manufacturer guidanceDepends on material choices; consult manufacturer for more details and insert requirements. |
Third party certifications
CHAS
Contractors Health & Safety Assessment Scheme (CHAS)
ISO 9001 Quality Management
ISO 9001:2015
PEFC
PEFC Chain of Custody (CoC) Certified Supplier

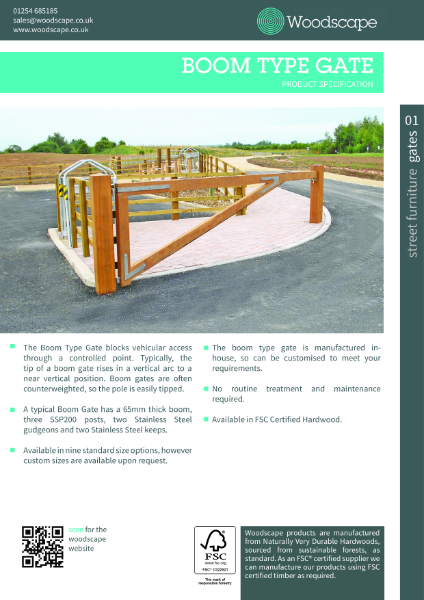

Literature
Boom Type Gate
