Application

Suitable for indoors. For under sinks and combi-ovens.

Description

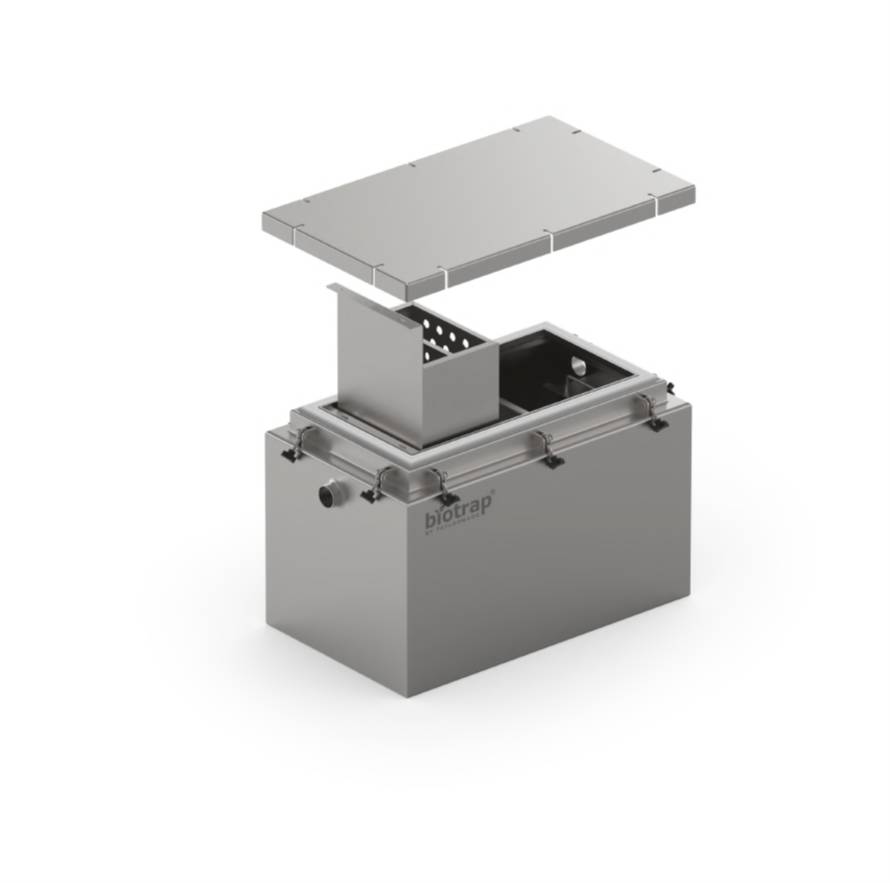

BIOTRAP-US is an undersink greasetrap for indoor applications. The BIOTRAP-US lids are made from 304-grade stainless steel and are secured to the unit with several drop-down threaded knobs. No tools are required for opening and closing the lids.

The compression seals on the BIOTRAP-US ensure a 100% airtight seal, so it is well suited for indoor (above-ground) locations such as kitchens, store rooms and corridors.

The BIOTRAP-US can be installed below the sewer line, e.g. basements, carparks and cellars.

It is available in 15 standard sizes or it can be made to measure with variable inlet and outlet locations to suit existing on site pipework.

Features and benefits:

  • Double seal for zero malodours.
  • Removable lids for thorough cleaning.
  • Lifting pump for basement kitchens.
  • Waste water sample tap.
  • Optional daily bacterial treatment.
  • Variable inlet and outlet locations.

General information

Color

Silver

Material

Stainless steel

Shape

Rectangle

Length

570 mm

720 mm

740 mm

880 mm

900 mm

Show more

Width

400 mm

450 mm

500 mm

530 mm

550 mm

Show more

Height

500 mm

450 mm

400 mm

350 mm

475 mm

Show more

Uniclass

Pr_65_52_25_32 Free-standing grease separators and convertersPrimary

CAWS

R11/46 Grease traps and converters

R11/380 Grease traps and converters

Sustainability data

Material

Stainless steel

Literature

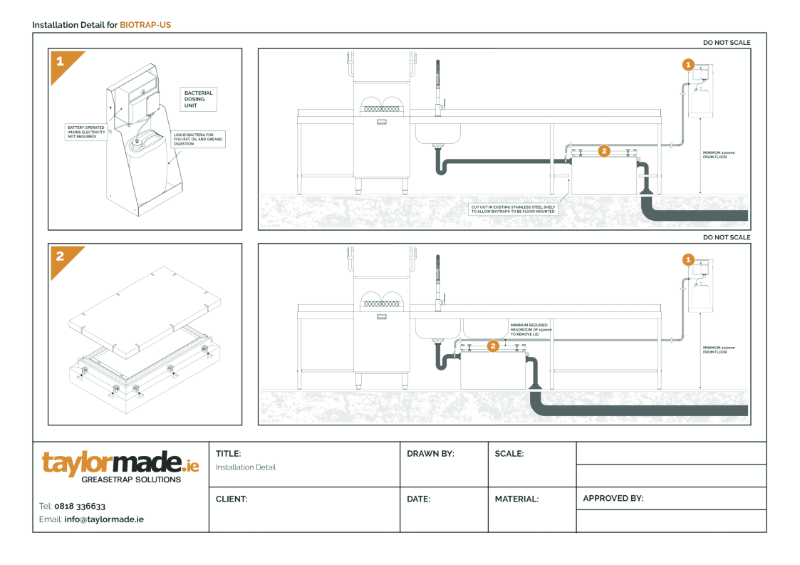

BIOTRAP-US Under Sink Installation Detail

BIOTRAP-US Under Sink Installation Detail

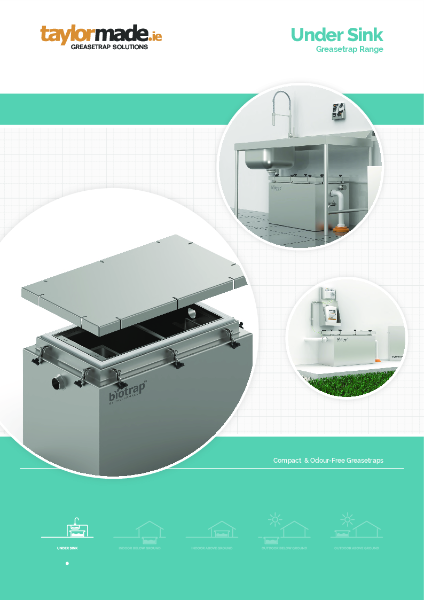

BIOTRAP-US Under Sink Brochure

BIOTRAP-US Under Sink Brochure
