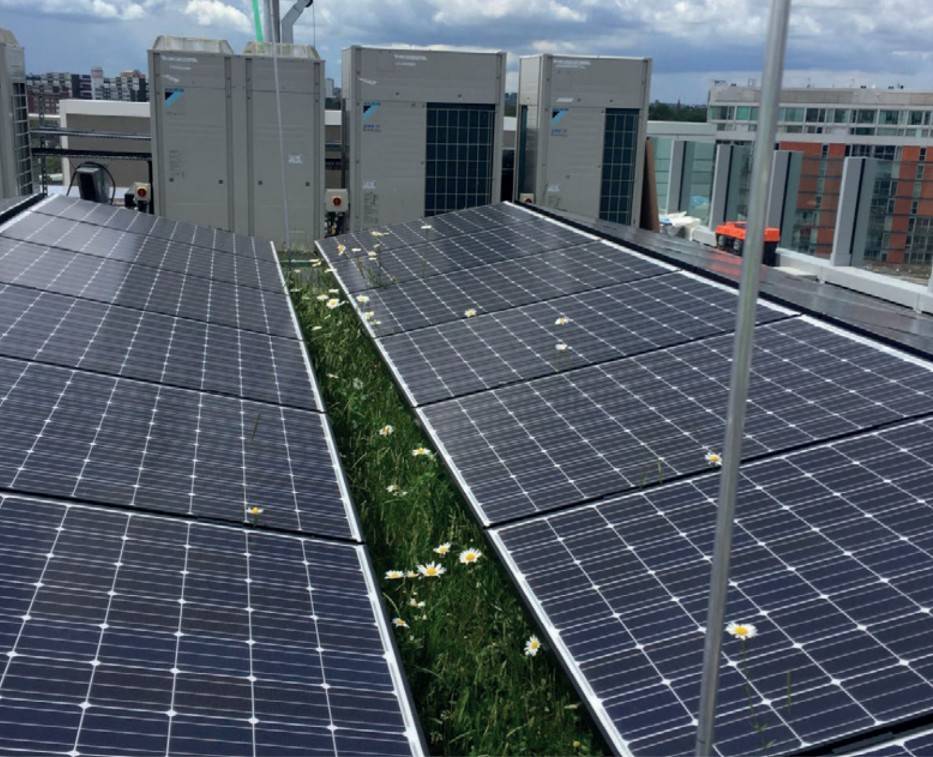

Bio-Solar – Pro-Living® System - Bio-Solar Roof System
Verified by manufacturer 1 day ago
Bio-solar roofing system.
Application
Suitable for:
- Extensive green roofs and bio-diverse roofs.
- Biosolar roofs.
Description
Bio-solar roofing system incorporating the Proteus Pro-Living® range of products.
Consists of:
- Photovoltaic Ballasted Mounting System
- Waterproofing.
- Thermal insulation.
- Water flow reducing layer.
- Protection layer.
- Drainage layer.
- Geotextile layer.
- Growing medium.
- Vegetation.
- Outlets.
- Access chambers.
- Fire breaks.
- Edge retaining profile.
- Slope retaining profile.
- Accessories.
General information
Color | Other |
Finish | Other |
Material | Polypropylene Extruded polystyrene (XPS) Expanded polystyrene (EPS) Bitumen Aluminium |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 25 year Guidance for specification option: Defects arising from lack of maintenance or abnormal use may fall outside of the cover of the Proteus Waterproofing guarantee. |
Uniclass | |
CAWS | Q37/140 Biosolar roofs Q37/130 Extensive green roofs and biodiverse roofs |
Specification data - Extensive green roof systems
Classification data | |
Roof type | Cold. Inverted. Warm. Other. Guidance for specification option: Insert drawing/ reference. |
Substrate | Plywood. Concrete. Metal. Cross laminated timber (CLT). Manufacturer guidanceConsult manufacturer for details on substrate requirements. |
Slope | Flat. 1:80. 1:60. |
Waterproofing | Proteus Hot Melt®. Guidance for specification option: A tough and flexible compound made from a blend of SBS modified bitumen, synthetic rubber, polymers and other additives, used as the monolithic waterproofing element. Proteus Pro-Felt®. Guidance for specification option: Consult manufacturer for details. Proteus Pro-BW® Plus. Guidance for specification option: Liquid-applied roof waterproofing system for use on exposed, protected, inverted flat roofs, green roofs, blue roofs, podiums, balconies and walkways. Proteus Cold Melt®. Guidance for specification option: A polyurethane two-part, elastomeric, cold liquid applied membrane, waterproofing system. |
Protection layer | Proteus Pro-Living® Bio-Solar Protection Fleece. Manufacturer guidanceBio-Solar Protection Layer. |
Thermal insulation | Proteus Pro-Therm PIR. Guidance for specification option: Fibre-free rigid polyisocyanurate (PIR) insulation core faced with coated glass tissue on one side and bituminized glass tissue with polypropylene fleece on the other. Proteus Pro-Therm XPS Plus. Guidance for specification option: For deck area insulation.
Proteus Pro-Therm EPS Plus 'Premium'. Guidance for specification option: For deck area insulation.
Proteus Pro-Therm HP PIR Plus. Guidance for specification option: Used either stand alone or with tapered or flat board insulation as a premium performance board, providing a slim solution for use on new and existing roofs with timber or concrete decks. Proteus Pro-Therm VIP. Guidance for specification option: High performance vacuum sealed insulation panel with a microporous core which is evacuated, encased and sealed in a thin, gas-tight envelope. |
Water Flow Reducing Layer/ Vapour Permeable Membrane | Proteus Low-K Water Reducing Layer. Guidance for specification option: Water flow reducing layer, for use in an Inverted or Protected Membrane Roof. Conforms to CEN 1506946. |
Drainage layer | Proteus Pro-Living® DR8 Drainage Layer. Guidance for specification option: A flexible protection and drainage layer suitable for subterranean foundation walls, tanking and basement construction. Proteus Pro-Living® DR20 Drainage Layer. Guidance for specification option: Cuspated moisture and flow retention layer for extensive and intensive green roofs, bio-diverse roofs and hard surface pedestrian areas. Proteus Pro-Living® DR40 Drainage Layer. Guidance for specification option: Cuspated moisture and flow retention layer for extensive and intensive green roofs, bio-diverse roofs and hard surface pedestrian areas. Proteus Pro-Living® Bio-Solar Drainage Board. Guidance for specification option: For bio-solar roofs. |
Geotextile filter fleece | Proteus Pro-Living® Filter Fleece. Proteus Pro-Living® Bio-Solar Filter Fleece. Guidance for specification option: For bio-solar roofs. Will also require a protection layer of Proteus Pro-Living® RMS500 Geotextile. |
Growing medium | Pro-Living® Substrate - Biodiverse. Guidance for specification option: Clean drainage and growth media designed for use in living roof applications. Insert required depth. Pro-Living® Substrate - Extensive. |
Vegetation | Pro-Living® Seed Mix. Pro-Living® Plug Plants - Wildflower. Pro-Living® Blanket - Sedum. Pro-Living® Plug Plants - Sedum. |
Frame | Proteus Pro-Living® Bio-Solar Mount. Manufacturer guidancePV Ballasted frame system. |
Fire breaks | Stone ballast (minimum 75 mm). Guidance for specification option:
|
Edge restraints | Proteus Pro-Living® Drainage Trim. |
Outlets | Proteus Aluminium Roof Outlet. |
Access | Proteus Pro-Living® Access Chamber. |
System accessories | Not required. Proteus Pro-Living® Drainage Trim. Pedestals. Bio-diverse packages. Guidance for specification option: Sand, boulders, aggregates, log piles, insect hotels. |
Standard | GRO Code of Practice for Green Roofs. |
Irrigation | Refer to Proteus Waterproofing. |
Sustainability data
Material | Polypropylene Extruded polystyrene (XPS) Expanded polystyrene (EPS) Bitumen Aluminium Other |
Literature
Product Data Sheet - Pro-Living® Biodiverse Package
Product Data Sheet - Pro-Living® DR20
Product Data Sheet - Pro-Living® DR8
Product Data Sheet - Pro-Living® Filter Fleece
Product Data Sheet - Pro-Living® Substrate - Biodiverse
