TYPE BL-WH Fixed Ladder with Safety Cage
Verified by manufacturer over a year ago

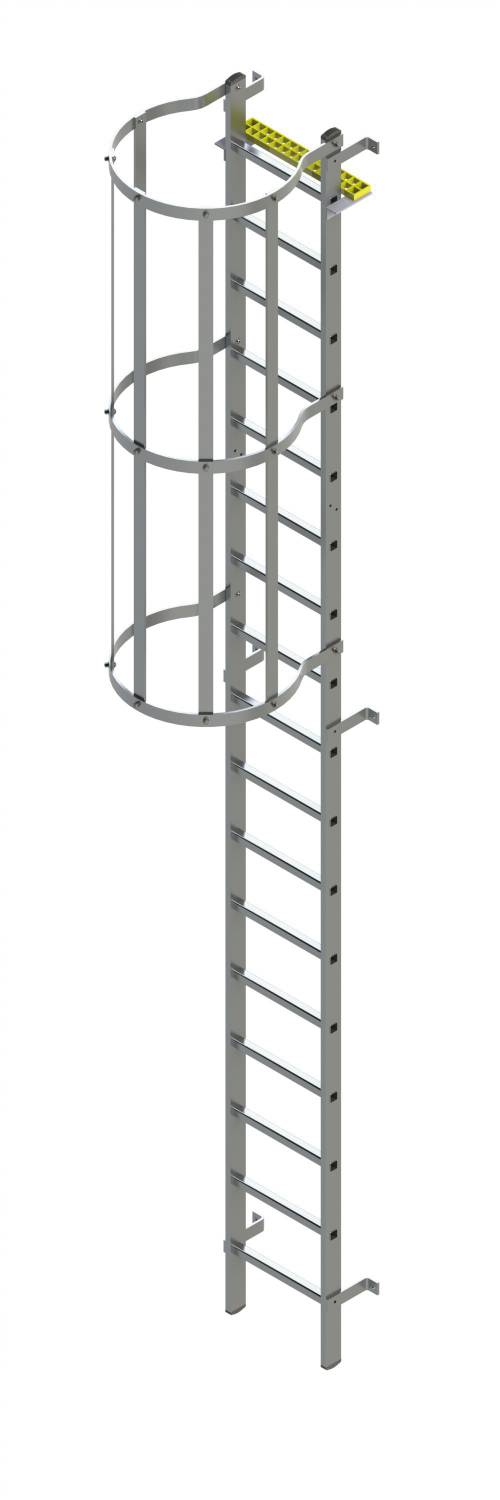

Aluminium fixed vertical ladder with safety cage.
Application
Designed to sit below a roof access hatch.
Description
Industrial standard fixed vertical ladder available to suit floor to ceiling heights of between 2–6 m (special sizes available upon request), supplied with a fixed safety cage designed to sit below a roof access hatch.
Features and benefits:
- Manufactured to meet the requirements of BS 4211:2005.
- Available in aluminium (BL-A models) or galvanized steel (BL-S models).
General information
Color | Silver |
Finish | Mill |
Material | Aluminium |
Width | 488 mm |
WarrantyDescriptionManufacturer's warranty. | - |
Uniclass | |
CAWS | L35/130 Ladder system |
Specification data - Permanently-fixed vertical ladder systems
Stiles | Alloy Class 1, 73 x 25 mm. |
Rungs | Class 1 heavy duty square. |
Safety cage | Aluminium cages above 2200–3000 mm, 50 x 10 mm flat bar, five straps as BS 4211:2005. |
Type | BL-A-WH1. Size: 2.0–2.8 m. BL-A-WH2. Size: Above 2.8–3.6 m. BL-A-WH3. Size: Above 3.6–4.4 m. BL-A-WH4. Size: Above 4.4–5.2 m. BL-A-WH5. Size: Above 5.2–6.0 m. |
Brackets | 50 x 10 mm alloy rectangular bar stand-off brackets. |
OverallWidth | 488 mm. |
BIM objects
NBS BIM object standard
This BIM object has been authored to meet the requirements of the NBS BIM object standard.
Find out more about the NBS BIM object standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2016 | 3 |
 IFC | IFC2X3 | 2 |
Literature
TYPE BL-WH Fixed Ladder with Safety Cage
