Description

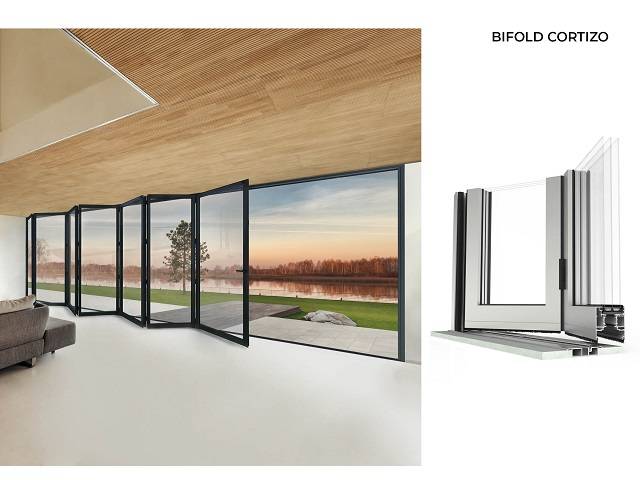

Aluminium folding door system, capable of reaching high levels of weather tightness, energy saving and acoustic insulation with reduced assembly and fabrication time. With 70 mm of basic depth, it can withstand severe climatic demands and provides a high level of energy efficiency.

Features and benefits:

  • Constructed from aluminium alloy 6063 T5.
  • Interlocking profile with only 120 mm sight line.
  • Possibility of flush threshold or exposed area configuration.

General information
Size

As drawing

Insert reference.

As schedule

Insert reference.

Material

Aluminium alloy 6063 T5 profiles, including insulation bars constructed from polyamide 6.6, reinforced with 25% of fiberglass (20 mm long in frames sashes). Perimeter polyolefin foam in rebate zones, as well as the interior of frames and sashes

Uniclass 2015
Sliding door and partition sets (Pr_30_59_24_80)Primary
Specification data - Sliding door and partition sets
Product Reference

Bi-Fold Door

Size

As drawing

Insert reference.

As schedule

Insert reference.

Configuration

Fixed glazing

Inwards opening

1-14 sashes.

Outwards opening

1-14 sashes.

Low Threshold

Not required

Required

Glazing

Insert requirement, available up to 45 mm thickness.

Finish -
FinishType

Anodized

15–25 μ dependent on the class (Class 15, Class 20, Class 25), guaranteed by EWAA-EURAS Standard.

Polyester powder coated

Insert requirement, quality guaranteed by QUALICOAT Standard, with a thickness in the interval between 60–100 μ.

Colour

Insert requirement or insert 'Not applicable' for Anodized.

Hardware/ Accessories

Insert requirements, supplied by STAC, painted in the same colour as the aluminium profiles.

Standard product features

Material:

Aluminium alloy 6063 T5 profiles, including insulation bars constructed from polyamide 6.6, reinforced with 25% of fiberglass (20 mm long in frames sashes). Perimeter polyolefin foam in rebate zones, as well as the interior of frames and sashes.

Profile thickness:

1.8 mm.

Depth:

73 mm (frame and sash).

Maximum weight per sash:

120 kg.

Thermal transmittance:

  • Average section (Uf): 3.1 W/m²K.
  • Window (Uw): ≥1.1 W/m²K.

Performance (based on 2.7 x 2.53 m, three sashes):

  • Air permeability (to BS EN 12207): Class 4.
  • Water tightness (to BS EN 12208): Class 9A.
  • Wind resistance (to BS EN 12210): Class A3.
  • Burglary resistance (to PAS 24:2012): Complies (based on configuration 330).

Product Options

Size:

Available up to 1200 x 3000 mm (w x h) per sash.
