BFHE Plinth Heater
Verified by manufacturer 9 months ago
A small and compact electric plinth heater.
Application
Suitable for domestic applications.
Description

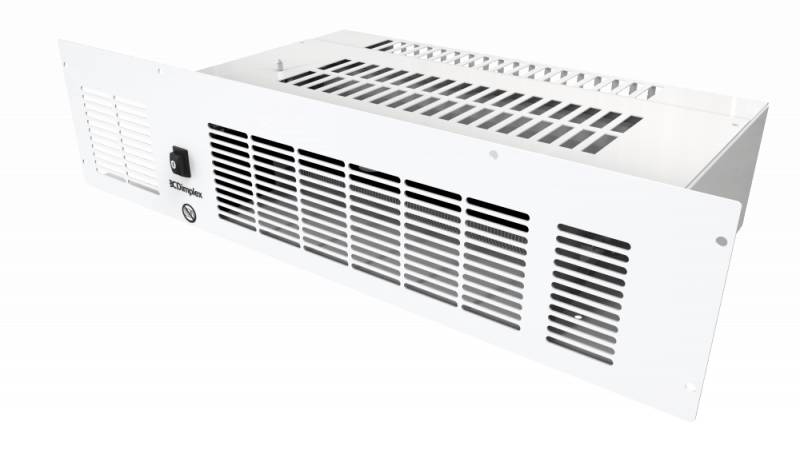

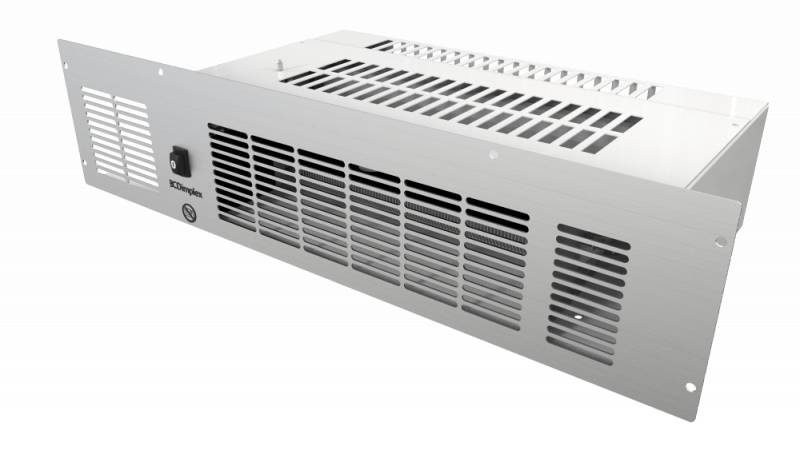

BFHE Plinth Heater featuring a seven-day timer with electronic thermostat that can be used with Dimplex panel and storage heaters. This heater fits into plinth space under cabinets in rooms with wall space restrictions.
Features and benefits:
- User programmable room temperatures with seven-day timer.
- Accurate electronic thermostat.
- Features energy-saving Adaptive Start technology.
- Same size and fixings as older Dimplex BFH heaters.
- Forward facing grille with fan-assisted output for optimum heat circulation.
- Choice of three coloured grilles to blend in with kick space.
- Remote control via Bluetooth remote.
- Complies with Lot 20 of ERP Directive.
- Supplied with Bluetooth remote.
- CE and BEAB approved.
- Supplied with a two year warranty.
General information
Color | White Grey Brown |
Finish | Powder-coated Brushed |
Material | Steel Stainless steel |
Shape | Rectangle |
Width | 500 mm |
Height | 120 mm |
Warranty description | Two year |
Uniclass | |
CAWS | V90/590 Equipment |
Specification data - Room heaters
Third party certification | CE and BEAB approved. |
Room heaters type | Fan. |
Output | 2.4 kW. |
Finish | Traffic White (RAL 9016).Brown.Brushed stainless steel. |
Controls | Digitally controlled, electronic thermostat. Guidance for specification option: Timer modes: 7 Day Programmable User Timer. Continuous heat modes: Manual, Runback, Off. Controller functions: Adaptive Start, Advance time period, Adjustable SP range (7-30°C), Bluetooth for control. |
Heating element | Modulating heat output via 3 stage stitched element with integral thermal cut-out. |
Safety features | Electrical reset, self-hold cut-out. |
Ingress protection (IP) rating | No rating. |
Battery back-up | None. Guidance for specification option: In the event of power loss, re-pairing the Bluetooth remote to the appliance will automatically reset the time and date. |
Supply | 1.3 m fitted, 3 core for fused spur installation, 1/N/PE ~230-240 V, 50 Hz Class I, with earth wire. |
Width | Front cover: 490 mm; Chassis: 360 mm. |
Sustainability data
Country of product manufacture | Ireland |
Material | Steel Stainless steel |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
BFHE Spec Sheet
