Beyond Bespoke PDR Shower Enclosure - Hinged Door with Inline and Return Panel
Verified by manufacturer 2 months ago
BS EN 12206:2021
Certificate type

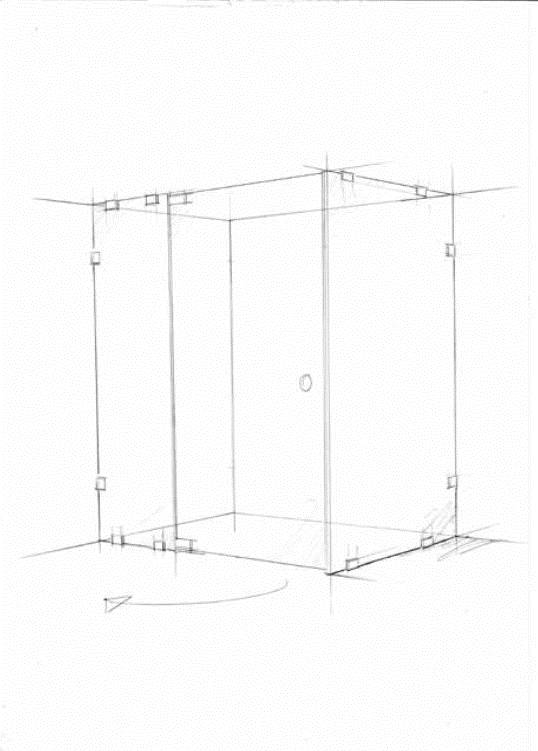

A full-height frameless shower enclosure with ceiling-fixed hinged door, inline panel return panel. Suitable for hotels, resorts and residential applications.
Application
Shower Enclosure suitable for hotels, resorts and residential applications.
Description
A frameless shower enclosure with a hinged door, inline panel and return panel manufactured from 10 mm toughened safety glass.
The fittings are available in a broad selection of colours and finishes, all of which have been tried and tested in the bathroom environment.
Suitable for hotels, resorts and residential applications.
Features and benefits:
- Anti-calcium coating.
- Inward or outward opening.
- Floor and ceiling-mounted hinges.
- Brackets-only or channels-only.
General information
Color | Silver Gold White Black Bronze Manufacturer guidanceFittings. |
Finish | Polished Matt Manufacturer guidanceFittings. |
Material | Glass |
Shape | Square Rectangle |
Length | Bespoke Guidance for specification option: Up to 1400 mm. |
Width | Bespoke Guidance for specification option: Up to 1400 mm. |
Height | Bespoke |
Warranty description | Lifetime |
Uniclass | |
CAWS | N13/375 Shower units N13/40 Shower units |
Product range |
Specification data - Shower doors
Standard | To BS EN 14428. |
Form | Frameless screen; two sides within corner (hinged door, inline panel and return panel). |
Materials | |
Glazing | |
Glazing type | 10 mm toughened safety glass to BS EN 12150. |
Finish and colour | Clear.Opti Clear.Grey.Bronze.Satin Etched.Opti Clear and Satin Etched.Mirrored.Blank Canvas (Digital Printed).Fluted.Art Glass. |
Dimensions | Manufacturer guidanceInsert requirements. Up to 1400 x 1400 mm. Panel size (maximum): 4 m². Door width (maximum): 785 mm. Door size (maximum): 1.8 m². |
Integral accessories | Brackets and floor and ceiling mounted hinges.Guidance for specification option: Not guaranteed watertight as there is no underframe. Hinges are mechanically fixed using screws. Suitable noggings are required in the floor and ceiling for fixing. |
Fittings | Polished Chrome. Matte Black. Matte White. Polished Nickel. Brushed Nickel. |
Handle | Short Round D handle. Long Round D handle. Short Square D handle. Long Square D handle. Short Contour handle. |
Handing | Left hand. Right hand. |
Height | Manufacturer guidanceInsert requirements. Panel size (maximum): 4 m². Door size (maximum): 1.8 m². |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Recyclability | Fully Recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 15 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
Third party certifications
BS EN 12206:2021
'Fragmentation Test Certificate'
BS EN 12206:2021
Testing certificate for BS12150
Literature
Majestic 2022 Brochure
