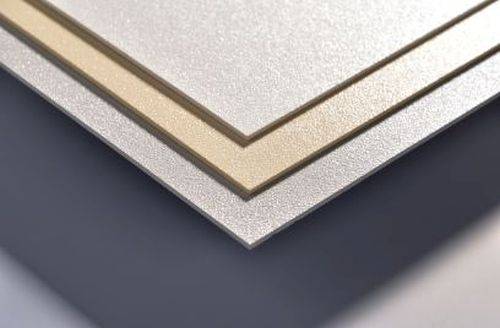

An embossed hygienic wall protection system using rigid, solid, extruded PVC in a range of sizes and colours.
Suitable for high traffic and impact risk areas such as corridors in hospitals, schools and universities.
Other suitable applications include:
An embossed hygienic wall protection system using rigid, solid, extruded PVC in a range of sizes and colours.
Features and benefits:
Color | Grey White Black Blue |
Finish | Embossed |
Material | Polyvinyl chloride (PVC) |
Shape | Rectangle |
Length | 3050 mm |
Width | 1200 mm |
Height | 2.5 mm |
WarrantyDescription | 20 year |
Uniclass | |
CAWS | K13/145 Proprietary plastics cladding K13/145 Proprietary plastics cladding |
Material | Solid PVC sheet. |
Fire performanceTo BS 476-6, class 0 when adhered to a non-combustible substrate. | To BS 476-7, class 1; to EN 13501-1, class B-s3, d0. |
Thickness | 2.5 mm. |
Sheet size | 3050 x 1220 mm. |
Finish | Embossed. |
Colour | Black.Goose Grey.Mid Grey.Blue.Teal.White. |
EdgesSeveral finishes available. Consult specification and insert requirements. | - |
VOC emissions | A+. To ISO 16000. |
Shore Hardness - D | 75. To NF EN ISO 868. |
Density | 1.4 g/cm³. To NF EN ISO 1183. |
Service temperature range | -10 to +50°C. |
ThermalConductivity | 0.17 W/m·K. To DIN 52 612. |
Co-efficient of linear thermal expansion | 8 x 10 ^-5 mm/mm/°C. To D696/79. |
Vicat softening temperature | 88°C. To ISO 306 a50 (10N). |
Modulus of elasticity | 2400 MPa. |
TensileStrength | 30 MPa. |
Flexural strength | 70 MPa. |
Impact resistance(Charpy impact resistance) | 25 kJ/m². To ISO 179/1Ea. |
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | Germany |
