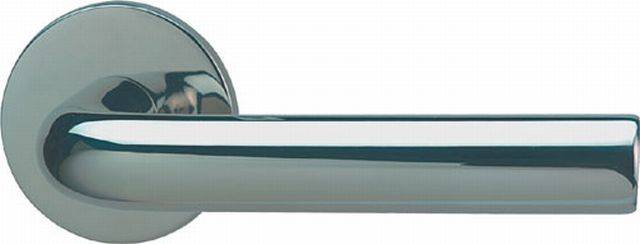

Ben Nevis stainless steel lever handles
Description

A range of Grade 316 stainless steel door lever handles, available in a variety of styles and finishes.

General information
Material

Grade 316 stainless steel, available in satin or polished finish

Uniclass 2015
Pr_30_36_59_25 Door lever handle setsPrimary
CAWS

P21/38 Lever handles

P21/610 Lever handles

Specification data - Door lever handle sets
Product Reference

Ben Nevis round section straight 316 grade stainless steel lever handles

Type

902.20.670

16 mm diameter, satin

902.20.671

16 mm diameter, polished

902.20.680

19 mm diameter, satin

902.20.681

19 mm diameter, polished

Accessories

909.00.910

Pitts spindle, 5 x 62 mm

909.00.911

Pitts spindle, 5 x 85 mm

909.02.900

Taylors spindle

909.40.600

Spindle converter

909.80.622

Slotted Fusital spindle, 120 mm

909.80.635

Slotted Fusital spindle, 130 mm

909.83.711

Split spindle

909.87.050

Half spindle

909.90.746

50 mm fixing screws

909.90.748

60 mm fixing screws

909.97.345

M4 bolt and sleeve, 45 mm

909.97.350

M4 bolt and sleeve, 50 mm

911.39.357

Pitts spindle, 8 x 82 mm

911.39.358

Pitts spindle, 8 x 138 mm

Standard product features

Ben Nevis round section straight lever handles:

  • Grub screw fixing on 8 mm special square spindle.
  • Pair of concealed fixing roses.
  • Rose diameter: 52 mm.
  • Lever: 120 mm long.
  • Handle diameter: 16 mm or 19 mm.
  • Unsprung, for use with heavy duty followers.
  • Fixing screws included.
  • Designed for doors 35-54 mm thick.
  • Finish: Polished or satin.

Properties:

  • Handles are supplied as pairs.

Material:

  • Grade 316 stainless steel, available in satin or polished finish.

Escutcheons:

  • Lock escutcheons are available to match handles with circular roses.

Product Options

Accessories:

Bolt through fixing screws:

  • Length: 50 mm and 60 mm.
  • To suit doors 42-46 mm and 52-56 mm thick.
  • 2 No. required per rose.
  • Material: Steel.

Half spindle:

  • Dimensions: 67 x 8 mm.
  • Designed for doors 38-48 mm thick, with lever handles one side only.
  • Material: Zinc plated steel.

M4 bolt and sleeve:

  • Designed for handles, rosettes and escutcheons.
  • Lengths: 45 mm (for doors 41-45 mm thick), 50 mm (for doors 46-50 mm thick).

Pitts spindle plain:

  • Dimensions: 5 mm square (62 or 85 mm long), or 8 mm square (82 or 138 mm long).
  • Material: Zinc plated steel.

Slotted Fusital spindle:

  • Dimensions: 120 mm or 130 mm x 8 mm.
  • Designed for doors up to 44 mm or 54 mm thick, with Fusital lever handles.
  • Material: Zinc plated steel.

Split spindle:

  • Dimensions: 118 x 8 mm.
  • Designed for doors up to 54 mm thick, with split follower locks.
  • Material: Zinc plated steel.

Spindle converter:

  • Designed for converting spindle from 5 mm to 8 mm.
  • Material: Aluminium.

Taylors spindle:

  • Designed to fix half sets of levers or knobs dead.
  • Material: Zinc plated steel.
