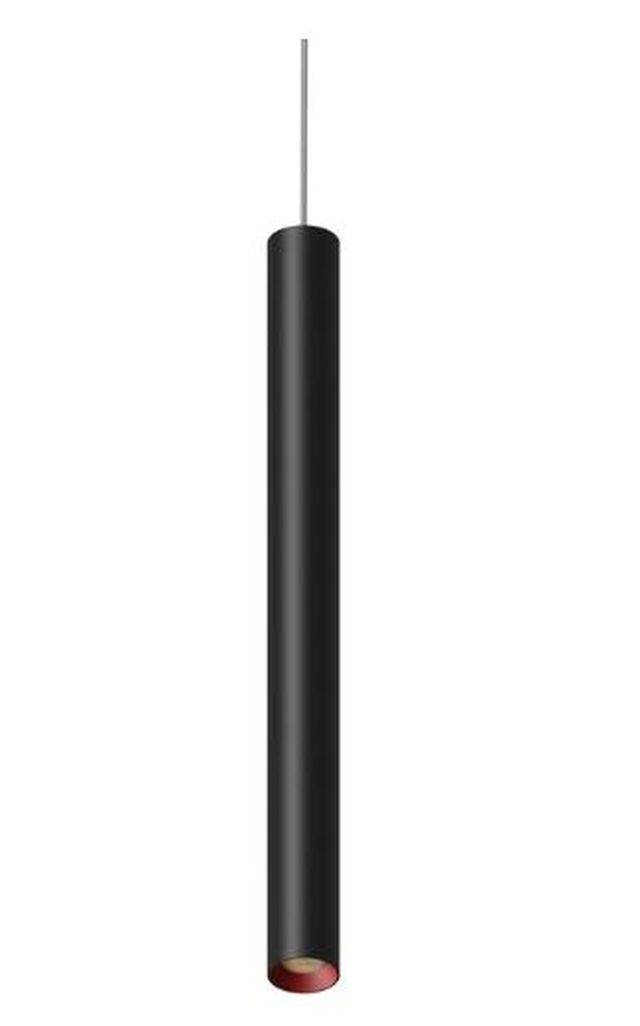

Bellart Mini Suspended Tubular Downlight
Mini suspended tubular LED pendant lighting.
Residential or commercial interiors including office, hospitality, retail or as architectural feature lighting. Best used in small meeting pods and above a reception desk.
Mini suspended tubular LED pendant lighting.
Features and benefits:
- Minimalist, slim design for a subtle appearance.
- Narrow beam angle.
- Can be suspended at different lengths to create clusters of soft light. Comes with standard suspension kit of 1500 mm.
- A range of size and colour variations are possible, and different colour front rings are also specifiable.
- Easy to install.
- Can be specified with CASAMBI wireless sensor to increase user control.
- Internal drivers are supplied.
Also available as surface mounted (specified separately).
Application:
Residential or commercial interiors including office, hospitality, retail or as architectural feature lighting. Best used in small meeting pods and above a reception desk.
Size | 30 x 250 mm 30 x 350 mm 30 x 450 mm Custom Larger diameters are available, consult manufacturer for details. |
Features | Contemporary finish, miniature size, soft accent lighting |
Finish | Polyester powder coat |
Material | Extruded aluminium profile with LEDs |
Shape | Tubular downlight |
Uniclass 2015 | |
CAWS | V90/45 Luminaires V90/510 Luminaires |
Product Reference | Bellart Mini Suspended |
Standards | Directive 2004/108/EC - EMC |
Third-party certification | Photometrics |
Luminaire description | Suspended, slim, tubular pendant |
Classification | - |
Electric shock | Class I |
Ingress protection (minimum) | IP20 Rated |
Suitability for direct mounting on normally flammable surfaces | Not suitable for direct mounting on normally flammable surfaces |
Circumstances of use | Normal use |
Rated maximum ambient temperature | 25°C |
Control gear position | Inside canopyInside ceiling void |
Nominal voltage | 230 V |
Luminaire power factor | 0.98 |
LED luminaires | - |
Initial LED luminaire efficacy (minimum) | 110 Lm/W |
Wattage | 6W/ 660 lm |
Colour temperature | 3000K (3-Step MacAdam ellipse) |
Colour rendering index (Ra) | 90 |
Beam angle | Narrow beam angle of 25° (can be adjusted to 15°) |
Useful life | 50 000 hours (L80B20) |
Dimming protocol | DALI DimmingAvailable when driver is inside ceiling void. DALI Dimming/ BluetoothAvailable when driver is inside ceiling void. Non-dimmingStandard. |
Emergency version | - |
Duration of emergency mode (minimum) | No emergency0 hours. |
Integral sensors | Not requiredCASAMBI |
Accessories | Not required15° lens beam adjustmentSuspension cable |
Size | 30 x 250 mm30 x 350 mm30 x 450 mmCustomLarger diameters are available, consult manufacturer for details. |
Colour | - |
Body | BlackWhiteRALInsert requirements. |
Front ring | Not requiredBlackCopperGoldGraphiteRedWhiteRALInsert requirements. |
Unified glare rating | - |
Transverse | <19, meeting the Chartered Institution of Building Services Engineers (CIBSE), Society of Light and Lighting (SLL) and BCO Guide to Lighting Standards |
Longitudinal | <19 |
Driver | - |
Efficiency | 80% |
Frequency | 50-60 Hz |
Output direction | Direct |
Standard product features | Colour: Available in two standard colours or bespoke RAL colour. Features: Contemporary finish, miniature size, soft accent lighting. Finish: Polyester powder coat. Material: Extruded aluminium profile with LEDs. Shape: Tubular downlight. Size: Three sizes ranging from 250-450 mm. Warranty: Two-year warranty. Recycled content: Aluminium and packaging. Recyclability: Frame and packaging. Country of origin: UK. |
Recyclability | Frame and packaging |
Recycled content | Aluminium and packaging |
