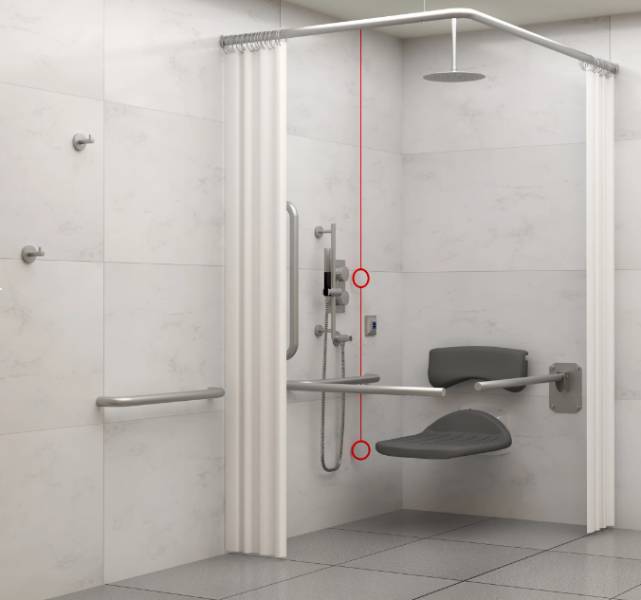

BC5063-SHC Roseless Doc M Shower Set – Concealed

Verified by manufacturer 17 days ago

Dolphin Solutions

Roseless concealed Doc M shower set with stainless steel accessories.

Jump to:
+44 (0)1424 202224 Website

Application

Suitable for accessible shower rooms and commercial end of trip areas.

Description

Roseless Doc M concealed shower set is a cost effective alternative to sourcing individual items and delivered in one package for easy installation.


Features and benefits:

  • Cost effective.
  • Satin brushed stainless steel or powder-coated finish.
  • Achieves a consistent and co-ordinated aesthetic throughout the washroom.
  • The complete set ensures compliance from specification to installation.
  • Certified TMV2 valves are used.
  • Compliant with Part M of the Building Regulations and Doc M.


Complete set includes:

  • Shower valve (DB3100), WRAS certified.
  • Shower head (DB3001), WRAS certified.
  • Shower arm (DB3060.200), WRAS certified.
  • Shower outlet (DB83073).
  • Shower hose (DB3041), WRAS certified.
  • Hand held shower head (DB3020).
  • Slider rail and holder (DB3090.450).
  • Shower curtain rail (BC5083-11).
  • Shower rail ceiling stay (BC5083-12).
  • Two shower curtains (BC5083-14).
  • 24 shower curtain hooks (BC5083-13).
  • Three 600 mm grab rails (BC5083-02).
  • 450 mm grab rail (BC5083-01).
  • Two hinged drop down rails (BC5023-07).
  • Back rest (BC5083-33).
  • Shower seat (BC5083-34).
  • Alarm pull chord (BC5083-121).
  • Two robe hooks (BC725).
  • Mirror 1000 x 400 mm (BC5083-101).

General information

Color

Silver

Other

Finish

Powder-coated

Brushed

Material

Stainless steel

Shape

Other

Warranty description

Five year

Uniclass

Pr_40_20_60_01 Accessible shower equipment packagesPrimary

CAWS

N13/14 Unisex accessible shower room equipment packages (Document M)

N13/312 Unisex accessible shower room equipment packages (Document M)

Specification data - Accessible shower equipment packages

Standard

In accordance with Approved Document M.

Form

Complete accessible shower Doc M package and fittings.

Material and colour

-

Seat

Plastics, dark grey.

Seat back

Plastics, dark grey.

Handrails

Stainless steel.

Water supply fittings

-

Shower fittings

Thermostatic shower mixer, lever-operated with hand held shower head.

Finish

Satin brushed.

Powder coated.

Operating control

Lever and temperature ring.

LRV

39-45%.

Guidance for specification option:

Contrast difference of 30 between the LRV of fixtures/fittings and surrounding surfaces to assist blind or partially sighted persons in navigating the washroom. Contact manufacturer for assistance.

Manufacturer guidance

Average LRV (stainless steel fittings).

BIM objects

Platform Compatible Version
Revit
-

1
