BauderGREEN PED Pedestal Support System - Adjustable Pedestals
Verified by manufacturer 22 hours ago
BauderGREEN PED NC UK non-combustible pedestals
BauderGREEN PED NC UK non-combustible pedestals
A range of adjustable pedestals for various applications, including flat roofs, heavy and frequent use, or flat tapered roofs and balconies.
Application
Various applications, including flat roofs, heavy and frequent use, or flat / tapered roofs and balconies.
Description
A range of adjustable pedestals for various applications.
BauderGREEN PED PB UK adjustable pedestals:
- A lightweight, adjustable pedestal designed for use on flat roofing. The simple pedestal with a wide range of accessories.
- The PB range can be used to achieve depths from 18 to 955 mm.
- Designed for use on flat roofs (as part of Bauder’s blue roof system).
- Suitable for use with paving, decking and gratings.
BauderGREEN PED DPH UK slope correcting pedestals:
- The DPH range can be used to achieve depths from 17 to 1070 mm.
- Designed for use on tapered roofs or where there is an uneven substrate.
- Suitable for use with paving, decking and gratings.

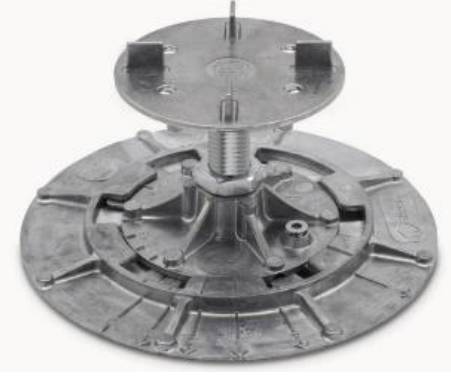

BauderGREEN PED NC UK non-combustible pedestals:
- A non-combustible adjustable pedestal designed for use on flat or tapered roofs and balconies.
- The NC pedestal can be used with a wide range of accessories. The NC range can be used to achieve depths from 33 to 395 mm.
- Designed for use on flat roofs (as part of Bauder’s blue roof system).
- Suitable for use with paving, decking and gratings.
General information
Color | Black Guidance for specification option: BauderGREEN PED PB and DPH pedestals Silver Guidance for specification option: BauderGREEN PED NC pedestals Manufacturer guidanceRefer to each colour for the specified pedestals |
Finish | Smooth Natural Zinc plated Guidance for specification option: BauderGREEN NC UK non combustible pedestals |
Material | Polypropylene Guidance for specification option: CPP Copolymer polypropylene - BauderGREEN DPH and PB pedestals Aluminium Guidance for specification option: BauderGREEN NC UK pedestals (base and head) Steel Guidance for specification option: BauderGREEN NC UK pedestals (stem) Manufacturer guidanceThe NC pedestals are made from non combustible Aluminium and Steel, whereas the DPH and PB are made from polypropylene. |
Shape | Circle |
Length | 200 mm Guidance for specification option: DPH UK base diameter. Head diameter is 150-155mm. 197 mm Guidance for specification option: PB UK base diameter. Head diameter is 170mm. 170 mm Guidance for specification option: NC UK base diameter. Head diameter is 90mm Manufacturer guidanceBase diameter |
Width | 200 mm Guidance for specification option: DPH UK base diameter. Head diameter is 150-155mm. 197 mm Guidance for specification option: PB UK base diameter. Head diameter is 170mm. 170 mm Guidance for specification option: NC UK base diameter. Head diameter is 90mm. Manufacturer guidanceBase diameter |
Height | Bespoke Guidance for specification option: BauderGREEN PED ranges can vary in height from: NC UK pedestals: 24mm to 395mm PB UK pedestals: 18 to 955mm DPH UK pedestals: 17 to 1070mm |
Warranty description | Manufacturer guidanceA comprehensive range of guarantee options are available. Please contact your local Bauder Area Technical Manager for more information. |
Uniclass |
SKU Code | GB50133110 to GB50133178, GB50133182 to GB50133570, GB501339000 to GB50133990 |
Specification data - Decking and paving pedestals
Classification data | |
Pedestal type | Adjustable. |
Grade | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Material | Aluminium based/ head. M16 zinc-plated steel stem. |
Adjustment | 24–395 mm. Guidance for specification option: Consult manufacturer for details. |
Accessories | Tabs. Shims. Slope correction. Edging products. Couplers. Joist support. Low build up. Wind uplift. Membrane protection. None. Manufacturer guidanceSpacers specified separately below. Consult manufacturer for further details. |
Spacers | Not required. 2 mm wide spacers. 3 mm wide spacers. 4 mm wide spacers. 5 mm wide spacers. 6 mm wide spacers. 8 mm wide spacers. Manufacturer guidance17 mm high. |
Diameter | Base: 170 mm; head: 90 mm. |
Operating temperature range | Manufacturer's standard. |
Performance characteristics | Slope correction: 0–5%. |
Reaction to fire | To BS EN 13501-1, Class A1. |
Sustainability data
Material | Polypropylene Guidance for specification option: CPP Copolymer polypropylene - BauderGREEN DPH and PB pedestals Aluminium Guidance for specification option: BauderGREEN NC UK pedestals (base and head) Steel Guidance for specification option: BauderGREEN NC UK pedestals (stem) Manufacturer guidanceThe NC pedestals are made from non combustible Aluminium and Steel, whereas the DPH and PB are made from polypropylene. |
Literature
BauderGREEN PED DPH UK Technical Data Sheet
BauderGREEN PED NC UK Technical Data Sheet
BauderGREEN PED PB UK Technical Data Sheet
