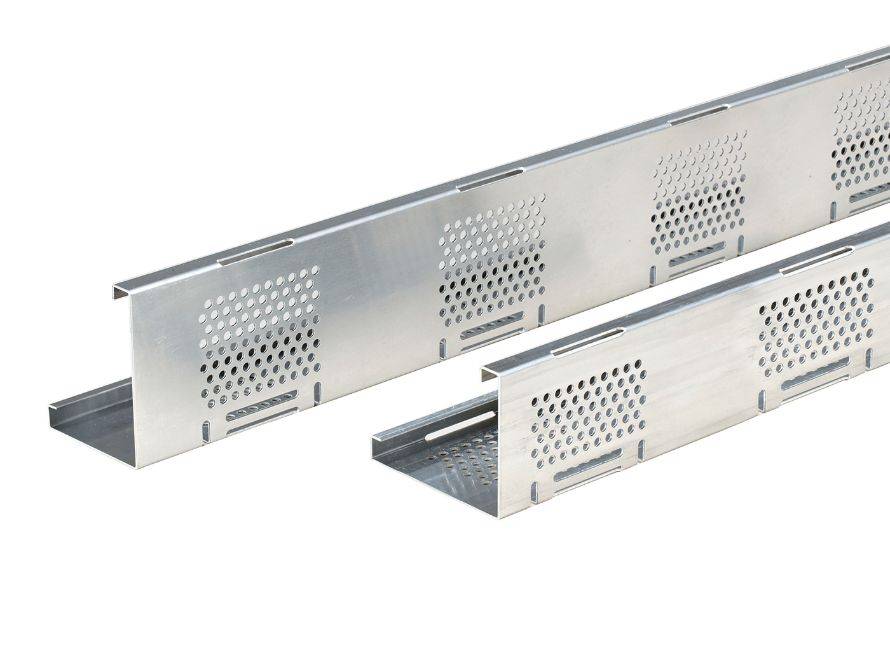

BauderGREEN Edge and Drainage Trims - Aluminium Edge Trims
Verified by manufacturer 5 days ago
KFL AL 100/80
KFL AL 100/80
A range of aluminium edge trims for use a) with the XF 301 sedum blanket, b) with Bauder substrate systems and c) to frame and contain the green roof or hard landscaping build up.
Application
- AL40 is for use with the XF 301 sedum blanket;
- AL 150 is for use with Bauder substrate systems;
- KFL AL 100/80 is for use to frame and contain the green roof or hard landscaping build up.
Description
A range of aluminium edge trims.
- AL 40 is for use with the XF 301 sedum blanket; the product retains the blanket at perimeter and allows the blanket to drain. There are joints and corner sections available.
- AL 150 is for use with Bauder substrate systems; the product retains the green roof build-up at the perimeter and allows drainage. It comes with joint sections for connecting lengths together and forming corners.
- KFL AL 100/80 is for use to frame and contain the green roof or hard landscaping build up; the trim can be fitted two ways to give 80 or 100 mm trim height.
General information
Color | Silver |
Material | Aluminium |
Shape | Rectangle |
Length | 2000 mm Guidance for specification option: Length of BauderGREEN AL 40 edge trim 2500 mm Guidance for specification option: Length of BauderGREEN AL 150 & BauderGREEN KFL AL 100/80 edge trims |
Width | 70 mm Guidance for specification option: Horizontal leg of AL 40 80 mm Guidance for specification option: Horizontal leg of KFL AL 100/80 (when vertical/upright leg is 100mm) 100 mm Guidance for specification option: Horizontal leg of KFL AL 100/80 (when vertical/upright leg is 80mm) 146 mm Guidance for specification option: Horizontal leg of AL 150 Manufacturer guidanceWidth/depth of horizontal leg that is fixed to the capping sheet / membrane |
Height | 40 mm Guidance for specification option: Height of vertical/upright leg of AL 40 80 mm Guidance for specification option: Height of vertical/upright leg of KFL AL 100/800 (when horizontal leg is 100mm) 100 mm Guidance for specification option: Height of vertical/upright leg of KFL AL 100/800 (when horizontal leg is 80mm) 150 mm Guidance for specification option: Height of vertical/upright leg of AL 150 Manufacturer guidanceHeight of vertical / upright leg. |
Uniclass | |
CAWS | Q30/560 Grass edging strips |
SKU Code | 7488 0100 |
Specification data - Metal edgings
Classification data | |
Material and finish | Aluminium. |
Colour | Silver. |
Edging | |
Form | Straight. |
Duty | Manufacturer's standard. |
Length (minimum) | 2500 mm. |
Size | 100 x 80 mm. Guidance for specification option: Width x height. |
Fixings | Guidance for specification option: Consult manufacturer for options and insert requirements. |
Weight | Manufacturer's standard. |
Thickness | 1.5 mm (nominal). |
Sustainability data
Material | Aluminium |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 35 % Guidance for specification option: 35–50%. |
Literature
BauderGREEN AL 150 - Technical Data Sheet
BauderGREEN KFL AL 100 80 - Technical Data Sheet
BauderGREEN AL 40 edge trim - Technical Data Sheet
