Bauder Thermoplan FPO Inverted Roof System - Loose Ballasted

Bauder Ltd

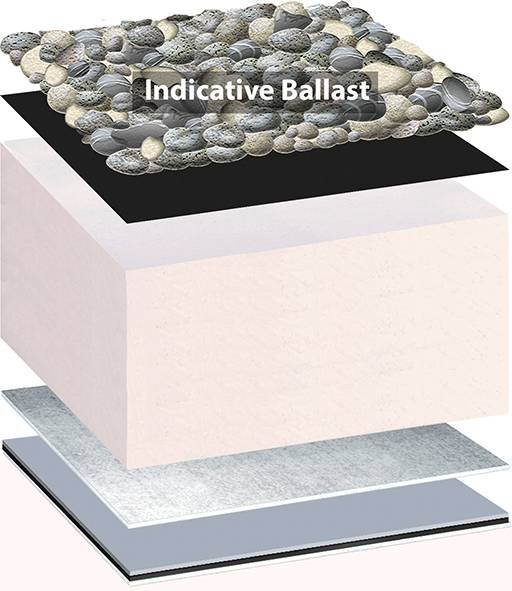

Loose ballasted, inverted roof, single ply membrane waterproofing system suitable for new build, refurbishment and extensive green roof applications and used primarily on concrete decks.

Jump to:
+44 (0)1473 257671 www.bauder.co.uk
Description

Loose ballasted, inverted, single ply waterproofing roof system suitable for new build, refurbishment and extensive green roof applications, and used primarily on concrete decks. A range of membrane colours and thicknesses available.

Features:

  • Free of harmful plasticisers, halogens and heavy metals
  • Membrane with tensile strength of >1000 N/50 mm
  • High quality polymers ensure membrane flexible at -30°C
  • Membrane has no inherent memory and will not shrink
  • High performance halogen-free fire retardant

Certifications:

  • BBA Certificate No 04/4120
  • FM Approved
  • EXT.F.AB rating to BS 476 Part 3 External Fire Exposure Roofs, If Ballasted with a minimum of 50 mm of aggregate it is deemed to be designated as F.AA
  • Root resistance certified under FLL guidelines

Environmental Credentials:

  • FPO membranes can be recycled at the end of their serviceable life.
  • Environmental Product Declaration - EPD-BAU-20130189-IBCC-EN

General information
Features

This BIM Object must be supported by a project specific specification from Bauder, incorporating system build-up, detail design and performance calculations if a full Bauder system guarantee is required. Please contact your local Bauder Representative or technical@bauder.co.uk

Finish

Smooth

Material

Flexible polyolefin (FPO) membrane

WarrantyDescription

Guarantee options could include ‘Product’, ‘Product and Workmanship’ and ‘Product, Workmanship and Design’ Guarantees. All guarantees available for this system are subject to the works being carried out in accordance with the Bauder specification and being installed by a Bauder Approved installer. For full details and further information regarding guarantees and alternative systems please contact your local Bauder Representative or technical@bauder.co.uk

Uniclass 2015
Ss_30_40_30_79 Single layer sheet inverted roof covering systemsPrimary
Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2017 1 1.2
Download now from NBS National BIM Library
