Bat Ridge Roost

Verified by manufacturer 3 days ago

Manthorpe Building Products Ltd

The Bat Ridge Roost provides a habitable roost space for small crevice-dwelling bat species found in the UK.

Jump to:
+44 (0)1773 303000 Website

Application

Suitable for use on mortared in verge and dry verge details in new build developments and refurbishments.

Description

The Bat Ridge Roost provides a habitable roost space for small crevice-dwelling bat species found in the UK.

Designed in association with the Bat Conservation Trust as part of their Roost Partnership scheme the product is a self-contained, externally mounted unit which offers no means of access for the bats to enter the roof space or the property.

The Bat Ridge Roost is optimised to work in conjunction with the Manthorpe SmartVerge Polypropylene handed and ambidextrous dry verge systems (alternatively, could also be used with third party dry verge, traditional verge tiles or mortared in verge details).

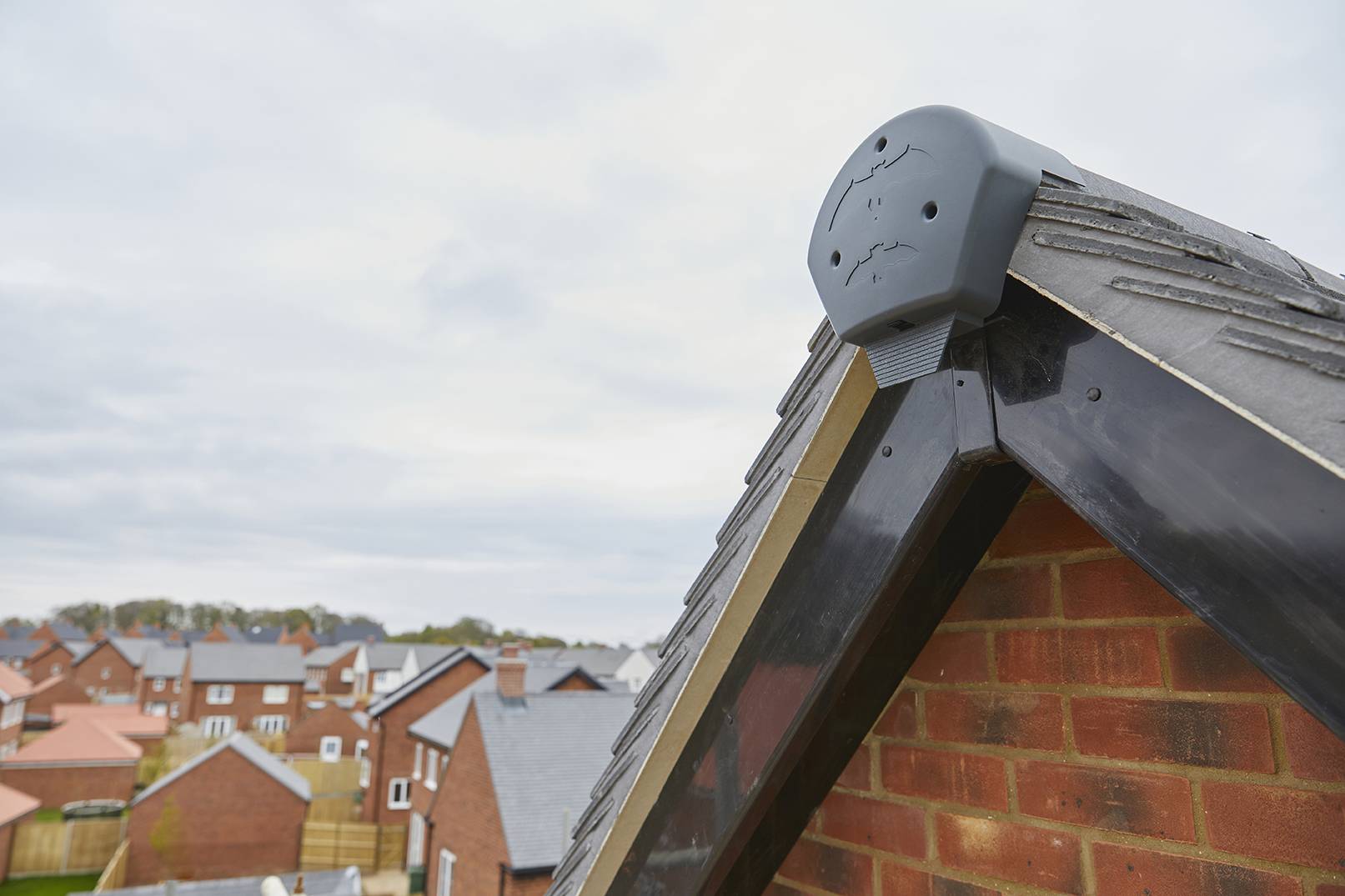

The dual purpose product, also acts as a ridge end cap, providing a durable and protected covered finish for most styles of round ridge tiles and is located at the end of the ridge tiles on a gable end.

The Bat Ridge Roost is made up of two units:

  1. Mounting plate
  2. Cover plate assembly (pre-assembled)

The cover plate assembly is a pre-assembled part which houses the bat habitat and insulation with three pre-fitted screws.

Features and benefits:

  • In partnership with the Bat Conservation Trust.
  • Enclosed habitat ensuring no bat access into the roof space.
  • Secure environment, draft free and thermally stable.
  • Easy to install and unobtrusive to the house owner.
  • Low profile suitable for new build and refurbishment.
  • For use on mortared in verge and dry verge details.
  • Wind Tunnel tested at the BRE.

General information

Color

Black

Brown

Grey

Red

Orange

Finish

Textured

Material

Polypropylene

Shape

Other

Length

141 mm

Width

264 mm

Height

276 mm

Uniclass

Pr_40_30_04_06 Bat boxesPrimary

CAWS

Q50/350 Nesting boxes

Q50/40 Nesting boxes

SKU Code

GBAT-R

Specification data - Bat boxes

Classification data

Format

Bat roosts for buildings.

Dimensions

141 x 264 x 276 mm.

Manufacturer guidance

Length x width x height.

Hole size

-

Manufacturer guidance

Consult manufacturer for details and insert requirements.

Material

Recycled plastics.

Guidance for specification option:

  • Cover plate: UV stabilised polypropylene.
  • Mounting plate: recycled polypropylene.
  • Habitat insulation: recycled polypropylene.

Treatment or finish

Textured.

Colours

Black.
Brown.
Terracotta.
Grey.
Antique red.

Base

Backplate.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Manufacturing plant location

Material

Polypropylene

Recyclability

Recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Expected Life

Lifetime

BIM objects

Platform Compatible Version
Revit
-

1
