Base unit cupboard with R / L hinge door in various widths.

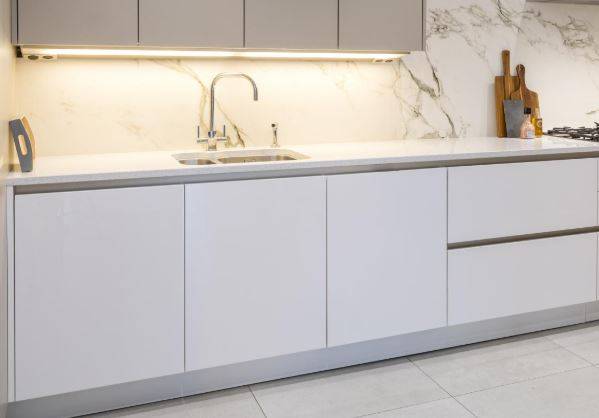

SieMatic S2, handle-less base unit cupboard with SieMatic soft close hinge, available in widths of 30cm, 40cm, 45cm, 50cm, 60cm. Available in height of 78cm. Available in depth of 35.4cm, 45cm, 61cm. Adjustable plinth legs -10/15/17/20cm. Internally, the carcass sides have Multimatic tracking and 2 adjustable shelves.
The carcass is made up of white, two-sided directly applied triple layer furniture board (emission class E1), 1.6 cm thick. The back wall is 3.0 mm thick hardboard covered with lacquer which protects against moisture. The carcase front edge is an ABS edge, the colour is preselected to match the door front colour but can be changed upon request or fitted with an aluminum coloured edge. All other carcase edges sealed with melamine edging. The carcass front edge is also fitted with a safety profile dust seal in white or grey.
Door styles available in the SieMatic colour system in laminate matt, laminate wood, laminate gloss, SimiLaque velvet-matt, SimiLaque high-gloss, Lacquer matt or gloss, veneer, metal.
ColorThe SieMatic colour system | - |
Finish | Laminate Veneer |
MaterialTriple layer furniture board | Similacquer Lacquer |
Shape | Rectangular unit |
Size | 780 x 610 x 500 mm 780 x 610 x 450 mm 780 x 610 x 400 mm 780 x 610 x 300 mm 780 x 610 x 600 mm |
WarrantyDescription | 5 year warranty |
Uniclass | |
CAWS | N11/310 Fitted base units N11/10 Fitted base units and wall units |
NBS BIM object standard
This BIM object has been authored to meet the requirements of the NBS BIM object standard.
Find out more about the NBS BIM object standard.
