Banio 40 GF Glass Panel installation (Shower enclosure hardware)

Banio 40 GF Glass Panel installation (Shower enclosure hardware)

Verified by manufacturer 5 months ago

Hawa Sliding Solutions AG

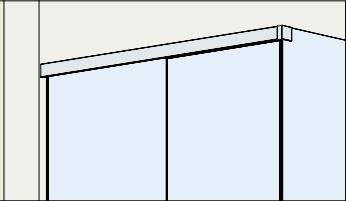

Recess solution with unilateral glass wall and one glass door up to 40 kg.

Jump to:
+41 44 787 17 17 www.hawa.com

Application

Suitable for:

  • Bathrooms.
  • All-glass doors.
  • All-glass showers.
  • Private living areas.
  • Interior furnishings.

Description

Recess solution with unilateral glass wall and one glass door up to 40 kg.


Features and benefits:

  • Soft closing systems in opening and closing direction.


Suitable for use with door panels:

  • Panel thickness: 8–10 mm.
  • Maximum panel width: 800 mm (1200 mm glass wall).
  • Maximum panel height: 2200 mm (2600 mm glass wall).
  • Maximum panel weight: 40 kg.


Components:

  • Wall mounting set.
  • Set for glass wall mounting (clip-on panel), plastic.
  • Panel, plastic, for 054.3059.071/ 072.
  • Running track, aluminium anodized.
  • Clip-on panel, aluminium.
  • Splash guard profile, plastic, transparent.
  • Screening seal, plastic, black, in coils.
  • Partial threshold, aluminium.
  • Handle set for one door, aluminium, anodized.
  • Hawa Banio 40 GF seal set, aluminium, anodized, with seals.

General information

Color

Grey

Finish

Anodized

Gloss

Material

Aluminium

Uniclass

Pr_30_36_36_23 Door track and running gearPrimary

CAWS

P21/350 Door track and running gear

P21/10 Door track and running gear

Specification data - Door track and running gear

Form

Aluminium, anodized, running track.

Mounting

Wall.

Running track

6000 mm.

Accessories/ Other requirements

Other accessories and spares are also available, consult manufacturer for details.

Not required.

Flush-mounted aluminium profiles, anodized, with seals.

Handle set for one door, aluminium, anodized.

Seal between fixed glass and sliding panel, grey silicone.

Seal for wall connection, grey silicone.
