Balustrade and Handrail System - Aluminium Balustrades

Verified by manufacturer 6 months ago

KES3816: 38 x 16 mm slat

Knotwood Variant:

Aluminium balustrade system is based on a simple slat design that provides flexibility with the arrangement and style.

Jump to:
+44 (0)800 131 3165 Website

Application

Suitable for commercial and residential building interiors and exteriors.

Description

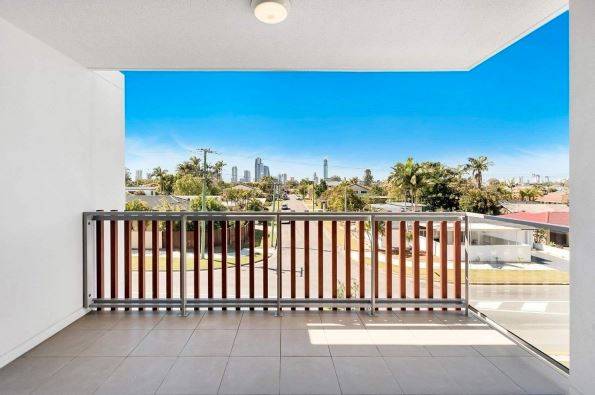

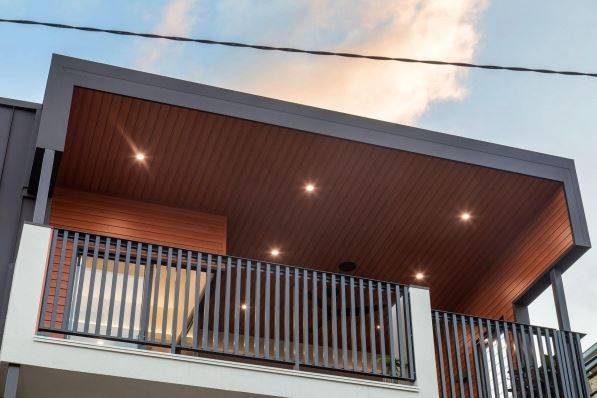

Knotwood’s balustrade systems are designed with all metal components. They can be used as a stand alone installation or can be integrated into any exterior design feature. The balustrade can be attached to any pre-existing floor or wall, or custom configured and applied to pre-made frames. The balustrades are based on a simple slat design system. The slats are simply inserted into a groove using spacers to achieve the desired look.


Features and benefits:

  • Non warping.
  • Colour stability - all colours have been rigorously tested to withstand the most extreme environments.
  • Weather resistant - Knotwood won't swell, grow mould or rust when exposed to wet conditions. Unlike wood it is protected from corrosion.
  • Non combustible.
  • Eco friendly - Knotwood uses VOC free coatings, lead free finishes and is 100% recyclable at the end of its lifespan.
  • Scratch resistant - a topcoat of exterior grade paint is baked on to provide resistance to chipping, flaking, blistering and scratching.
  • Insect proof - impervious to termites and ants, and doesn’t require chemical treatments to be protected from pests.
  • Low maintenance - specialized finishes have outstanding properties to ensure ease of maintenance and longevity of the surfaces.

General information

Color

White

Grey

Green

Cream

Beige

Show more

Finish

Powder-coated

Material

Aluminium

Shape

Other

Length

Bespoke

Width

38 mm

65 mm

100 mm

150 mm

Height

16 mm

Warranty description

15 year

Uniclass

Ss_25_60_05_05 Balustrade and guarding systemsPrimary

CAWS

L30/55 Proprietary balustrades

L30/560 Proprietary balustrades

Specification data - Balustrade and guarding systems

Uprights

Aluminium slats.

Infills

Aluminium small infill.

Guidance for specification option:

KESINFS.

Aluminium large infill.

Guidance for specification option:

KESINFL.

Rails

-

Handrails

Aluminium clip oval handrail.

Guidance for specification option:

KESBTFO.

Aluminium clip rectangular handrail.

Guidance for specification option:

KESBTFR.

Base rails

Aluminium clip base.

Guidance for specification option:

KESBBM.

Fixing to parent structure

Guidance for specification option:

Consult manufacturer and insert requirements.

Samples required

Not required.

Product samples and prototypes.

Size of slat

38 x 16 mm.

Channels

50 x 25 mm.

Guidance for specification option:

KESP1W5025.

30 x 30 mm.

Guidance for specification option:

KESP3030.

Posts

50 x 50 mm.

Guidance for specification option:

KESP2W5050: Post two way.

65 x 65 mm.

Guidance for specification option:

KESP2W6565: Post two way.

Corner posts

50 x 50 mm.

Guidance for specification option:

KESP2C5050: Post two way corner.

65 x 65 mm.

Guidance for specification option:

KESP2C6565EF: Post two way corner, external fix.

Colour

Grey Ash.

QLD Walnut.

Kwila.

Natural Oak.

Textura White.

Show more

Sustainability data

Country of product manufacture

Australia

Recyclability

100%

Literature

KES3816 38 x 16 mm slat

KES3816 38 x 16 mm slat

KES6516 65 x 16 mm slat

KES6516 65 x 16 mm slat

KES10016 100 x 16 mm slat

KES10016 100 x 16 mm slat

KES15016 150 x 16 mm slat

KES15016 150 x 16 mm slat

KESP1W5025 50 x 25 mm channel

KESP1W5025 50 x 25 mm channel

KESP3030 30 x 30 mm U channel

KESP3030 30 x 30 mm U channel

KESINFS Small infill

KESINFS Small infill

KESP2C5050 50 x 50 mm post

KESP2C5050 50 x 50 mm post

KESP2C6565EF 65 x 65 mm post

KESP2C6565EF 65 x 65 mm post

KESP2W5050 50 x 50 mm two way post

KESP2W5050 50 x 50 mm two way post

KESP2W6565 65 x 65 mm two way post

KESP2W6565 65 x 65 mm two way post

KESINFL Large Infill

KESINFL Large Infill

KESBBM Handrail base

KESBBM Handrail base

KESBTFO Handrail Oval (F)

KESBTFO Handrail Oval (F)

KESBTFR Handrail Square

KESBTFR Handrail Square

Knotwood Slats Brochure

Knotwood Slats Brochure

Knotwood Wood Effect colour brochure

Knotwood Wood Effect colour brochure
