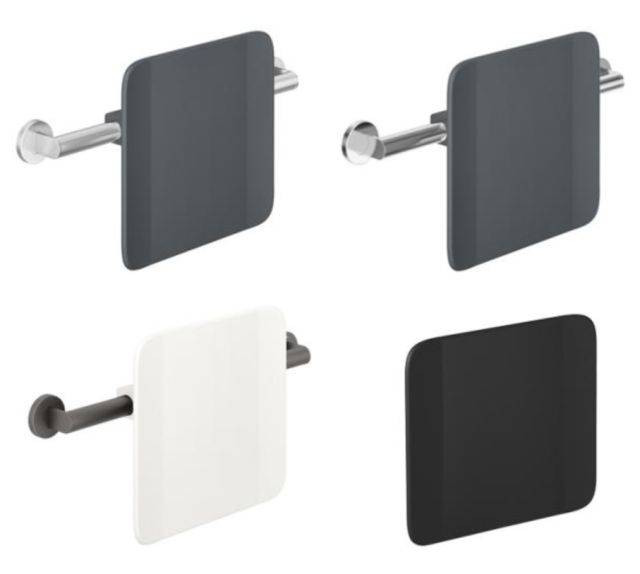

Backrests For WCs
Description

A range of backrests for use with WCs.

Features and benefits:

  • Serves as a back support for toilet users.
  • For wall mounting by rail or bracket.
  • Backrest made of synthetic material.
  • Non-corrosive and tested HEWI fixing material.
  • Fulfils the requirements of BS 8300:2009+A1:2010/ Doc M.

General information

Material

[Material, Rail/ bracket: Stainless steel; Backrest: Synthetic]

-

Uniclass 2015

Pr_40_20_76_98 WC pan backrestsPrimary

CAWS

N13/426 Backrests

Specification data - WC pan backrests

Product Reference

Backrest For WC (universal) Matt Powder Coated, black/ black – 900.51.91060 CV

Backrest For WC (universal) Matt Powder Coated, anthracite/ anthracite – 900.51.91060 AF

Backrest For WC (universal) Matt Powder Coated, white/ white – 900.51.91060 AS

Backrest Rail For WC Chrome/ anthracite grey – 900.51.90540 92

Backrest Rail For WC Chrome/ signal white – 900.51.90540 98

Backrest Rail For WC Matt Coated, matt black – 900.51.90560 CV

Backrest Rail For WC Matt Coated, black/black – 900.51.90560 CV

Backrest Rail For WC Matt Coated, dark grey pearl mica/ white – 900.51.90560 CD

Backrest Rail For WC Matt Coated, light grey pearl mica/ white – 900.51.90560 AX

Backrest Rail For WC Matt Coated, white/white – 900.51.90560 AS

Backrest Rail For WC Satin Stainless Steel/ anthracite grey – 900.51.905XA 92

Backrest Rail For WC Satin Stainless Steel/ signal white – 900.51.905XA 98

Product Options

Size:

- Backrests for WC (universal):

Overall (w x h x d): 350 x 330 x 141 mm.

- Backrest rails for WC:

  • Backrest (w x h x d): 350 x 330 x 150 mm.
  • Centre-to-centre (rail fixings): 478–578 mm, adjustable on site.
  • Rail diameter: 32 mm; tube thickness: 2 mm.

Material:

  • Rail/ bracket: Stainless steel.
  • Backrest: Synthetic.
