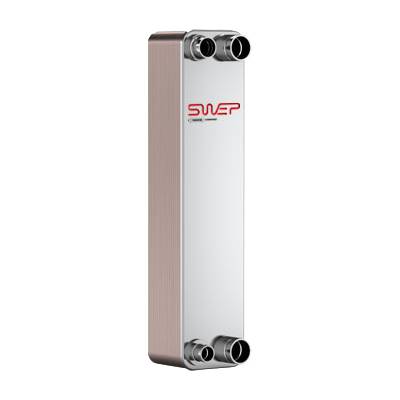

B85 - Plate heat exchanger

Application

Suitable as high capacity heat exchanger, where reduced footprint area is required.

Description

Plate heat exchanger suitable for demanding heat transfer requirements, due to the large port holes. The small pressing depth reduces the footprint and makes the B85 more compact with a higher performance than previous generations. The B85T is capable of handling a water flow rate up to 200 L/min.


Features and benefits:


  • High thermal performance.
  • Large port holes allow it to cope with high capacities.
  •  Small pressing depth reduces the footprint.
  • Capable of handling a water flow rate up to 200 L/min.



Links for calculations:

  • SSP Calculation Software: https://www.swep.net/support/ssp-calculation-software/.
  • International contact information: https://www.swep.net/company/contacts/.


General information

Shape

Rectangle

Color

Silver

Material

Stainless steel

Size

W x H.

119 x 526 mm

Uniclass

Pr_60_60_38_62 Plate heat exchangersPrimary

CAWS

T90/110 Heating system

T90/110 Heating system

Digital objects

Platform Compatible Version Certified to
IFC

IFC2X3

2

1.3
Revit

Revit 2016

3

2.0
Download now from NBS National BIM Library
