Application

Suitable for perimeter protection around office buildings, schools and commercial locations.

Description

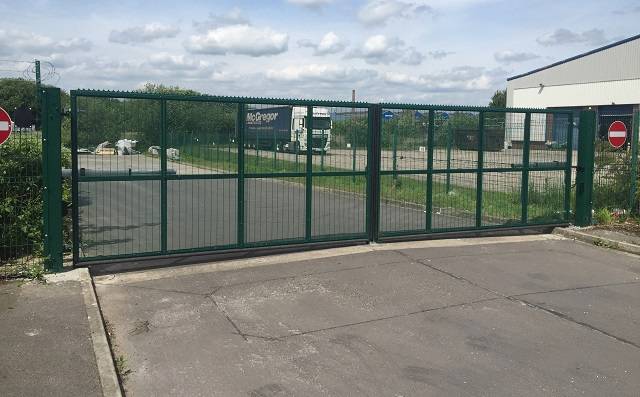

The B300 swing gate is available in single or double leaf, and is a complete entrance control solution.

The gate frame is constructed of square hollow section steel with a choice of welded-mesh, palisade or vertical bar infill. Adjustable, sealed bearing hinges prevent crushing hazards and enable the gate leaf to be opened 90°.

The gate can be locked using the magnetic lock installed as standard. Further security can be added with anti-climb devices such as spikes or razor barb. Other possible accessories include detection systems, motorised drive and access control equipment.

All gates are anti-corrosion treated before either being galvanized, polyester powder-coated or painting to a choice of BS or RAL colours. Special finishes are available to cope with harsh environmental conditions.

Features and benefits:

  • Approved for all relevant safety standards (EN and BS).
  • Sealed bearing safety hinges.
  • Single or double leaf (widths up to 8 m).
  • Easily integrated with access control/ security/ drive options.
  • Epoxy coated, anti-corrosive finish.

Applications:

Suitable for perimeter protection around office buildings, schools and commercial locations.

General information
Finish

Epoxy coated

Galvanized

Powder coating (80 μm thick; 80 buchholz hardness)

Material

Heavy steel (fully welded)

Uniclass 2015 Carbon steel gates (Pr_30_59_34_14)
Specification data
Product Reference

B300

Size -
Height

1800 mm

2000 mm

2400 mm

Width

4000–8000 mm, insert requirements.

Configuration

Double leaf

Single leaf

Finish

Epoxy coated

Galvanized

Powder coating (80 μm thick; 80 buchholz hardness)

Colour

RAL 6005 (moss green)

RAL 6009 (fir green)

RAL 7016 (anthracite grey)

RAL 9005 (jet black)

Special order

Other colours available upon request, consult manufacturer for details and insert requirements.

Infill

Palisade

Pallas

Vertical bar

Zenith 358

Drive type

Electro-hydraulic

Manual

Locking

Magnetic lock closed

Magnetic lock open

Only required if open for a long period of time.

Fixing (post foundation)

Base plate

Concrete

Accessories

None

Access control equipment

Anti-climbing devices

Spikes and razor barb available. Consult manufacturer for details and insert requirements.

Detection systems

Laser safety curtains for high-risk areas

Matching fence lines

Motorised drive

Sounders

Traffic lights

Warning signs

Standard product features

Technical characteristics:

  • Hinges: Sealed bearing.
  • Operating speed: 25–30 seconds.

Material:

Heavy steel (fully welded).

Certification:

  • Electrical: BS EN 60204-1; BS7671; BS EN 62061; BS EN 60439-1; BS EN 61439-1; BS EN 61439-2; BS EN 12978.
  • Mechanical: PD5304; BS EN ISO 12100; BS EN 60529; BS EN ISO 13849-1; BS EN 12453; BS EN 12604; BS EN 12444; BS EN 12635; BS EN 16005; BSEN 13241-1; BS EN 12605; BS EN 12445; BS EN ISO 13857.
  • Electromagnetic compatibility: BS EN 61000-6-1; BS EN 61000-6-3.
  • Hydraulic safety: BS EN ISO 4413.
  • Low voltage directive: 2006/95/EC.
  • Machinery directive: 2006/42/EC.
  • Electromagnetic compatibility: 2004/108/EC.
  • Pressure equipment directive: 97/23/EC.
  • CE marketing directive: 93/68/EC.
