>B< Press (Copper)
Compare variants

Application

Drinking water; hot water heaters; thermal solar systems; local and district heating; chilled and cooling water; rainwater; compressed air (classes 1 to 3 ISO 8573-1); industrial and processing water; vacuum piping; shipbuilding (PH 6.5 < 9.5).

Description

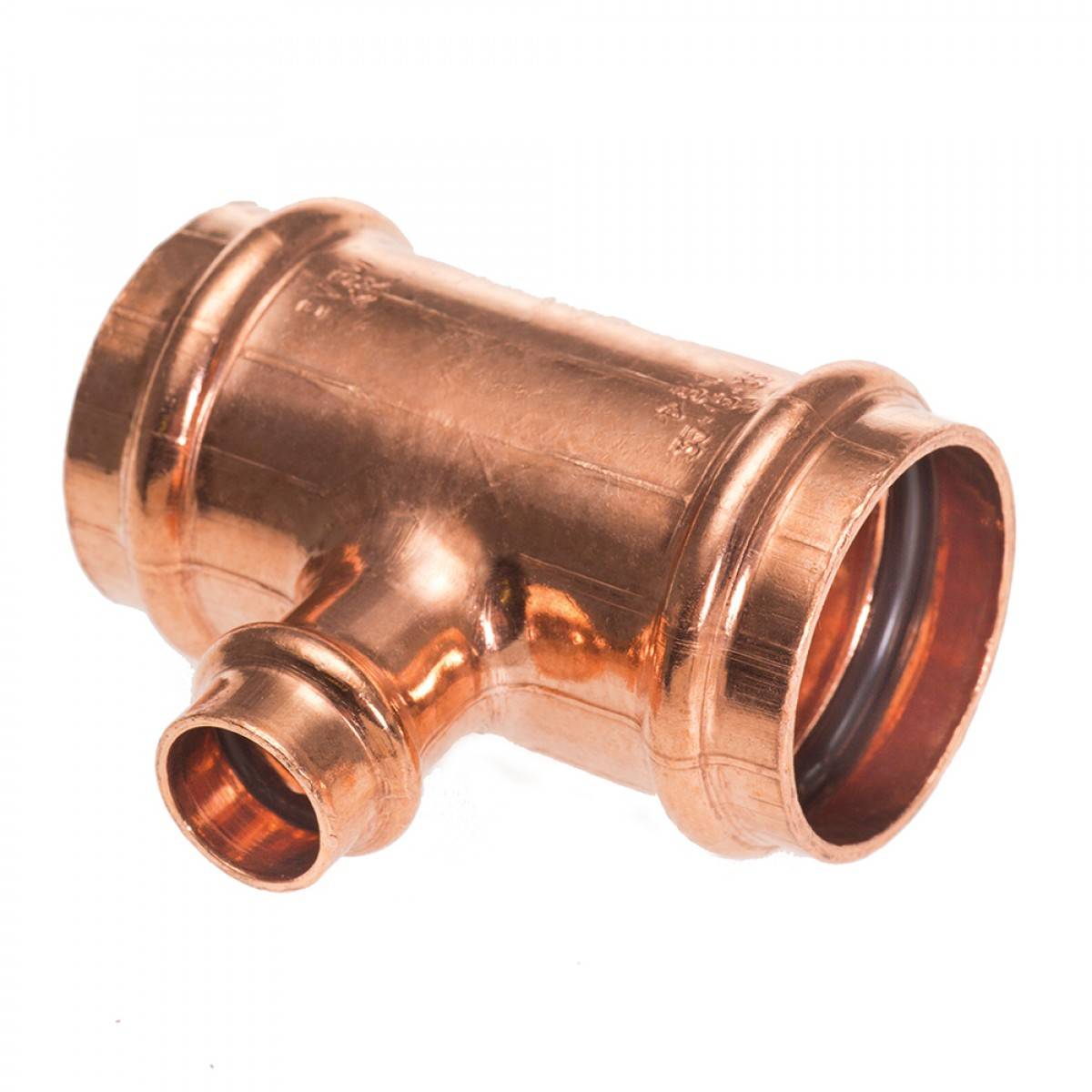

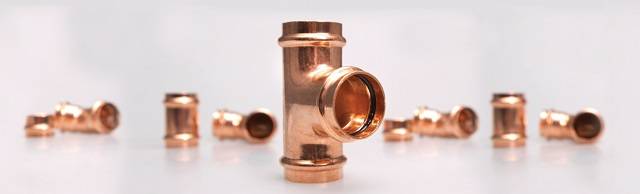

>B< Press fittings are quick and easy to install and are available in copper and copper alloy.


Features and benefits:

  • Reduced installation time and cost.
  • Flame-free connection - no hot works permit required.
  • Leak before press assists identification of unpressed joints.
  • Secure, permanent three-point press 12–54 mm*.
  • No soldering or brazing consumables required.
  • Compatible with a range of press tools and jaws: refer to manufacturer's technical brochure for more details.
  • Component materials:
  • Copper (EN 12165 CW024A) and copper alloy (EN 1982 CC499K) body.
  • Black EPDM O-ring.


For larger sizes, see the >B< Press XL range (specified separately).

General information

Color

Copper

Material

Copper

Copper (EN 12165 CW024A) and copper alloy (EN 1982 CC499K) body.

Rubber

Black EPDM O-ring.

Shape

Dependent on fitting.

-

WarrantyDescription

25 year

When professionally installed, used and maintained in accordance with >B< Press installation instructions, Conex Universal Ltd. guarantees that >B< Press fittings supplied by Conex Universal Ltd. will be free of material defects resulting from errors in manufacture, for 25 years from the date of first purchase by an end user. For full terms and conditions please refer to the Product Guarantee Statement.

Uniclass 2015

Pr_65_52_63_18 Copper pipeline fittingsPrimary

CAWS

S90/110 Mains cold water supply

S90/120 Storage cold water supply

S90/110 Mains cold water supply

S90/130 Instantaneous hot water supply

S90/120 Storage cold water supply

S90/140 Direct hot water storage supply

S90/130 Instantaneous hot water supply

S90/150 Indirect hot water storage supply

S90/140 Direct hot water storage supply

S90/150 Indirect hot water storage supply

S90/160 Rainwater/ greywater recycling system

Specification data - Copper pipeline fittings Enhanced data

Standards

-

Press fittings

To BS 8537; DVGW G5614; prEN1254-7,

Fittings

Insert requirements or drawing/ schedule reference number.

-

Diameter

Insert requirements or drawing/ schedule reference number.

-

Operating parameters

16 bar at temperatures of up to 110°C.

Approvals

ACS; ANTSZ; ATG; BSI Kitemark; Bureau Veritas; CSTB; DNV; DVGW; EMI; Institut za varilstvo; ITB; KIWA; KIWA SE; Lloyd's Register; PCT; PZH; SVGW; SZU; TYSK; WRAS;

ACS: France; ANTSZ: Hungary; ATG: Belgium; BSI Kitemark: UK; Bureau Veritas: Marine; CSTB: France; DNV: Germany; DVGW: Germany; EMI: Hungary; Institut za varilstvo: Slovenia; ITB: Poland; KIWA: Netherlands; KIWA SE: Sweden; Lloyd's Register: Marine; PCT: Russia; PZH: Poland; SVGW: Switzerland; SZU: Czech Republic; TYSK: Ukraine; WRAS: UK.

Digital objects

Platform Compatible Version Certified to
Revit
-

1

1

Download now from NBS National BIM Library

Third party certifications

  • WRAS
  • DVGW
  • KIWA
