Axim FS-8500 Series Floor Spring
Description

A range of universal floor springs designed for heavy weight doors, available in three strengths.

Features:

  • Suitable for left hand, right hand single and double action doors.
  • Full hydraulic control provided by two valve screws.
  • Fully adjustable for height, width and length.
  • Backcheck facility prevents damage to outward opening doors or where door wing is limited to 90°.

General information

Features

Suitable for left hand, right hand single and double action doors

Full hydraulic control provided by two valve screws

Fully adjustable for height, width and length

Backcheck facility prevents damage to outward opening doors or where door wing is limited to 90°

Uniclass 2015

Pr_30_36_36_29 Floor springsPrimary

CAWS

P21/14 Floor springs

P21/450 Floor springs

Specification data - Floor springs

Product Reference

FS-8511-00 Floor Spring

Size 1, no hold open.

FS-8511-90 Floor Spring

Size 1, hold open.

FS-8511-90, 105° Hold Open Floor Spring

Size 1, hold open available on request.

FS-8512-00 Floor Spring

Size 2, no hold open.

FS-8512-90 Floor Spring

Size 2, hold open.

FS-8512-90, 105° Hold Open Floor Spring

Size 2, hold open available on request.

FS-8513-00 Floor Spring

Size 3, no hold open.

FS-8513-90 Floor Spring

Size 3, hold open.

FS-8513-90, 105° Hold Open Floor Spring

Size 3, hold open available on request.

Accessories

None

7081 Cover caps for bottom arm

7083 Cover caps for top centre

7481 Bottom arm

7483 Top centre

Standard product features

Size (l x w x d):

306 x 108 x 40 mm.

Door weight (maximum):

120 kg.

Door width:

  • Size 1 (light spring strength): Up to 800 mm (16 Nm closing force).
  • Size 2 (medium spring strength): Up to 1150 mm (25 Nm closing force).

Hydraulic control:

  • Back check range: 85–130°.
  • Closing range: 130-15°.
  • Latching range: 15-0°.

Product Options

Product reference:

  • Size 1 and 3 floor springs are not always held in stock and are subject to special order and delivery.
  • Size 2 floor springs are stock items.
  • 105° hold open floor springs are available upon request.

Accessories:

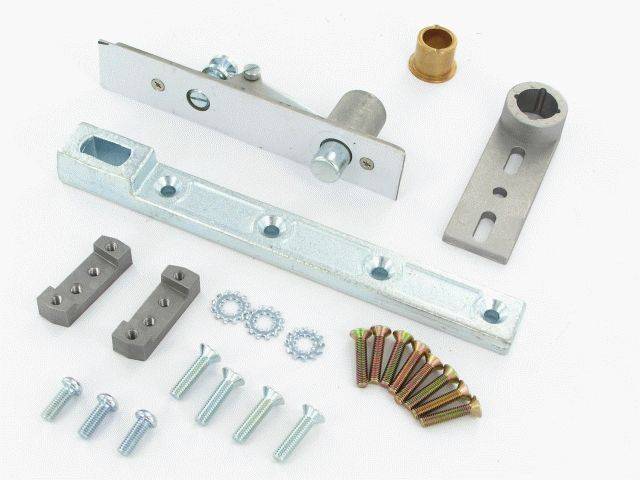

Top centre and bottom arm are available for single action timber doors.
