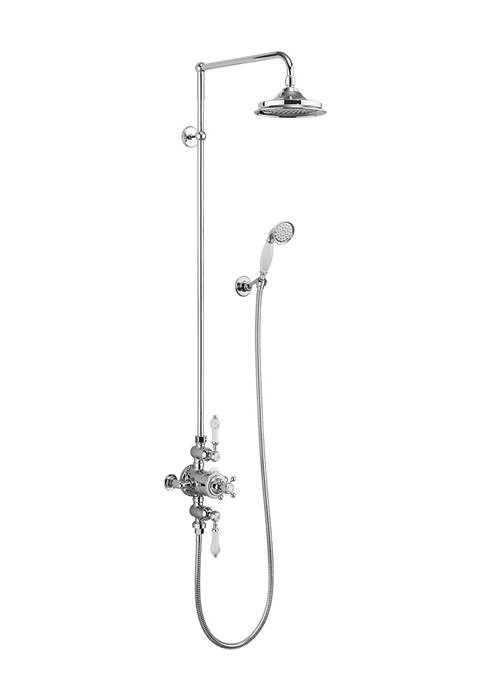

Avon Thermostatic Exposed Shower Valve Dual Outlet, Rigid Riser, Swivel Shower Arm, Handset & Holder with Hose with 12" Rose

Verified by manufacturer 11 months ago

BAF3S-V60 - Chrome-plated, white accents

Burlington Bathrooms Variant:

Brass thermostatic shower kit with 12 inch rose.

Jump to:
+441322422743 www.burlingtonbathrooms.com

Application

Suitable for all traditional washroom and bathroom applications.

Description

Thermostatic exposed shower valve dual outlet, rigid riser, swivel shower arm, handset and holder with hose and 12 inch rose.


Features and benefits:

  • Available in two finishes.
  • Three accent colours available.
  • Traditional brass body, Claremont handle, with ceramic levers.
  • Adjustable wall bracket, 1500mm shower hose and handset with ceramic handle.
  • ∅18 mm vertical brass shower riser with ∅15 mm hot and cold inlet .
  • 355 mm adjustable swivel shower arm.
  • The shower head has anti-limescale silicon nipples.
  • V22 Extended vertical riser is available if required and can be ordered as an option.

General information

Color

Black

Accents

Cream

Accents

Silver

White

Accents

Finish

Chrome

Nickel

Polished

Material

Brass

Size

473 x 236 x 1156 mm

856 x 66 x 60 mm

350 x 350 x 130 mm

WarrantyDescription

15 year

Uniclass

Pr_40_20_87_75 Shower fittings packagePrimary

CAWS

N13/42 Shower mixer valves

N13/375 Shower units

N13/41 Shower heads

N13/40 Shower units

Specification data - Shower fittings package

Approval

Water Regulations Advisory Scheme (WRAS)-approved.

Form

Wall-mounted shower mixer valve, flexible hose, spray handset, rose and sliding rail kit.

Materials

-

Body

Brass.

Finish and colour

Chrome-plated, white accents.

Flow rate (maximum)

30.14 L/min. at 3 bar.

Digital objects

Platform Compatible Version Certified to
Revit
-

1

2.1
IFC
-

1

2.1
Download now from NBS National BIM Library
