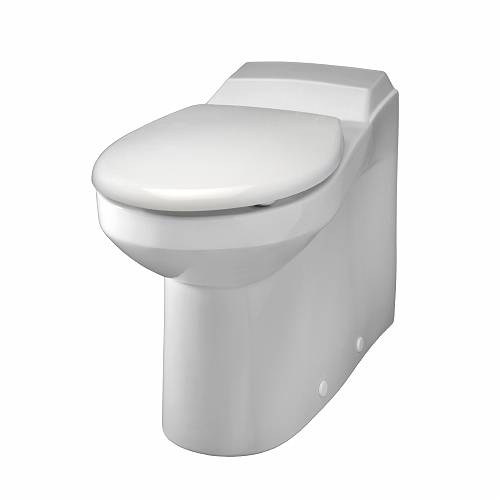

Name: Avalon: Rimfree Back to Wall 700 mm Seat & Cover - WC suites
Brand: 5jEomKVrZXgrrWZd6TNu25
SKU: gsrXAvm7VD2QpdvwFTRnQS

Color

Blue RAL 5011, Grey RAL 7005, White RAL 9003

Material

Plastics

WarrantyDescription

2 years Accessories and fittings

Uniclass 2015

Pr_40_20_93_97 WC suitesPrimary

CAWS

N13/10 WC pans and flushing arrangements

N13/300 WCs and cisterns

Product Reference

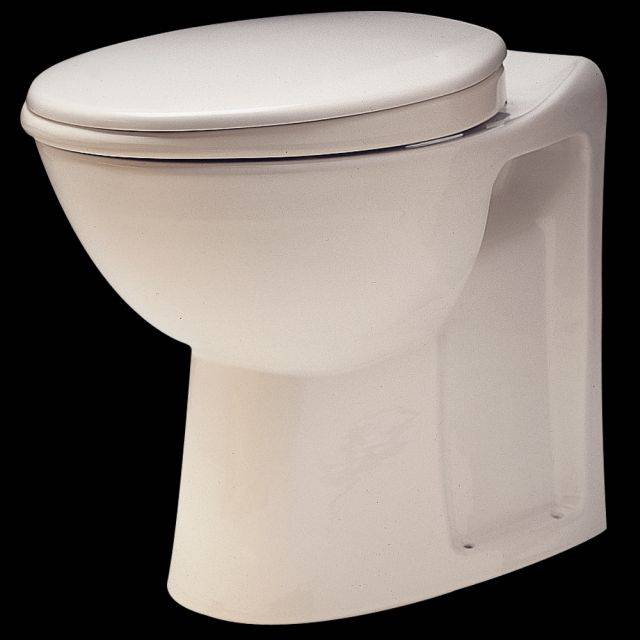

Avalon back to wall WC suite

Pan

AV1168WH

Avalon BTW, horizontal outlet

Seat and cover

AV7840WH

Avalon 25 mm.

Pan connector

WF1240WH

P trap outlet.

WF1241WH

S or P trap.

Cistern

Type

CX9560XX

Concealed cistern, single flush, lever, SSIO, 6L chrome plated lever up to 114 mm duct.

Operation

Chrome plated lever handle as standard

Wall thicknesses up to 114 mm.

CF3109CP

Spatula lever for 114 mm wall depth.

CF3017CP

Chrome plated extended duct lever handle. For wall thicknesses up to 340 mm.

CF3018CP

Lever handle, chrome plated. For wall thicknesses up to 225 mm.

CF9002CP

Air button, dual flush, small button, chrome plated. For 3-40 mm panel depth.

CF9022CP

Air button, dual flush, plastic large plate 150 x 230 mm chrome plated. Minimum 75 mm panel depth.

CF9032CP

Air button, dual flush, mini plate 80 x 124 mm chrome plated. Minimum 65 mm panel depth.

Accessories

25 mm high seat ring with chrome plated hinges ref AV7881WH

25 mm high seat ring with chrome plated hinges ref AV7881BE

Cover only, ref AV7842WH

Platform

Compatible

Version

Certified to

Revit

Revit 2016

1.3

Avalon: Rimfree Back to Wall 700 mm Seat Ring - WC suites

Product Reference	Avalon back to wall WC suite
Pan	AV1168WH Avalon BTW, horizontal outlet
Seat and cover	AV7840WH Avalon 25 mm.
Pan connector	WF1240WH P trap outlet. WF1241WH S or P trap.
Cistern	-
Type	CX9560XX Concealed cistern, single flush, lever, SSIO, 6L chrome plated lever up to 114 mm duct.
Operation	Chrome plated lever handle as standard Wall thicknesses up to 114 mm. CF3109CP Spatula lever for 114 mm wall depth. CF3017CP Chrome plated extended duct lever handle. For wall thicknesses up to 340 mm. CF3018CP Lever handle, chrome plated. For wall thicknesses up to 225 mm. CF9002CP Air button, dual flush, small button, chrome plated. For 3-40 mm panel depth. CF9022CP Air button, dual flush, plastic large plate 150 x 230 mm chrome plated. Minimum 75 mm panel depth. CF9032CP Air button, dual flush, mini plate 80 x 124 mm chrome plated. Minimum 65 mm panel depth.
Accessories	25 mm high seat ring with chrome plated hinges ref AV7881WH 25 mm high seat ring with chrome plated hinges ref AV7881BE Cover only, ref AV7842WH

Avalon: Rimfree Back to Wall 700 mm Seat & Cover - WC suites
