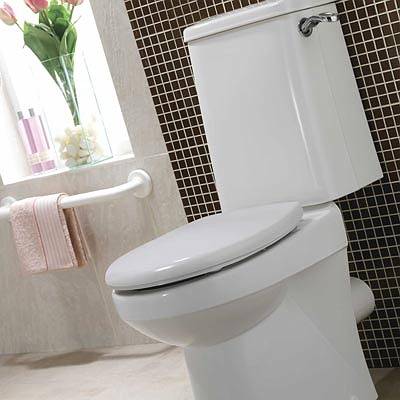

Name: Avalon: Close Coupled Rimfree Seat & Cover - WC suites
Brand: 5jEomKVrZXgrrWZd6TNu25
SKU: vvyw4izkm5nMDA9xXwmPgL

Color

Grey, Blue, White

Material

Plastics

WarrantyDescription

2 years Accessories and fittings

Uniclass 2015

Pr_40_20_93_97 WC suitesPrimary

CAWS

N13/10 WC pans and flushing arrangements

N13/300 WCs and cisterns

Product Reference

Avalon back to wall WC suite, rimless

Pan

AV1968WH

Avalon BTW, horizontal outlet.

Seat and cover

AV7886GY

Seat ring top fix with stainless steel hinges.

AV7886WH

Seat and cover with stainless steel top fix hinges.

AV7886BE

Seat and cover with stainless steel top fix hinges.

AV7886RD

Seat and cover with stainless steel top fix hinges.

Pan connector

WF1240WH

P trap outlet.

WF1241WH

S or P trap.

Cistern

Type

CX9564XX

Concealed cistern, dual flush, lever, SSIO, 6/4 L. Chrome plated lever up to 114 mm duct - with delayed action inlet valve.

Operation

CF3109CP

Spatula lever for 114 mm wall depth.

CF3017CP

Chrome plated extended duct lever handle. For wall thicknesses up to 340 mm.

CF3018CP

Lever handle, chrome plated. For wall thicknesses up to 225 mm.

CF9002CP

Air button, dual flush, small button, chrome plated. For 3-40 mm panel depth.

CF9022CP

Air button, dual flush, plastic large plate 150 x 230 mm chrome plated. Minimum 75 mm panel depth.

CF9032CP

Air button, dual flush, mini plate 80 x 124 mm chrome plated. Minimum 65 mm panel depth.

Platform

Compatible

Version

Certified to

Revit

Revit 2016

1.3

Avalon: Rimfree Back to Wall 700 mm Seat & Cover - WC suites

Product Reference	Avalon back to wall WC suite, rimless
Pan	AV1968WH Avalon BTW, horizontal outlet.
Seat and cover	AV7886GY Seat ring top fix with stainless steel hinges. AV7886WH Seat and cover with stainless steel top fix hinges. AV7886BE Seat and cover with stainless steel top fix hinges. AV7886RD Seat and cover with stainless steel top fix hinges.
Pan connector	WF1240WH P trap outlet. WF1241WH S or P trap.
Cistern	-
Type	CX9564XX Concealed cistern, dual flush, lever, SSIO, 6/4 L. Chrome plated lever up to 114 mm duct - with delayed action inlet valve.
Operation	CF3109CP Spatula lever for 114 mm wall depth. CF3017CP Chrome plated extended duct lever handle. For wall thicknesses up to 340 mm. CF3018CP Lever handle, chrome plated. For wall thicknesses up to 225 mm. CF9002CP Air button, dual flush, small button, chrome plated. For 3-40 mm panel depth. CF9022CP Air button, dual flush, plastic large plate 150 x 230 mm chrome plated. Minimum 75 mm panel depth. CF9032CP Air button, dual flush, mini plate 80 x 124 mm chrome plated. Minimum 65 mm panel depth.
