Avalon: Close Coupled Cistern BSIO 6 or 4L
Verified by manufacturer over a year ago
AV2661WH: Avalon/ Sola Close Coupled Cistern, Lever BSIO, 6 or 4 L
AV2661WH: Avalon/ Sola Close Coupled Cistern, Lever BSIO, 6 or 4 L

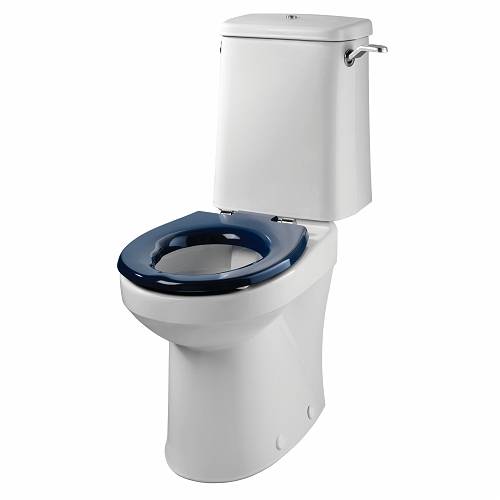

A close coupled cistern toilet.
Application
Suitable for domestic and commercial applications.
Description
Close coupled cistern toilet.
Features and benefits:
- Comes complete with chrome plated spatula lever.
General information
Color | White |
Material | Vitreous china |
Shape | Other |
Warranty description | 25 year Guidance for specification option: Ceramic products (excluding accessories and fittings), steel and acrylic baths |
Uniclass | |
CAWS | N13/10 WC pans and flushing arrangements N13/300 WCs and cisterns |
Specification data - WC cisterns
Standard | To BS EN 14055, Class 2. |
Form | Close coupled. |
Operation | Lever handle. |
Materials | |
Body | Vitreous china. |
Finish and colour | White. |
Capacity | 6 L.4 L. |
Integral accessories | None. |
Cistern | Close coupled. Guidance for specification option: BSIO. |
Height | 460 mm. |
Width | 355 mm. |
Depth | 175 mm. |
Weight | 12.50 kg. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 2 |
