Application

Suitable for maintaining security, smoke and fire zones. Retrofitted with existing doors.

Description

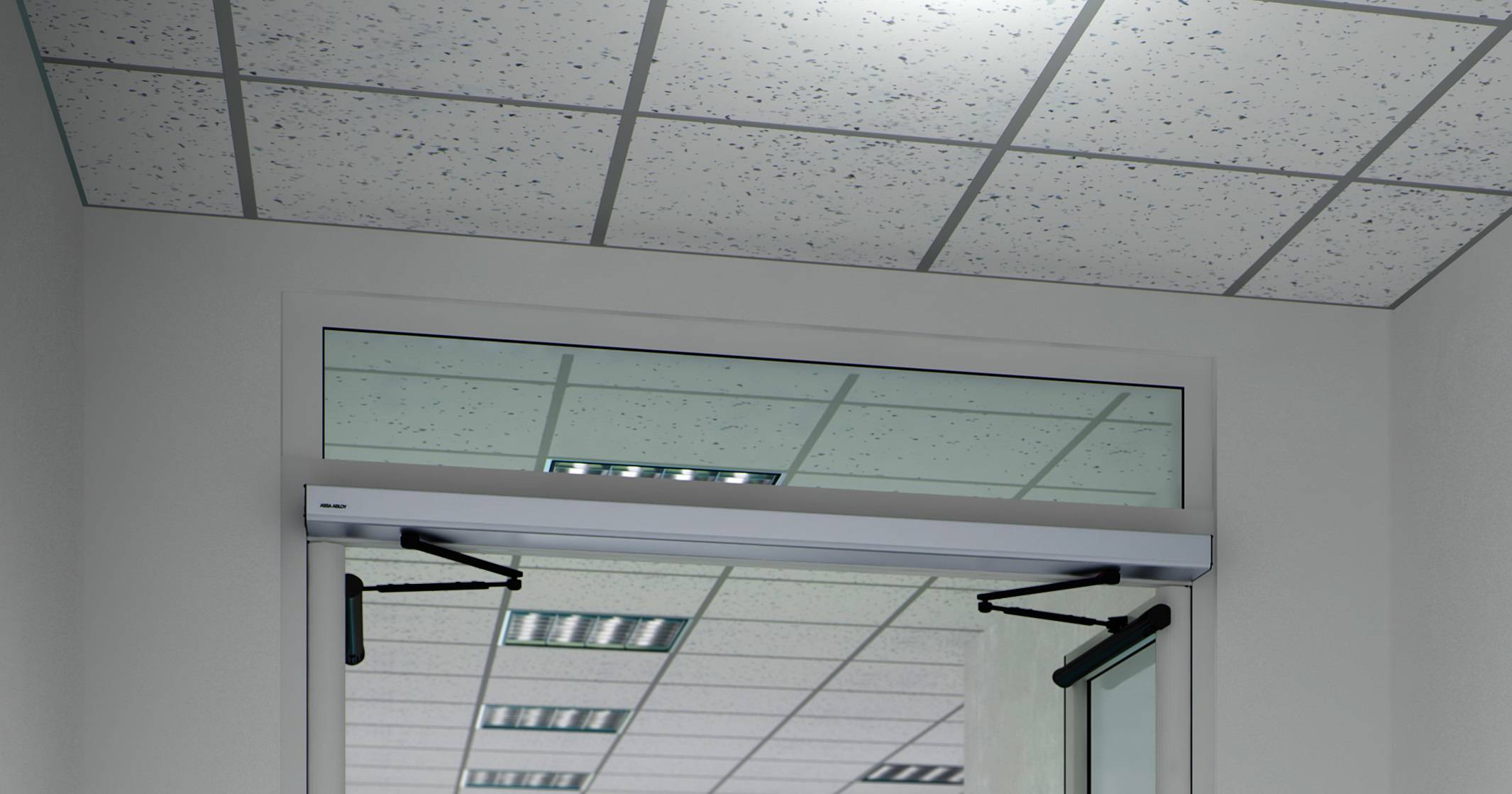

Automatic swing door opener suitable for internal and external applications including inward opening doors with a need to open outwards in an emergency. It ensures minimal energy consumption for optimal door performance. It is safe to use for all, despite age and physical ability. In case of an obstruction by a person or object, the obstruction control ensures stop on stall and reverse operation.

The ASSA ABLOY SW300 Swing Door Opener is fully compliant with European standards and fire approved, making it ideal for creating and maintaining security, smoke and fire zones. An entrance equipped with a ASSA ABLOY SW300 opener is always accessible due to battery backup. The ASSA ABLOY SW300 also monitors the battery for power and function, and gives an electronic indication if it is not working properly and needs to be replaced.

The opener is reliable during all weather conditions as it is not affected by stack pressure and wind load when opening and/ or closing. For a safe and quick exit, the ASSA ABLOY SW300 can easily be manually opened, despite extended closing torque, due to sensor detection ensuring lowest manual opening force. In addition to the standard version, there is a Double Acting (DA) function with possibility for manual opening in both directions with automatic reset.

Features and benefits:

  • Minimal energy consumption.
  • Safe to use for all.
  • Surface mounted.

Application:

Suitable for maintaining security, smoke and fire zones. Retrofitted with existing doors.

General information

Finish

Anodized

Material

Aluminium

Size

840 x 148 x 70 mm (l x d x h)

Uniclass 2015

Pr_30_36_59_15 Controlled door closersPrimary

CAWS

P21/12 Overhead door closers

P21/410 Overhead door closers

Specification data - Controlled door closers

Product Reference

Automatic Swing Door Opener – ASSA ABLOY SW300 Universal Swing Door Operator

Standard

European standards and fire approved

Classification grades (minimum)

-

Suitability for use on fire and smoke doors

Grade 1 - suitable for use with fire doors

Form

Surface mounted single

Surface mounted double

Closer functions

Pull

Push

Double action swing

Materials and finishes

-

Casings

Anodized aluminium

Colour

Silver

Powder coated RAL

Standard product features

Colour:

Silver or powder coated RAL.

Features:

Minimal energy consumption, safe to use for all and surface mounted.

Finish:

Anodized.

Material:

Aluminium.

Size:

840 x 148 x 70 mm (l x d x h).
