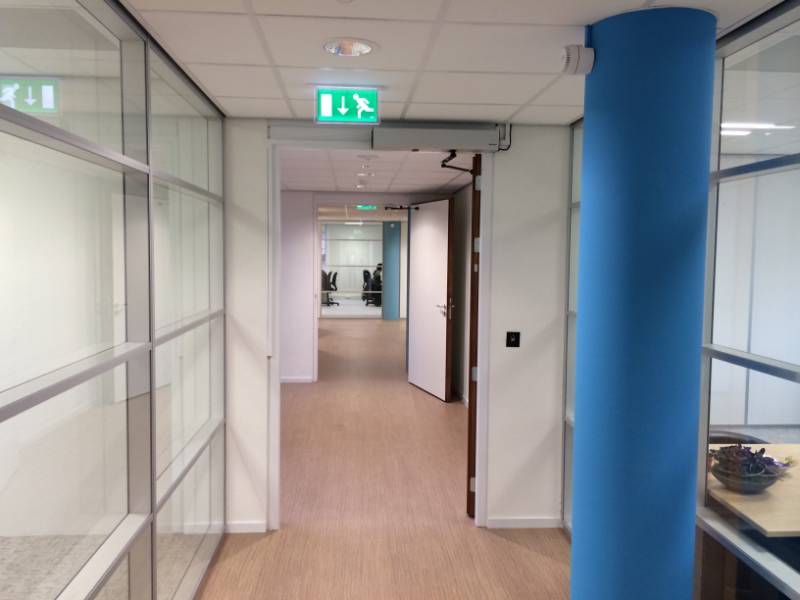

Automatic Swing Door Opener - ASSA ABLOY SW200 Normal to Heavy Duty - Automatic Swing Door

Verified by manufacturer 3 months ago

FAAC Entrance Solutions UK

Automatic swing door opener suitable for internal and external applications to single and double doors.

Jump to:
BOS
+44 (0)333 006 3443 Website

Application

Designed for use on all types of internal and external doors in new and retrofit applications. Can be retrofitted with existing doors.

Description

Automatic swing door opener suitable for internal and external applications to single and double doors. Designed for both concealed and surface mount. Two main models are available, ASSA ABLOY SW200 OHC for concealed installation with direct drive onto the door pivot point and ASSA ABLOY SW200 for surface installation where the door is operated by an arm system. The opener can be used for both single and double-leaf doors and is entirely suitable for the heaviest duty applications.

The opener for concealed installation (ASSA ABLOY SW200 OHC) gives, door design permitting, the possibility to use the built-in panic system. In an emergency situation the door can always be opened in the opposite direction by simply pushing against it. The opener acts as a door closer upon loss of electric power. Silent and strong, both models work electro-mechanically. The opening is performed by motor power and the closing by motor and spring power. The control unit with integrated microprocessor is designed for plug-in connection. The ASSA ABLOY SW200 opener is tailored to different doors and different customer requirements. The motor, drive transmission and control unit are combined into a compact unit, mounted inside an aluminium header with integrated access cover.

The concealed model ASSA ABLOY SW200 OHC is self-supporting and can be integrated into the complete frame and door assembly. This can be done during the manufacturing of the door frame.

The SW200 OHC can also be fitted between walls or posts and can be supplied in lengths to fit the width of the complete door/side screen package, or extend the full width of a corridor. The opener is connected to the door leaf with a steel drive arm bolted within the top rail. The surface-applied model SW200 is connected to the door leaf with a pushing or pulling arm system.


Features and benefits:

  • 180° opening.
  • Can be used for both single and double-leaf doors.
  • Suitable for the heaviest duty applications.

General information

Color

Clear

Guidance for specification option:

Cover.

Silver

Other

Finish

Anodized

Material

Aluminium

Length

716 mm

Width

130 mm

Height

110 mm

Uniclass

Pr_30_36_59_15 Controlled door closersPrimary

CAWS

P21/410 Controlled door closers

Specification data - Controlled door closers

Standard

To EN 16005.

Guidance for specification option:

  • EN 60335-2-103.
  • IEC 60335-1.
  • IEC 60335-2-103.
  • UL 325.
  • UL 228.
  • UL 10C.
  • EN 1634-1.
  • ANSI/BHMA A156.19.

Classification grades (minimum)

-

Category of use

Grade 4.

Guidance for specification option:

 Closing doors from 180°.

Form

SW200 OHC -1.

Guidance for specification option:

For single doors concealed overhead installation.

SW200 OHC -2.

Guidance for specification option:

For double doors concealed overhead installation.

SW200-1-A.

Guidance for specification option:

For single doors surface installation.

SW200-2.

Guidance for specification option:

For double doors surface installation

Closer functions

Not required.

Pulling.

Guidance for specification option:

Opener installed on the pull side of the door.

Pushing.

Guidance for specification option:

Opener installed on the push side of the door.

Materials and finishes

-

Casings

Anodized aluminium.

Colour

Silver.

RAL.

Guidance for specification option:

Other paint finishes optional.

Product Reference

Automatic Swing Door Opener - ASSA ABLOY SW200 Normal to Heavy Duty

Sustainability data

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

0.01 kg CO₂ eq/unit

Self declared

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

Automatic Swing Door SW200

Automatic Swing Door SW200
