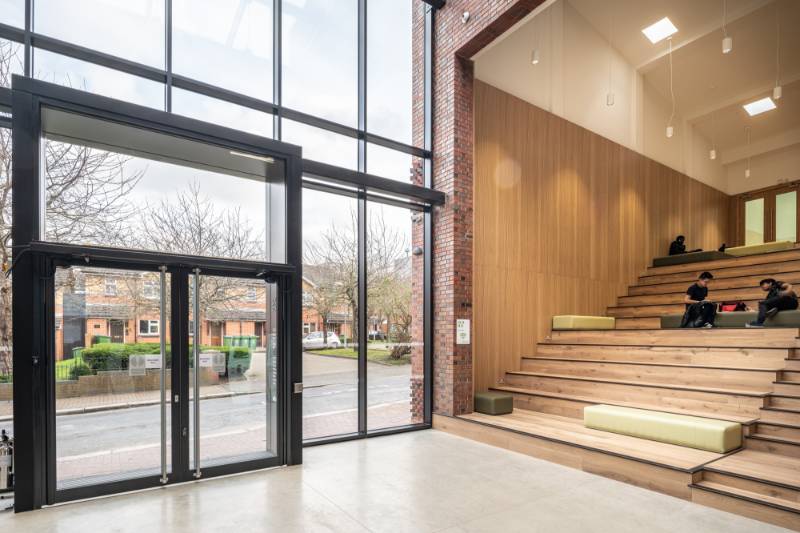

Automatic Swing Door Opener - ASSA ABLOY SW150 Universal Swing Door Operator

Verified by manufacturer 3 months ago

FAAC Entrance Solutions UK

Automatic swing door opener.

Jump to:
BOS
+44 (0)333 006 3443 Website

Application

Suitable for maintaining security, smoke and fire zones. Retrofitted with existing doors.

Description

Automatic swing door opener.


Features and benefits:

  • Minimal energy consumption.
  • Safe to use for all.
  • Colour options include silver or powder coated RAL.

General information

Color

Silver

Other

Finish

Anodized

Material

Aluminium

Shape

Other

Length

840 mm

Width

148 mm

Height

70 mm

Uniclass

Pr_30_36_59_15 Controlled door closersPrimary

CAWS

P21/12 Controlled door closers

P21/410 Controlled door closers

Specification data - Controlled door closers

Standard

-

Manufacturer guidance

European standards and fire approved.

Classification grades (minimum)

-

Suitability for use on fire and smoke doors

Grade 1.

Guidance for specification option:

 Suitable for use with fire doors.

Form

Surface mounted single.

Surface mounted double.

Closer functions

Push.

Pull.

Materials and finishes

-

Casings

Anodized aluminium.

Colour

Silver.

Powder coated RAL.

Power supply

100—240 VAC +10/-15%, 50/60 Hz.

Guidance for specification option:

Mains fuse max 10A (building installation).

Power consumption

300 W.

Voltage

24 V DC, max. 700 mA.

Manufacturer guidance

Auxiliary voltage.

Battery capacity

24 V DC.

Manufacturer guidance

Monitored battery backup unit

Locking

Electromechanical locking connection - 12 V DC, max. 1200 mA.

Electromechanical locking connection - 24 V DC, max. 600 mA.

Ambient temperature

-20°C to +45°C.

RelativeHumidity

95%.

Manufacturer guidance

Non-condensing.

Ingress protection

IP20.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit
-

1

Literature

Automatic Swing Door SW150

Automatic Swing Door SW150
